Sports Broadcast
Studio
LED Display
A professional sports broadcast studio LED display designed specifically for broadcasting events, news editing rooms, and virtual production environments. Featuring ultra-fine pixel spacing, high contrast for perfect color reproduction, seamless stitching, and silent operation technology suitable for studio environments. Support AI point by point calibration and intelligent fault warning to ensure stable operation of long-term live broadcasts.
Studio & Virtual Production Setup
Watch the Sports Broadcast Studio LED Display in action — from seamless wall splicing to advanced XR/AR virtual production demonstrations in professional broadcast environments.
Have questions? Contact our engineering team for a site visit.
Downloads & Technical Resources
Engineering specifications, structural drawings, and technical documentation.
Get In Touch
Have questions? Reach out to our engineering team directly.
We respond to all inquiries within 24 hours.
Sports Broadcast Studio LED Display — 10,000:1 High Contrast
Engineered specifically for the high color accuracy and detail requirements of modern broadcast studios and virtual production. Our fine-pitch sports broadcast studio 4K LED screen wall delivers 10,000:1 high contrast ratio, 3840Hz refresh rate, and silent operation. With ultra-thin die-cast aluminum cabinets and seamless splicing technology, it provides an immersive, flawless background for XR/VR production, newsrooms, and high-end media walls.
10,000:1 Contrast Ratio
High contrast ratio delivers deep blacks and brilliant whites, ensuring true-to-life color reproduction and exceptional clarity for professional camera feeds in broadcast studios.

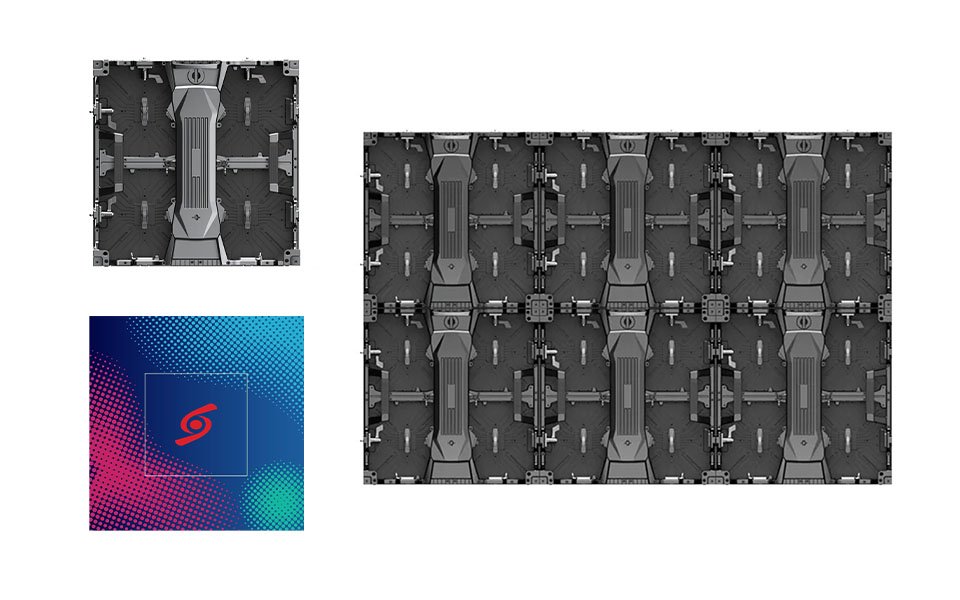

Seamless Splicing

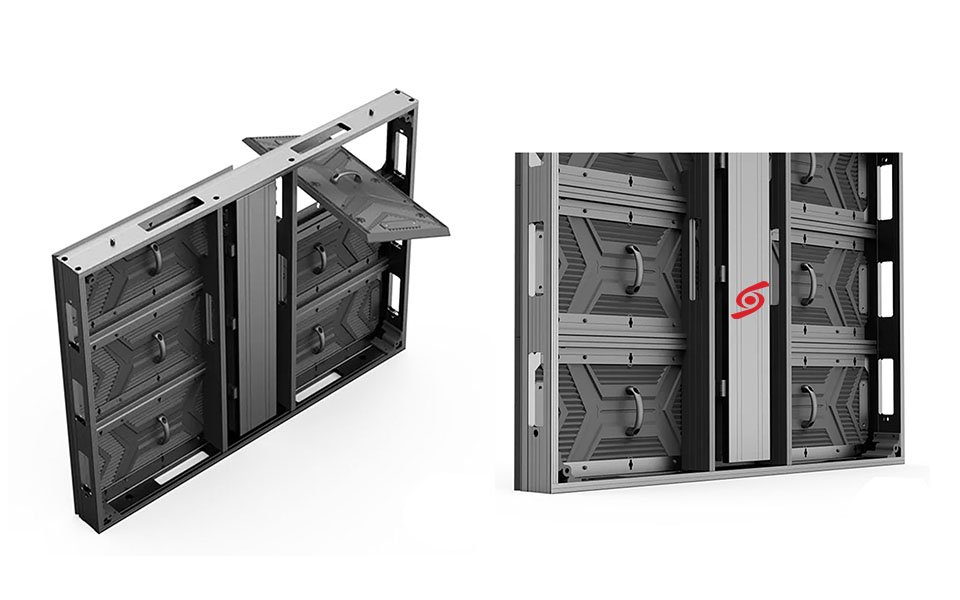

Precision-engineered ultra-thin bezel cabinet edges ensure zero visible gaps, delivering an uninterrupted, immersive panoramic visual experience perfect for on-air backgrounds.
Silent Operation
Advanced fanless cooling design ensures completely silent operation, eliminating any background noise that might interfere with live audio recording and studio microphones.

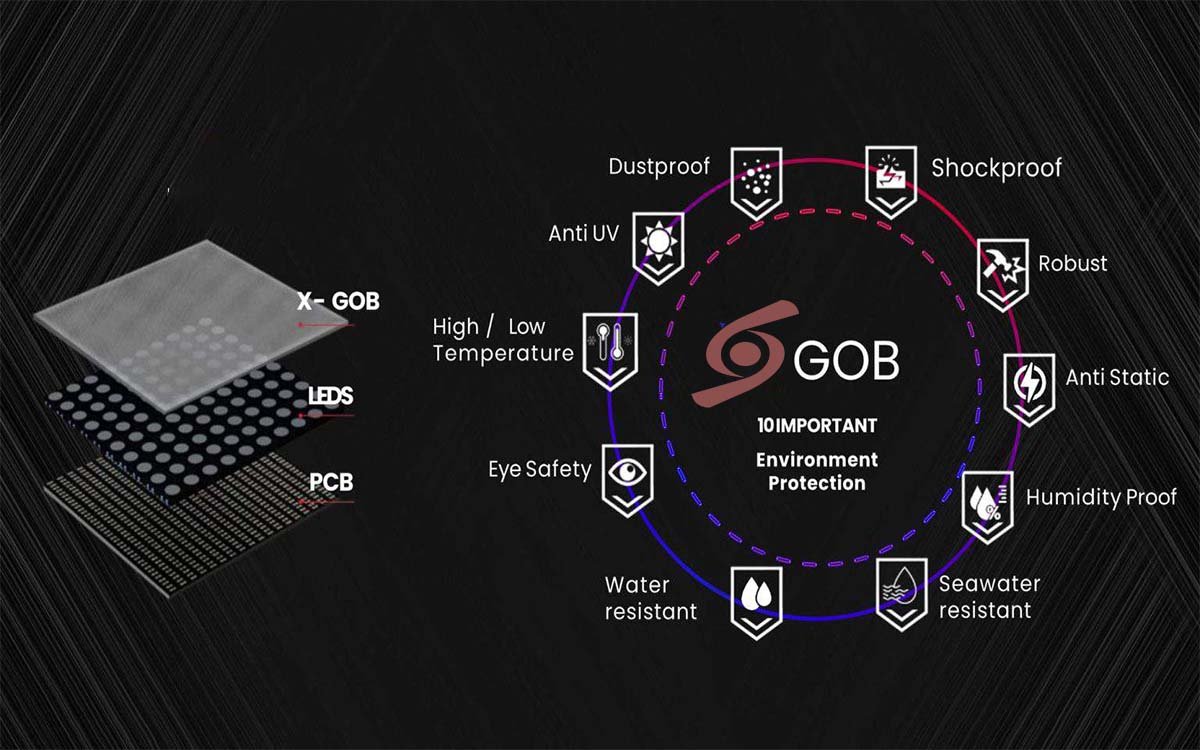

GOB Encapsulation
Advanced GOB protective encapsulation shields fine-pitch LEDs from moisture, dust, and accidental impacts, ensuring long-lasting reliability in busy studio environments.
Complete Sports Broadcast Studio LED Display Ecosystem
Our tv studio LED video wall is part of a comprehensive broadcast ecosystem designed for newsrooms and virtual production sets, ensuring seamless integration with camera tracking systems:
- Color Calibration: Factory and on-site color calibration to guarantee true-to-life broadcast standards, ensuring visuals match camera feeds and studio lighting perfectly.
- XR/AR Integration: Optimized for camera tracking systems and virtual set extensions, offering seamless mapping for immersive extended reality productions.
- Service & Support: On-site engineering training, maintenance programs, and 24/7 technical support for mission-critical live broadcast installations.
Sports Broadcast Studio LED Display — Technical Specifications
Available in ultra-fine pixel pitches from P0.9 to P2.5 to match your studio viewing distances. High contrast ratio, 3840Hz high refresh rate, and silent fanless operation ensure superior on-air performance. Fully customizable dimensions and structural configurations available upon request.
As a professional sports broadcast studio LED display solution provider, we deliver high performance, commercial grade, direct view LED displays with pixel pitches from 0.8mm to 15.6mm; for everything from the highest-resolution MicroLED video walls for cinema and on-camera applications, to the biggest sports venue video boards and touch-based displays for collaborative spaces.
| Parameter | LW-IF Series | LW-IF Series | LW-IF Series | LW-OF Series | LW-OF Series |
|---|---|---|---|---|---|
| Pixel Pitch | 0.83 mm | 1.04 mm | 1.25 mm | 3.91 mm | 2.97 mm |
| Module Size | 200×225 mm | 200×225 mm | 200×225 mm | 250×250 mm | 250×250 mm |
| Module Resolution | 240*270 dots | 192*216 dots | 160*180 dots | 64*64 dots | 84*84 dots |
| Cabinet Size | 400×450 mm | 400×450 mm | 400×450 mm | 500×500 mm | 500×500 mm |
| Cabinet Resolution | 480*540 dots | 480*540 dots | 480*540 dots | 128*128 dots | 168*168 dots |
| Brightness | 500-800 nits | 500-800 nits | 500-800 nits | 4,500-5,500 nits | 4,500-5,500 nits |
| Refresh Rate | ≥ 3,840 Hz | ||||
| Contrast Ratio | 10,000:1 | ||||
| Gray Scale | 16–19 bit | ||||
| Viewing Angle | 170° / 165° | ||||
| Cabinet Depth | ≤ 45 mm (Ultra-thin) | ||||
| Input Voltage | AC 110-240V, 50/60Hz | ||||
| Max. Power Consumption | 480 W/m² | 480 W/m² | 480 W/m² | 600 W/m² | 600 W/m² |
| Avg. Power Consumption | 160 W/m² | 160 W/m² | 160 W/m² | 180 W/m² | 180 W/m² |
| Service Access | Front & Rear | ||||

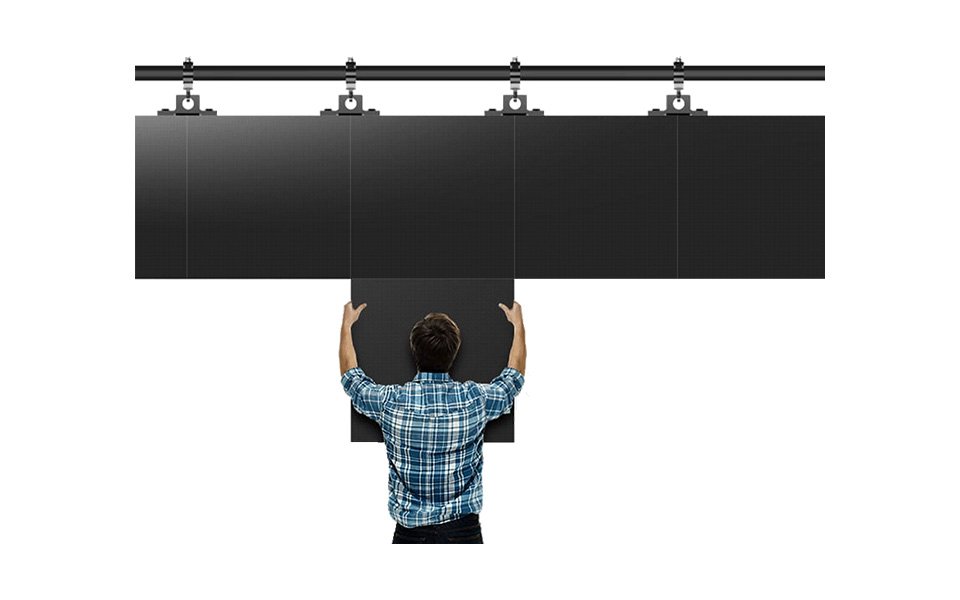

| Mounting Options | Wall, Standing, Lifting | ||||
| Operating Temperature | -20°C to +50°C | ||||
| Operating Humidity | 10–90% RH | ||||
| Lifetime | 100,000 hours | ||||
| Control System | Novastar / Synchronous | ||||
| Certification | CE, RoHS, FCC, ETL, EMC* | ||||
What is a sports broadcast studio LED display?
An indoor broadcast backdrop screen display is a high-contrast, fine-pitch LED video wall designed for professional broadcast studios, newsrooms, and virtual production sets. It delivers exceptional color accuracy and silent operation for on-air environments.
What is XR/VR virtual production with LED?
XR/VR virtual production uses high-contrast, seamless sports broadcast studio LED display video walls as immersive backgrounds, synchronizing with camera tracking systems to create realistic 3D environments in real-time, replacing traditional green screens.
Why is silent operation important?
Our sports broadcast studio LED display features fanless cooling technology, resulting in completely silent operation. This ensures no background noise interferes with sensitive microphones and audio recording during live news broadcasts or studio interviews.
What is the typical installation timeline?
Installation timelines for sports control room LED screen depend on wall size and structural requirements. Typically, structural integration and seamless splicing take 2–3 weeks, followed by 1–2 weeks of color calibration and camera integration by our specialized engineering team.
Ready to elevate your studio with our broadcast LED display solutions?
Get a custom quote in 24 hours — including pixel pitch recommendation, size options, and shipping timeline.
