Compact
LED Reception Desk
A high-definition curved compact LED reception desk solution with GOB protection, plug‑and‑play installation, and front‑service maintenance. Perfect for corporate lobbies, hotels, retail, and exhibitions. Engineered for professional first impressions. This innovative digital counter merges striking LED visuals with functional design, creating a new centrepiece for modern brand communication.
Product Video
Watch the Compact LED Reception Desk Display in action — installation, setup, and real-world applications.
Have questions? Contact our team for a live demo.
Downloads & Resources
Spec sheets, brochures, and technical documentation for the Compact LED Reception Desk.
Get In Touch
Have questions about the Compact LED Reception Desk? Reach out to our team directly.
We respond to all inquiries within 24 hours.
Key Features of the Compact LED Reception Desk Series
Engineered for professional front desks — GOB protective technology, high‑definition visuals, plug‑and‑play deployment, and front‑service maintenance make this the ideal choice for corporate, hospitality, and retail environments. The Front Desk LED Counter Display is more than a reception desk, it’s a live storytelling platform. Every surface becomes an opportunity to communicate — from displaying your logo and brand films to playing dynamic adverts or welcoming visitors in style.
Compact LED Reception Desk Series – Technical Data
Available in P1.25 to P2.5 pixel pitches, both with GOB protection. Custom sizes available upon request. Learn more about dot pitch selection for your viewing distance and resolution needs. The counter LED display desk preserves full desk functionality, featuring multiple independent drawers for organized storage. Dual built-in power outlets support customized global standards, including US, EU, UK, and CN plugs.

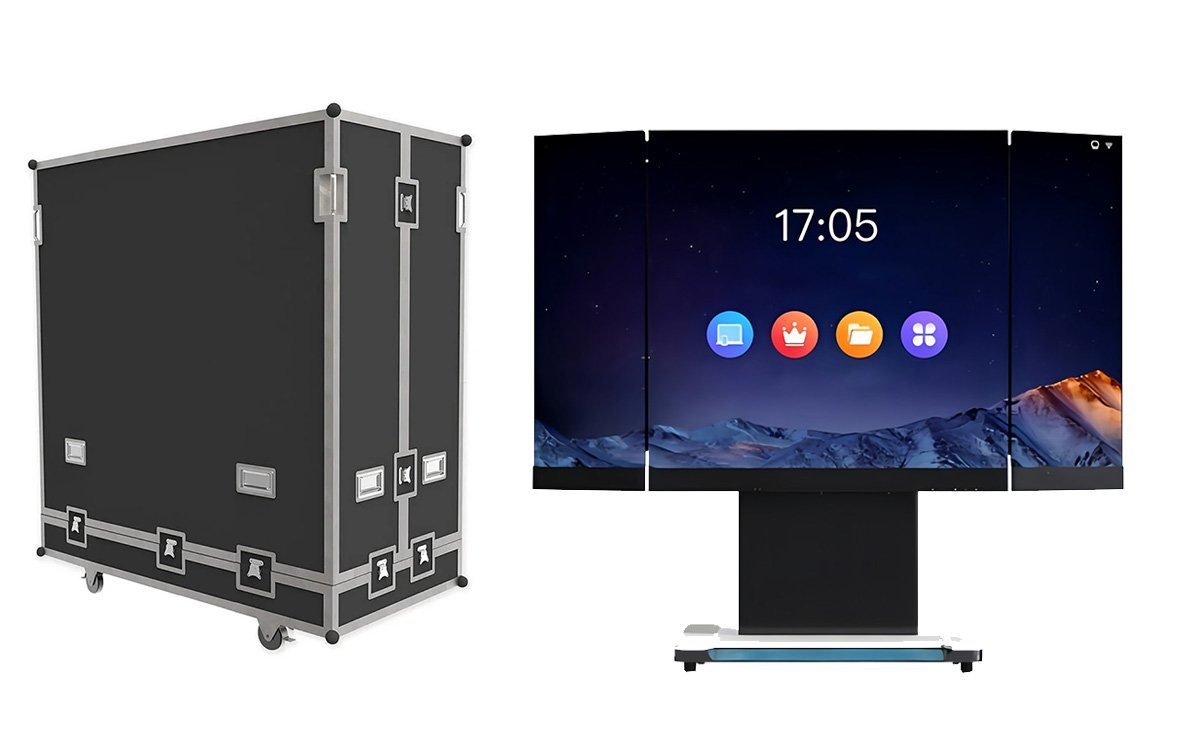

For more products, refer to our Plug & Play LED Display Family: All In One, LED Poster, LED Reception Desk, LED Podium, LED Showcase.
| Parameter | AIO-RD-S1.2 (GOB) | AIO-RD-S1.5 (GOB) | AIO-RD-S1.8 (GOB) | AIO-RD-S2.0 (GOB) | AIO-RD-S2.5 (GOB) |
|---|---|---|---|---|---|
| Pixel Pitch | 1.25 mm | 1.53 mm | 1.86 mm | 2.0 mm | 2.5 mm |
| LED Type | SMD1010 + GOB | SMD1212 + GOB | SMD1212 + GOB | SMD1515 + GOB | SMD1515 + GOB |
| Pixel Density | 640,000 px/m² | 406,406 px/m² | 288,906 px/m² | 250,000 px/m² | 160,000 px/m² |
| Module Size | 320 × 160 mm | ||||
| Screen Size (W×H) | 1,920 × 800 + 1,920 × 160 mm | ||||
| Screen Resolution (W×H) | 1,536 × 640 + 1,536 × 128 pixels | 1,224 × 640 + 1,224 × 102 pixels | 1,032 × 430 + 1,032 × 86 pixels | 960 × 400 + 960 × 80 mm | 768 × 320 + 768 × 64 mm |
| Product Size (W×H×D) | 1,065 × 585 × 1,100 mm | ||||
| Weight | 80 kg | ||||
| Brightness | 600 – 1,200 nits | ||||
| Refresh Rate | ≥ 3,840 Hz | ||||
| Contrast Ratio | 10,000:1 | ||||
| Gray Scale | 19 bit | ||||
| Viewing Angle | 170° / 160° | ||||
| IP Rating (Front) | IP54 | ||||
| Input Voltage | AC 100-240V, 50/60Hz | ||||
| Power (Max / Avg) | 600 / 200 W/m² | ||||
| Operating Temperature | -20°C to +50°C | ||||
| Lifetime (50% Brightness) | 100,000 hours | ||||
| Control System | Novastar (WiFi, HDMI, USB, Ethernet) | ||||
| Certification | CE, FCC, RoHS, EMC* | ||||
Where the Compact LED Reception Desk Series Excels

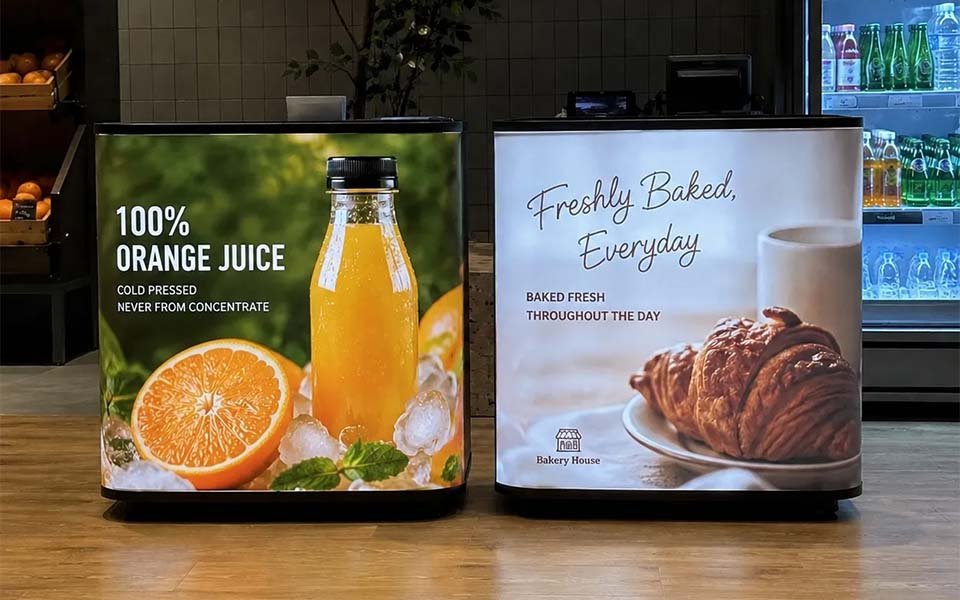

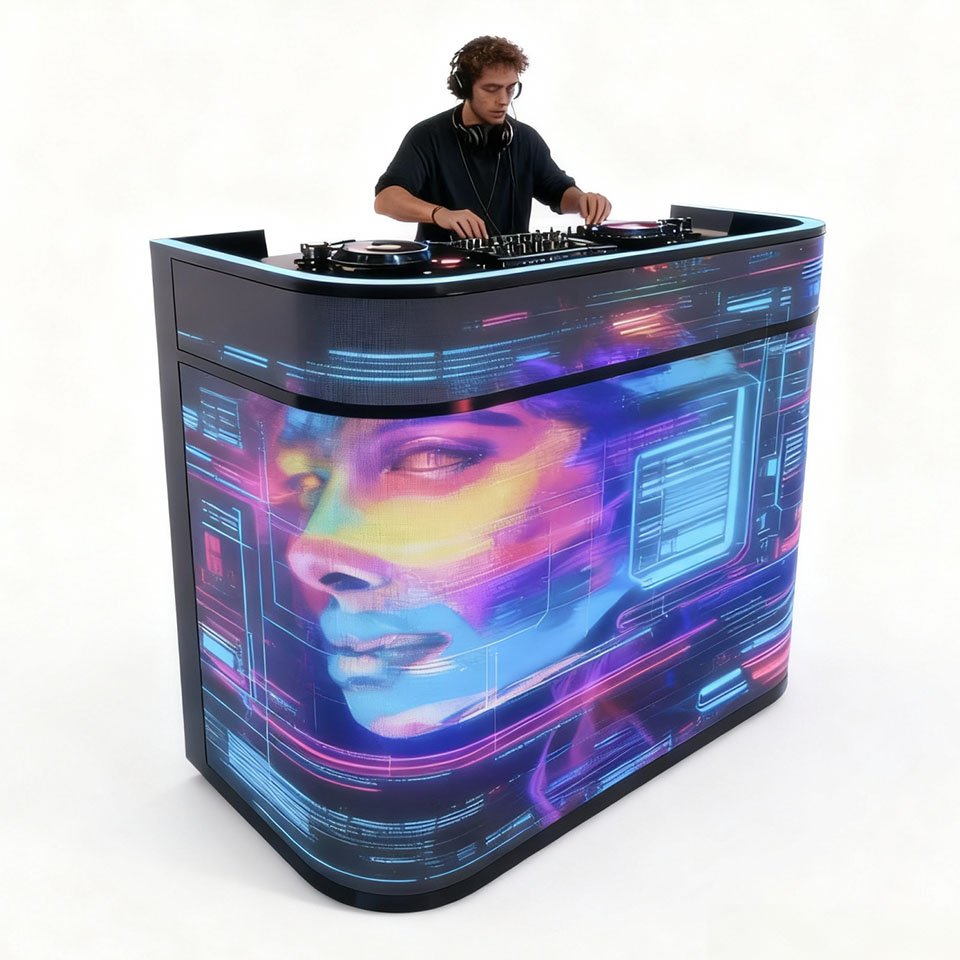

Deployed across corporate, hospitality, retail, and public spaces — see how our compact LED reception desk transforms digital signage into a powerful first impression. This versatile compact front desk LED screen is ideal for exhibitions, corporate reception areas, cashier counters, DJ booths, conferences, and event venues. Its modular design and visual impact make it a flexible solution for modern reception, KTV, bars, and creative curved LED screen tables.
What is GOB technology and why does it matter?
GOB (Glue‑on‑Board) is an encapsulation process that coats the LED module surface with a protective layer, shielding the LEDs from moisture, dust, and physical impact. It also enhances contrast and reduces glare, resulting in richer colors and longer module life.
How long does installation take?
The Compact Series is pre‑assembled and tested before shipping. Simply place it on your reception desk, connect power and signal, and it’s ready to use in minutes. No on‑site splicing or complex configuration required.
Can I customize the size and finish?
Yes. As an OEM/ODM factory, we offer fully custom dimensions based on the 320×160mm module. You can also choose from black, white, or custom RAL colors to match your brand identity.
Ready to elevate your digital front desk experience?
Get a custom quote in 24 hours — including pixel pitch recommendation, size options, and shipping timeline.
