All In One LED Display
Standard dimensions 135 inch – 220 inch, three engineered all in one LED display form factors built for one purpose — move your message anywhere. From trade show floors to corporate lobbies, each system deploys in minutes without tools or technicians.
No tools required.
in under 10 minutes.
any device, anywhere.
for impact resistance.

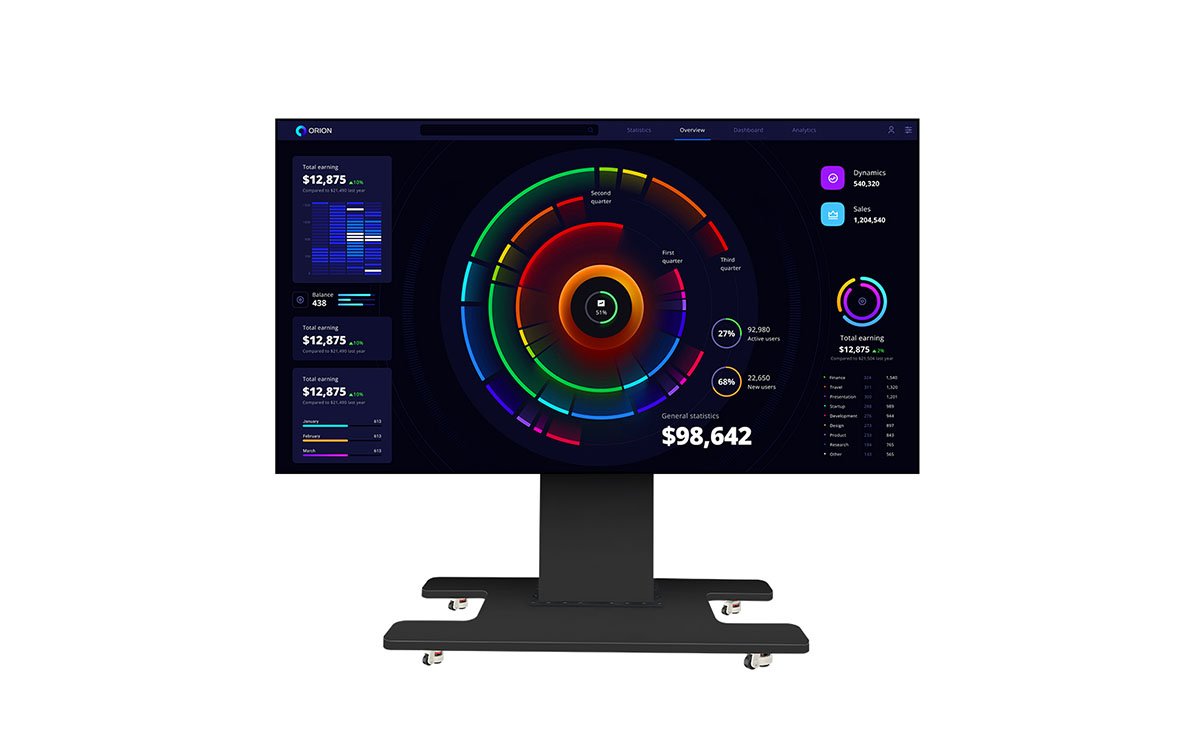

Mobile All In One
LED Display
“Roll in. Power on. Present.”
The foundational mobile unit. A freestanding LED screen on a precision-engineered aluminum trolley with lockable casters. Designed for rapid deployment in retail, exhibitions, and corporate events where setup time is measured in minutes, not hours.
No tools required.
in under 10 minutes.
any device, anywhere.
for impact resistance.

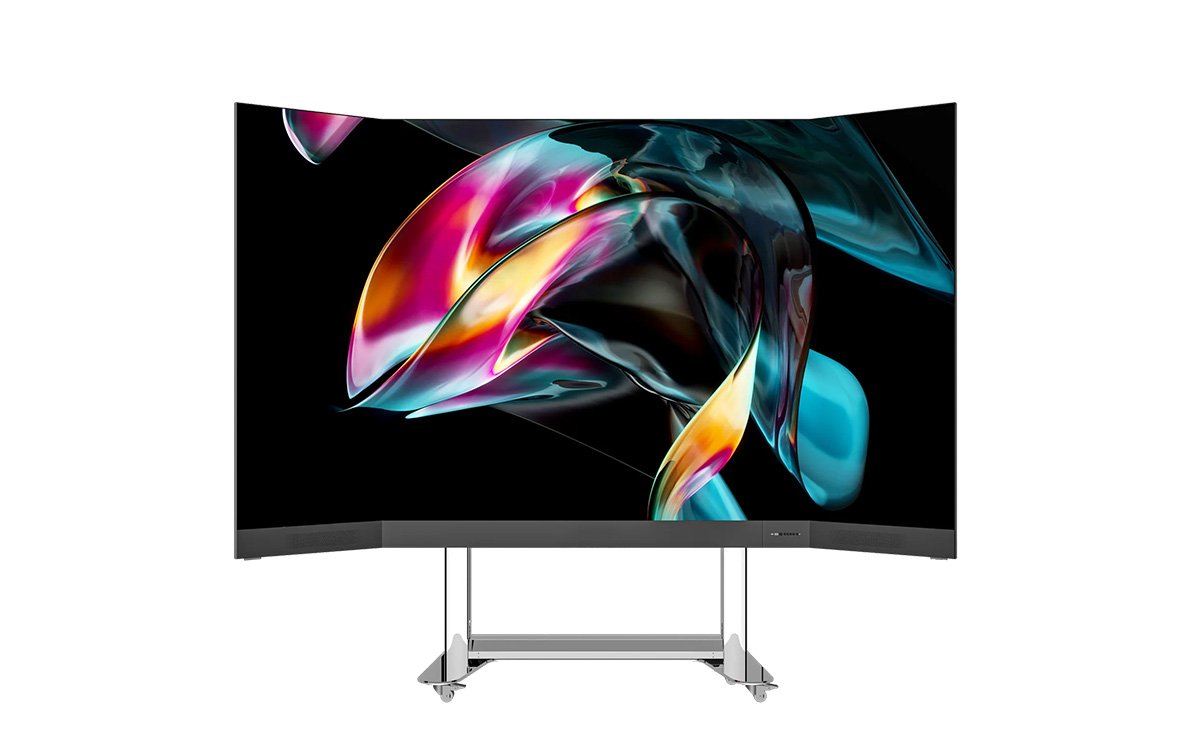

Foldable All In One
LED Display
“Fits through a door. Fills a room.”
The screen folds in half, collapsing into its own integrated flight case. No disassembly. No loose parts. Wheel it through standard doorways and elevators, then unfold to a full-size LED wall in under 15 minutes.
No tools required.
in under 10 minutes.
any device, anywhere.
for impact resistance.

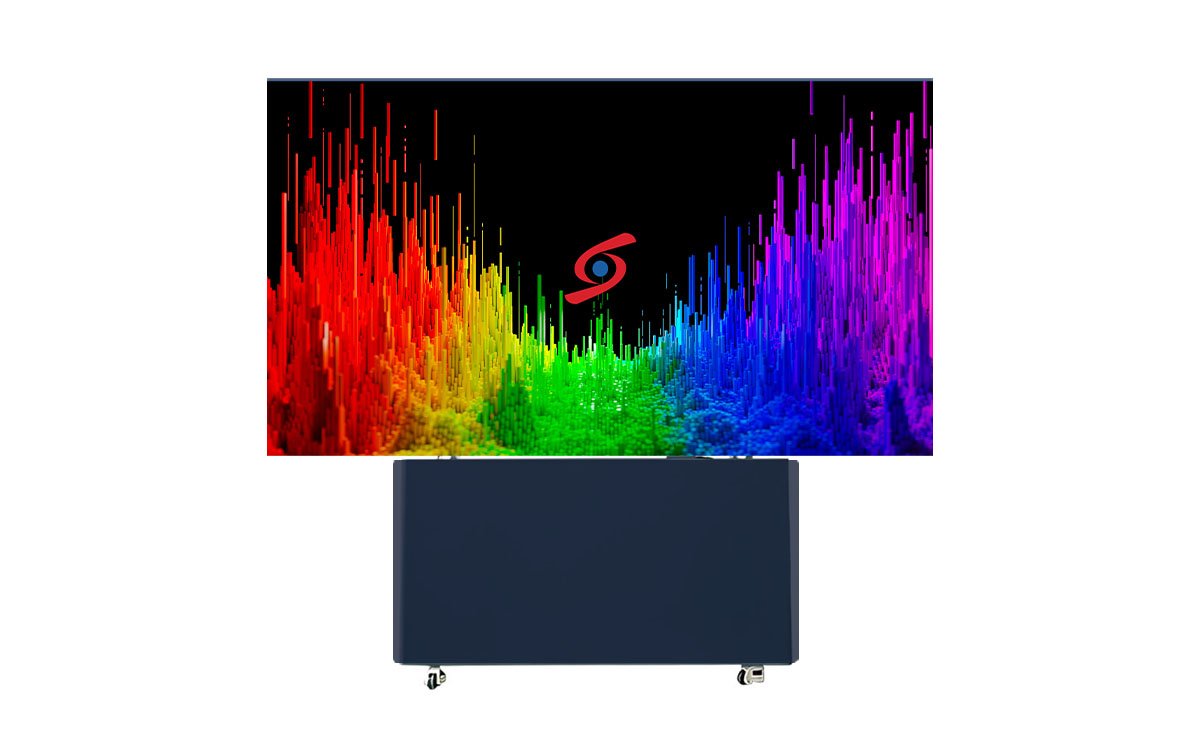

Motorized All In One
LED Display
“One touch. Any height. Perfect angle.”
Electric height adjustment with a 60 cm travel range. Tilt from vertical to horizontal for tabletop collaboration. Anti-collision sensors and silent motors make it ideal for boardrooms, classrooms, and hybrid workspaces.

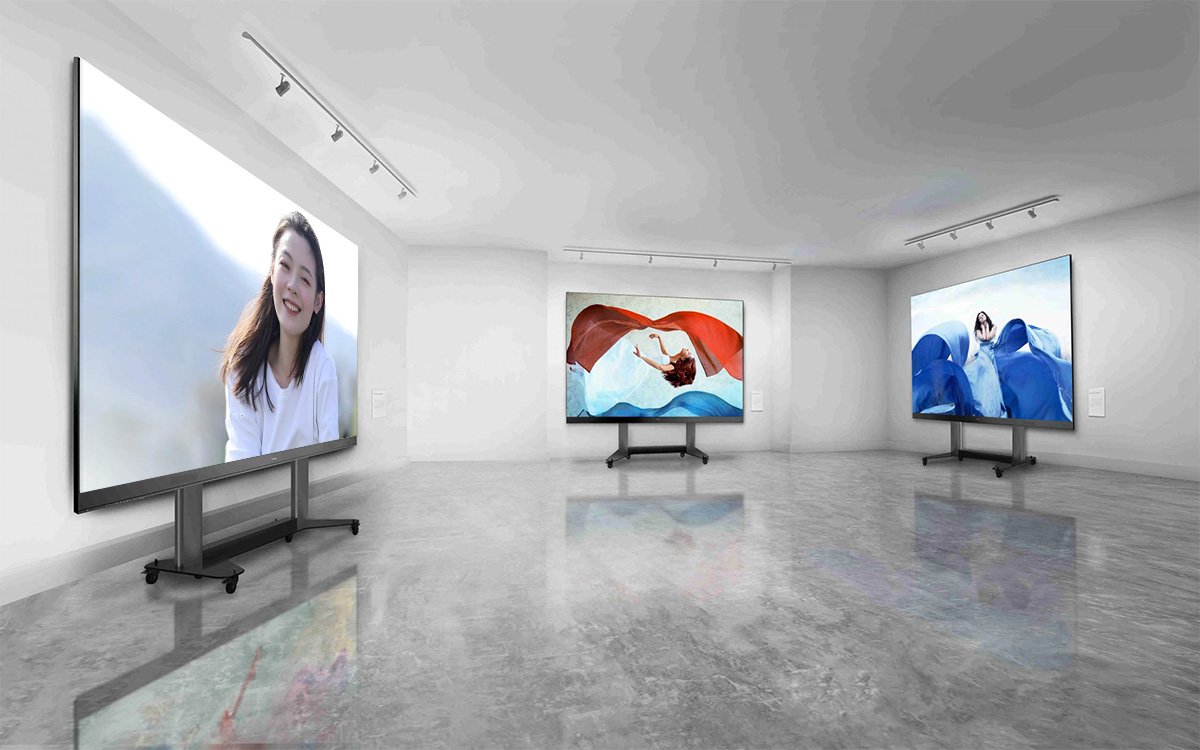

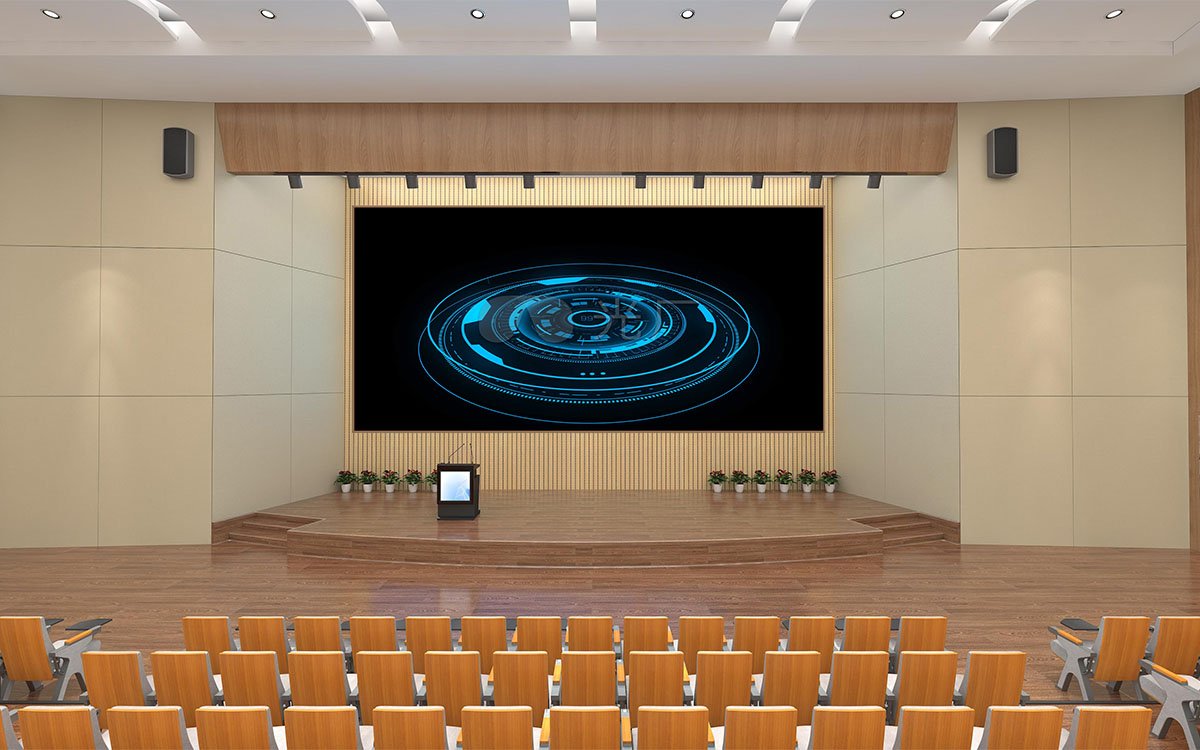

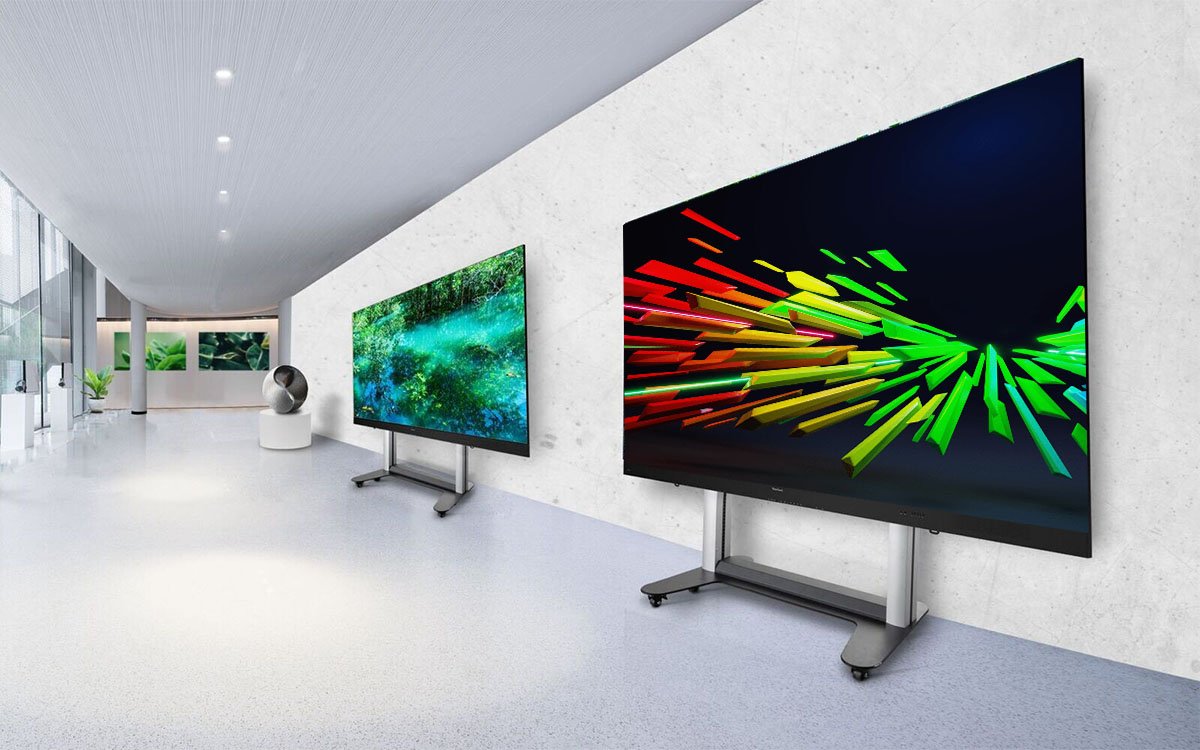

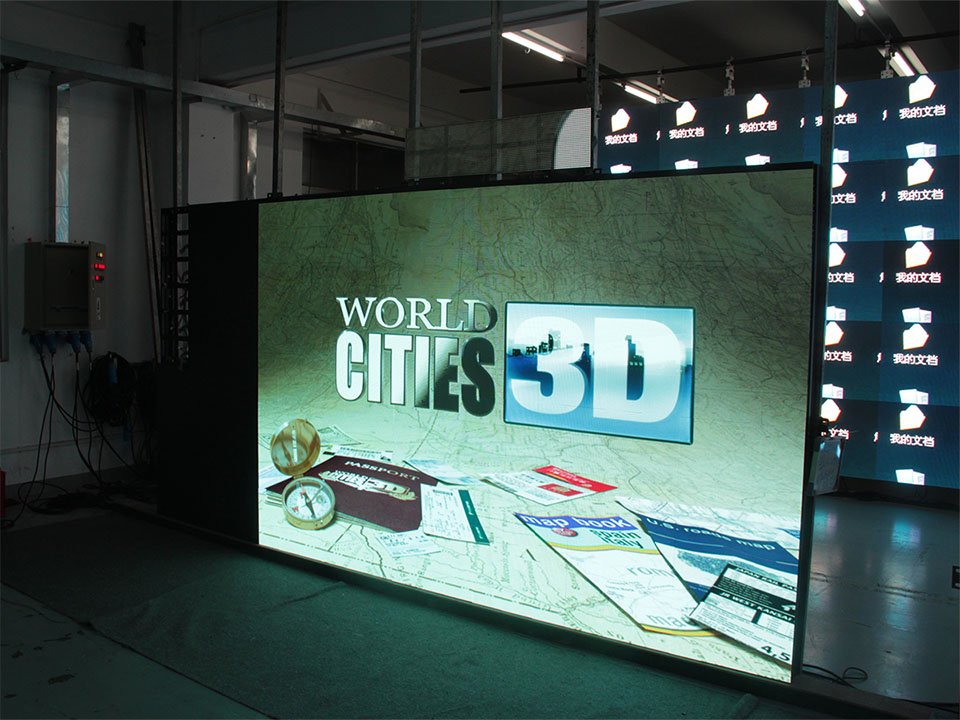

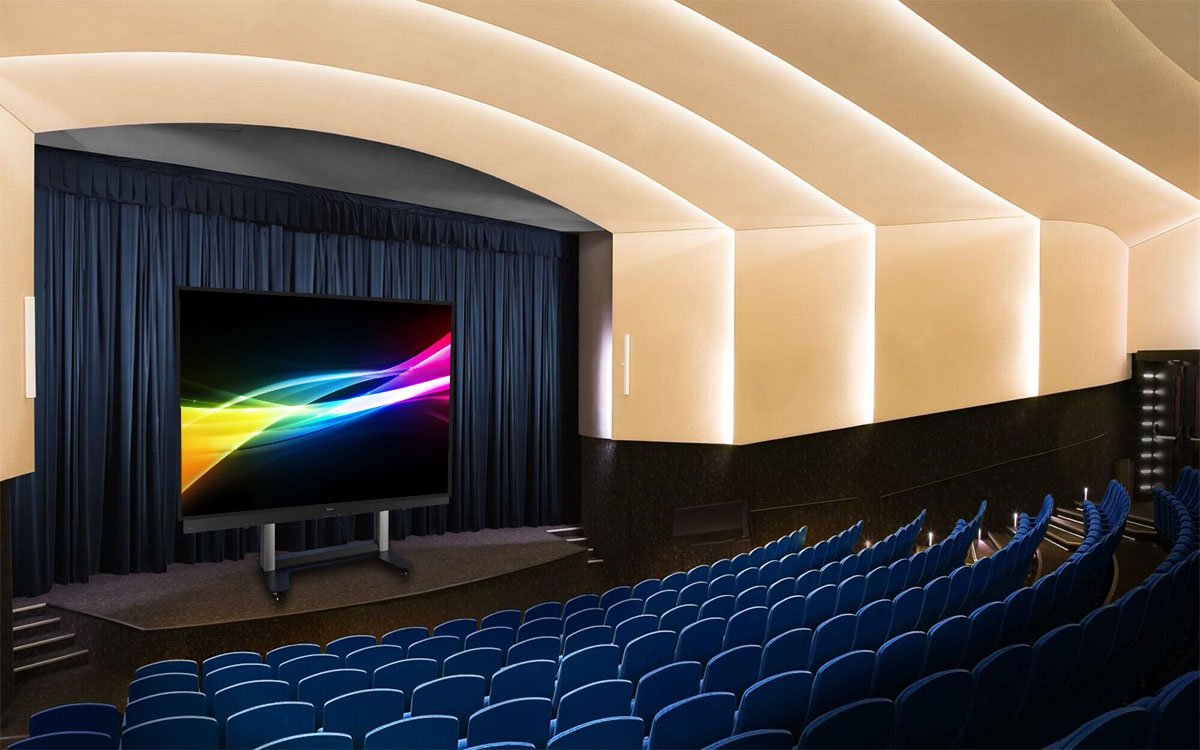

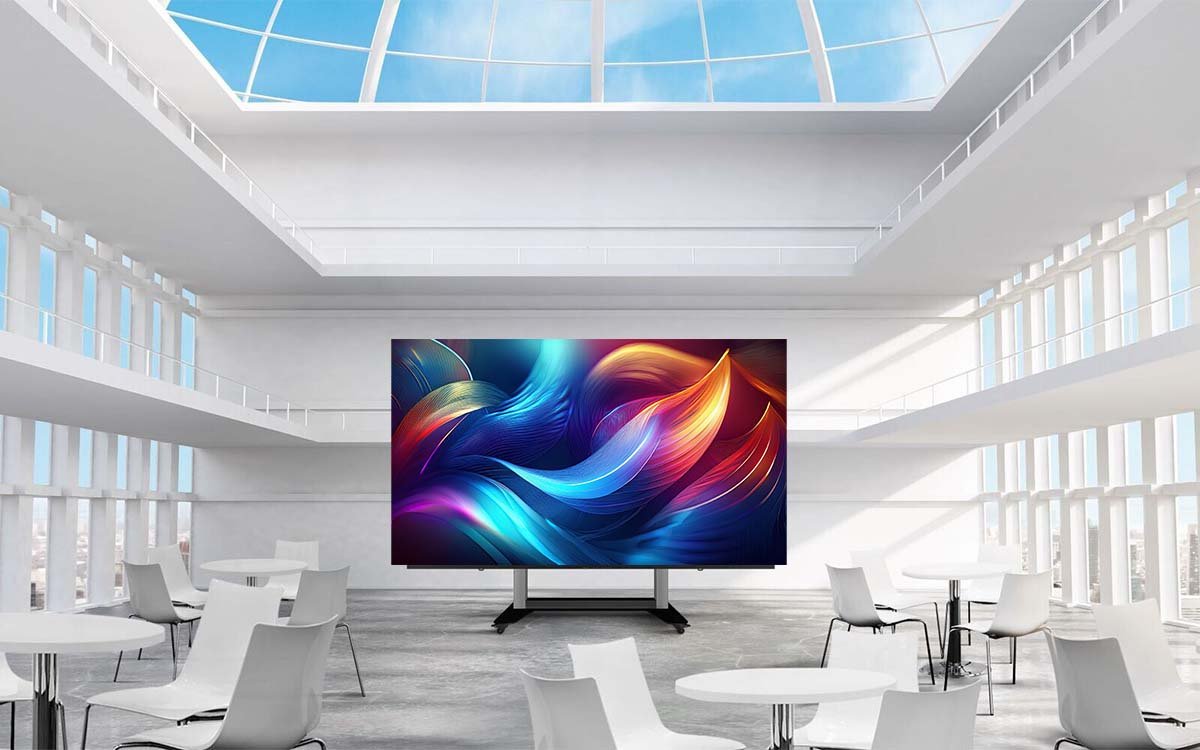

Where It Works
Real-world deployment scenarios across industries
Compare at a Glance of All In One LED Display
Our micro pixel pitch all in one led display offers remarkable visual precision. With true color expression, every hue is rendered with stunning clarity and depth, providing a true-to-life visual experience. Find the right form factor for your deployment
| Specification | Mobile All-In-One | Foldable All-In-One | Motorized All-In-One |
|---|---|---|---|
| Screen Size | 132″ – 168″ | 132″ – 220″ | 132″ – 168″ |
| Pixel Pitch | P0.7mm – P1.8mm | P0.9mm – P1.8mm | P0.7mm – P1.5mm |
| Setup Time | < 10 min | 10 – 15 min | < 10 min |
| Height Adjustment | Manual | Manual | Motorized (600mm) |
| Tilt Function | — | — | 0° – 90° |
| Transport Case | Optional | Built-in Flight Case | Optional |
| Foldable Screen | — | ✓ | — |
| Anti-Collision | — | — | ✓ |
| Best For | Quick deploy, budget | Multi-venue touring | Boardrooms, classrooms |
Not sure which one fits?
Our engineers will analyze your venue, audience size, and content type — then recommend the exact configuration. Plug & Play LED Display Family: All In One, LED Poster, LED Reception Desk, LED Podium, LED Showcase.
Get a Free ConsultationWhich All In One LED Display Fits Your Space?
Answer 3 quick questions. We’ll match you with the right system — no guesswork, no wasted time.
How often do you relocate the display?
Mobile All In One LED Display
Based on your mobility and size requirements
Not exactly what you had in mind?
All In One LED Display — FAQs
Quick answers about setup, specs, and deployment
An All In One LED Display is a self-contained LED screen mounted on a wheeled stand, trolley, or motorized lift — designed to be moved, stored, and redeployed without disassembly. Unlike a fixed LED wall that requires permanent structural mounting and professional installation, a mobile unit rolls into position, plugs into a standard outlet, and is ready to display content in under 15 minutes. This makes it ideal for venues that need visual impact without the infrastructure commitment of a fixed installation.
Setup time depends on the form factor. A Mobile Stand All In One LED Display deploys in under 10 minutes — simply wheel it into position, lock the casters, and power on. A Foldable Trolley takes 10–15 minutes with two people to unfold the screen and secure the frame. A Motorized Lift is ready in under 10 minutes; height and tilt adjustments are controlled electronically via remote or touch panel. All systems ship pre-calibrated — no color balancing or module alignment required on site.
Our All In One LED Display series offers five precision pixel pitches: P0.7mm, P0.9mm, P1.2mm, P1.5mm, and P1.8mm. The right choice depends on your typical viewing distance and content type:
- P0.7 – P0.9 – Ultra-fine pitch for premium boardrooms and close-viewing (1.5–3m) where text sharpness and 4K detail matter most.
- P1.2 – P1.5 – The sweet spot for most corporate and event environments (3–6m viewing), balancing clarity with cost-effectiveness.
- P1.8 – Ideal for larger venues (6–10m viewing) where the audience is farther from the screen, offering excellent value without sacrificing quality.
All pitches deliver high refresh rates and wide color gamut, ensuring flicker-free video and vibrant imagery across every application.
Standard All In One LED Displays are designed for indoor applications. However, we offer customized outdoor-ready configurations with IP65-rated modules and weatherproof enclosures for temporary outdoor events, festivals, and open-air presentations. For outdoor deployment, you’ll need a unit with enhanced brightness (4,000+ nits for daylight visibility), sealed power compartments, and a stable anchoring system to handle wind loads. Contact our team to configure an outdoor-ready All In One LED Display with the appropriate IP rating and structural support for your specific event conditions.
Our All In One LED Displays support multiple input methods: HDMI and DisplayPort for direct laptop or media player connection, USB for offline playback, and Wi-Fi / 4G for cloud-based content management through our proprietary CMS. You can schedule playlists, push real-time updates, and manage multiple displays from a single dashboard. For live events, SDI and NDI inputs are available on request for broadcast-grade signal integration.
Transport options vary by form factor. The Mobile Stand All In One LED Display fits through standard doorways (78 cm width) and can be moved by one person on lockable casters — optional road cases are available for air freight. The Foldable Trolley integrates a built-in flight case; the screen folds in half and the entire unit collapses into a wheeled enclosure that meets airline cargo standards. The Motorized Lift requires partial disassembly (screen detaches from lift column) and ships in two cases. We provide custom foam inserts and ATA-certified cases for all configurations.
Most All In One LED Displays operate on standard 110–240V AC single-phase power and draw between 400W and 1,200W depending on screen size, pixel pitch, and brightness level. For example, a 135″ P1.5 unit at full brightness typically consumes ~750W — comparable to a commercial espresso machine. All units include built-in power supplies with PFC correction and surge protection. For venues with limited power, we offer low-power mode that reduces consumption by up to 40% with minimal brightness impact. A dedicated 10A circuit is recommended for larger configurations.
Every GOB All In One LED Display includes a 2-year comprehensive warranty covering LED modules, power supplies, control systems, and mechanical components. The warranty includes advance replacement of faulty modules (shipped within 48 hours) and remote diagnostic support via our technical team. Extended warranty options up to 5 years are available. Our 24/7 technical support hotline and live chat connect you directly with LED engineers — not call center agents — for troubleshooting, content setup guidance, and on-site service coordination when needed.
Ready to move your message?
Get a tailored quote including screen size, pixel pitch, flight case, and shipping — delivered within 24 hours.
