Naked Eye
3D
LED Display
Our cutting-edge naked eye 3D LED display solution brings scenes to life with incredible depth and motion, perfect for stadium advertising and large-scale commercial spaces. Features naked-eye 3D technology, ultra-high contrast, GOB protective encapsulation, 3,840Hz refresh rate, and custom curved or corner configurations. Especially suitable for occasions that require lightweight, slim, easy to maintain, and energy-saving solutions.
3D Demo & Deployment
Watch the Naked Eye 3D LED Display in action — from structural mounting and cabling to stunning anamorphic visual demonstrations.
Have questions? Contact our engineering team for a site visit.
Downloads & Technical Resources
Engineering specifications, structural drawings, and technical documentation.
Get In Touch
Have questions? Reach out to our engineering team directly.
We respond to all inquiries within 24 hours.
Naked Eye 3D LED Display – Key Features

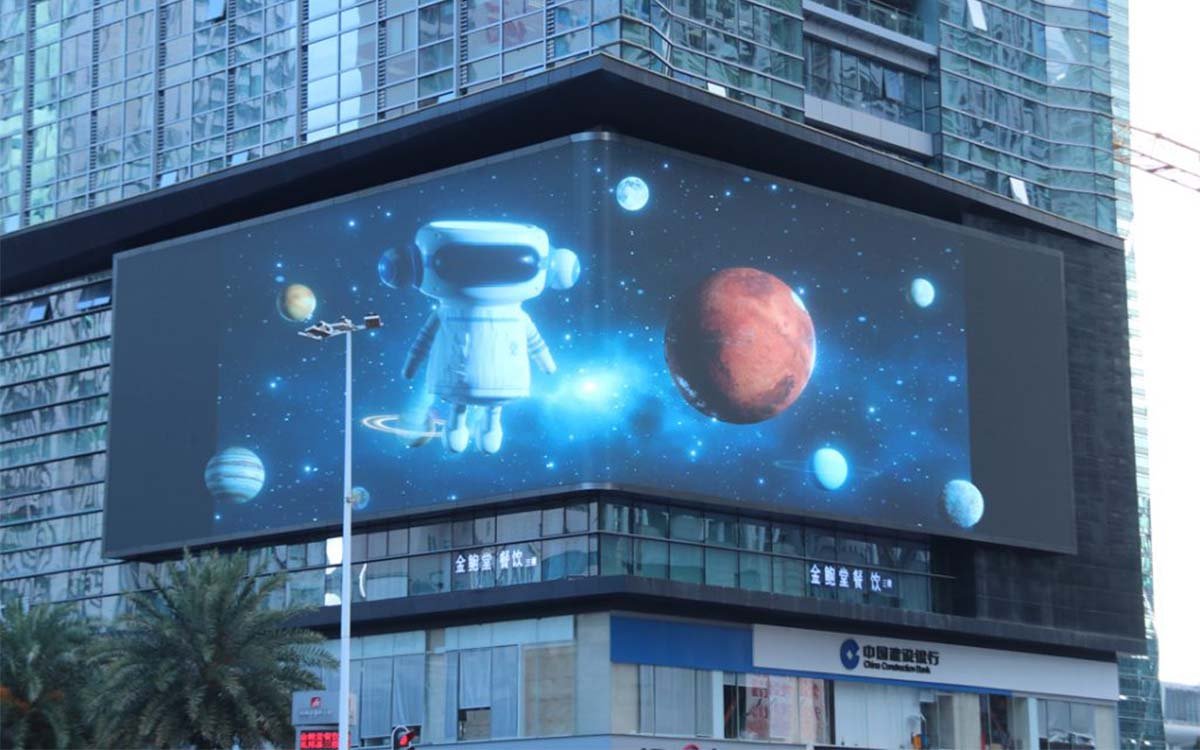

Our advanced naked eye 3D LED display leverages perspective shift technology and high-precision pixel mapping to create realistic depth and motion. Designed for sports stadiums and large commercial spaces, our outdoor building facade 3D LED display delivers jaw-dropping visual impact, immersing audiences in an interactive and unforgettable experience. Crafted with GOB protective encapsulation, anti-glare coatings, and durable weatherproof cabinets perfect for permanent outdoor and indoor fixed installations.

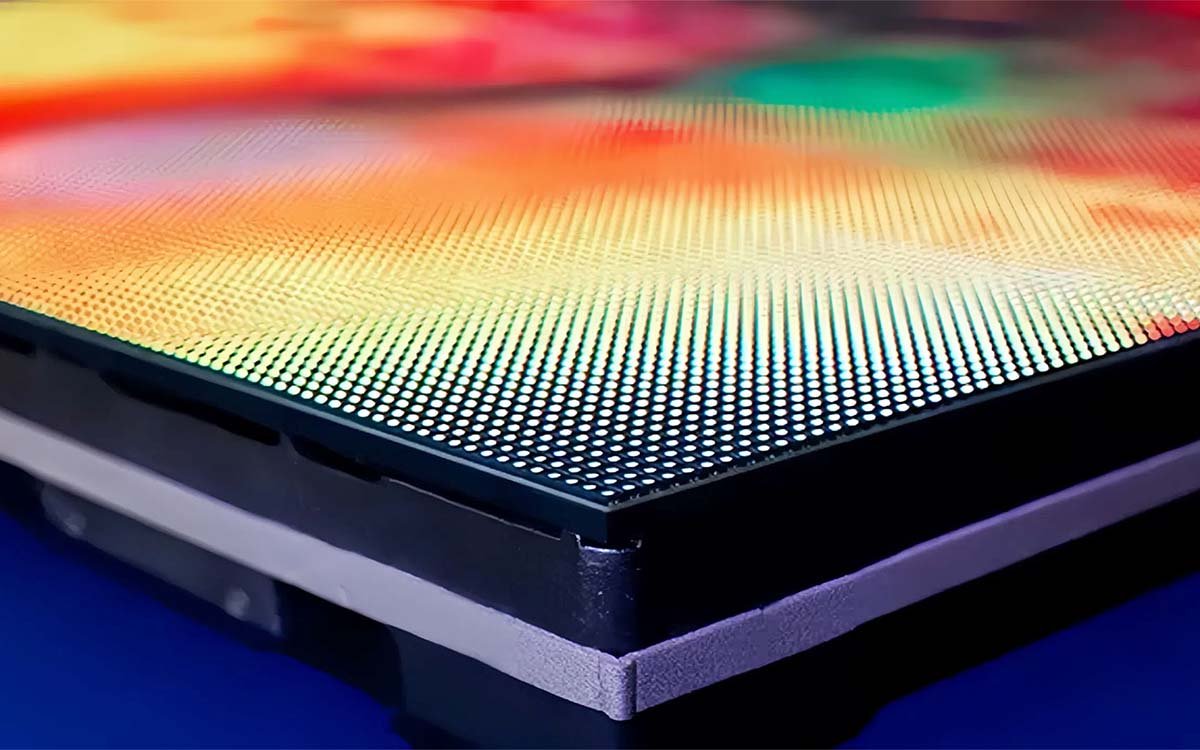

GOB & Anti-Glare
GOB encapsulation protects LEDs from moisture and impact, while the advanced anti-glare coating ensures clear, vibrant 3D visuals even under bright stadium lighting.
6,500+ Nits Brightness
Our building facade 3D LED display delivers high brightness output ensures your 3D anamorphic content remains vivid and visible in direct sunlight. Outstanding contrast ratio creates stunning visual depth.

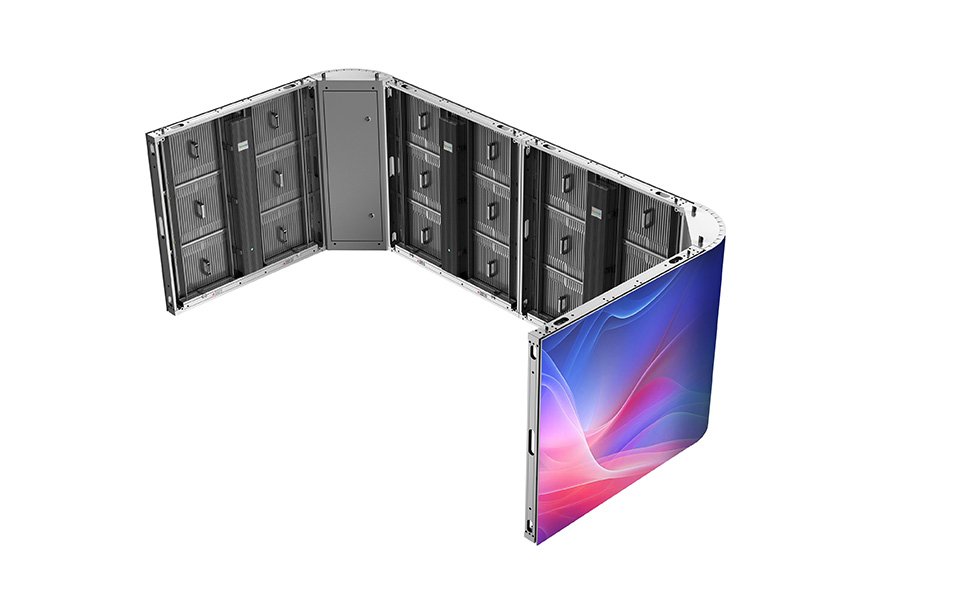

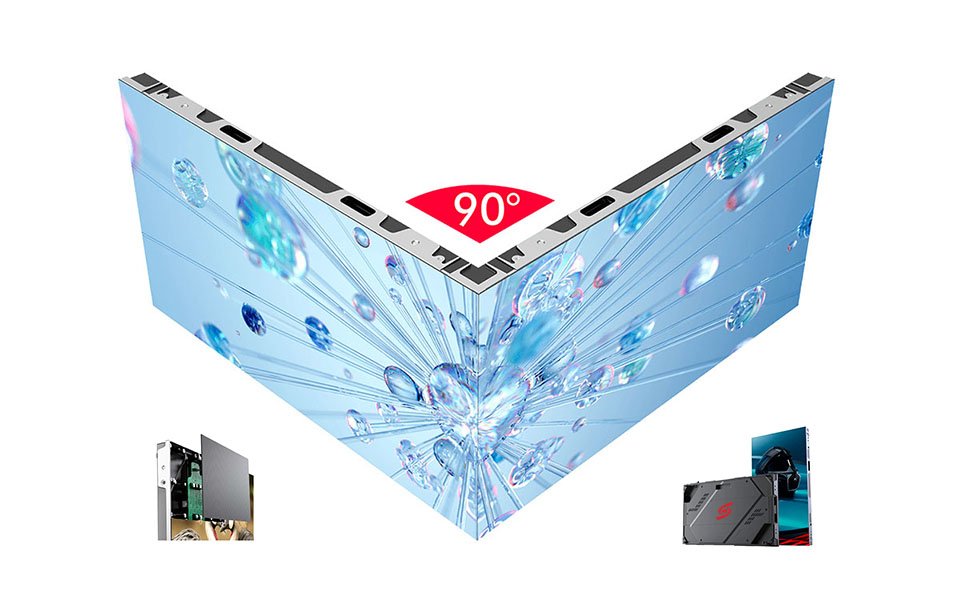

Curved & 90° Corner
Supports customized curve and 90° right-angle cabinet designs, enabling perfect 3D anamorphic illusions and seamless integration with stadium architecture.

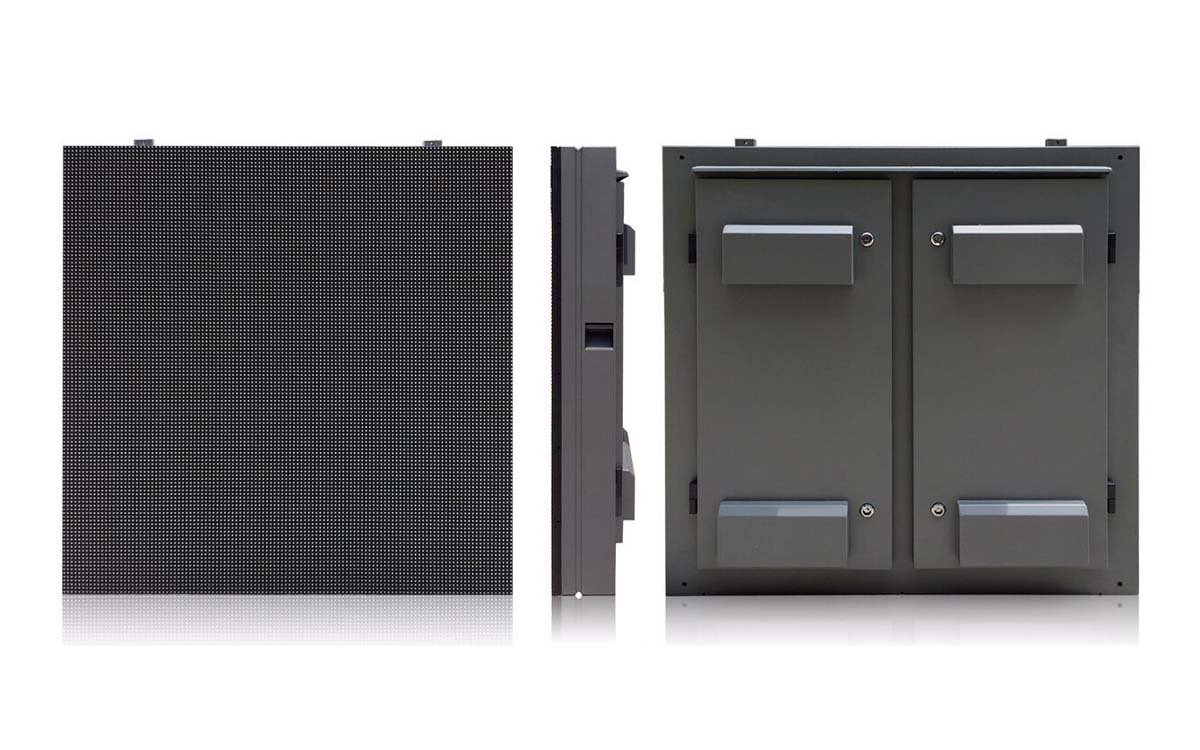

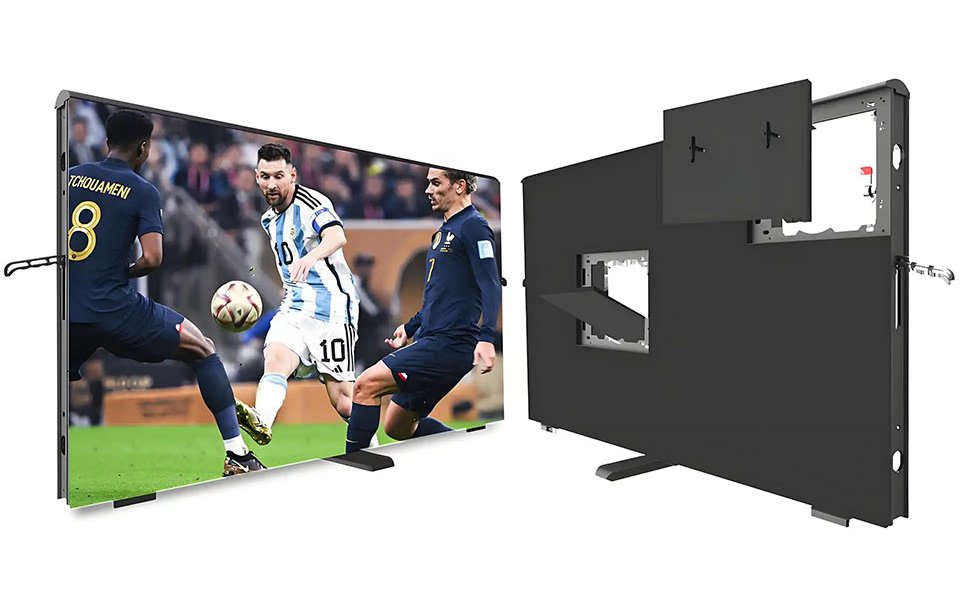

Front & Rear Access
Supports both front and rear service maintenance, minimizing downtime and simplifying routine servicing for fixed 3D installations in stadiums and arenas.

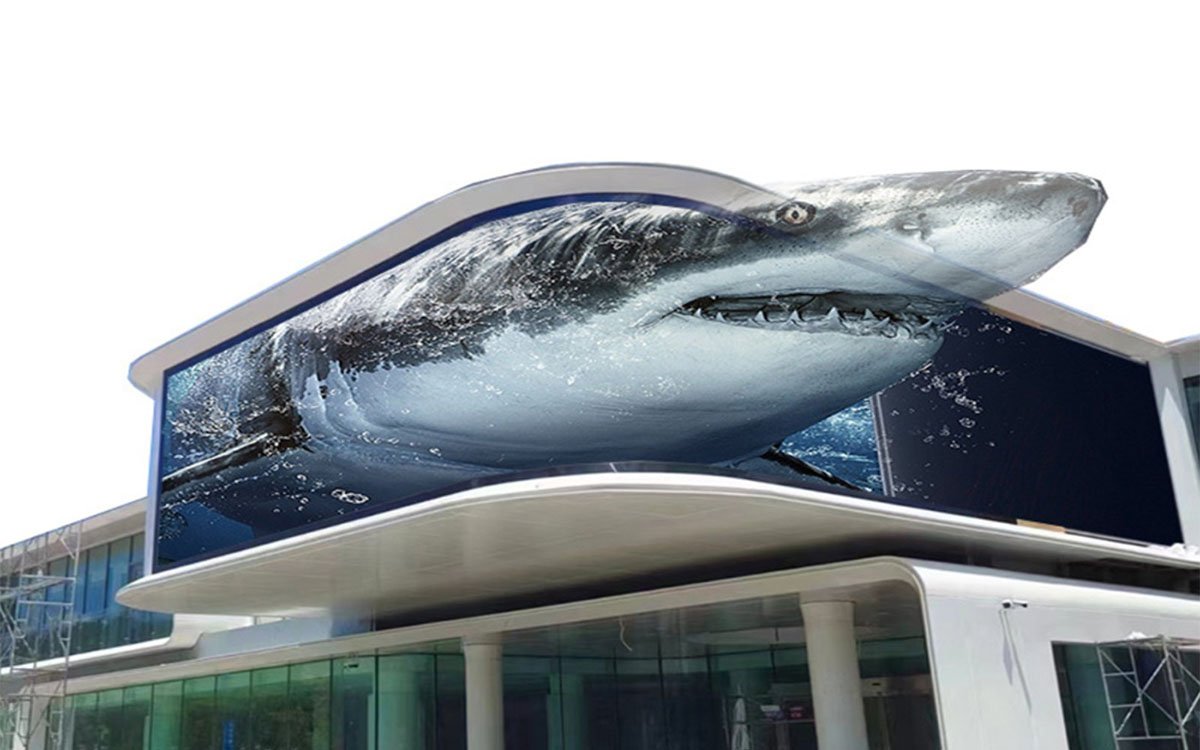

Comprehensive Stadium 3D Solution
As a glasses-free 3D LED screen manufacturer, our LED displays integrate seamlessly into the stadium environment, creating a complete ecosystem that enhances fan engagement and maximizes advertising ROI:
- Content Management: Centralized cloud-based platform for real-time 3D video scheduling, remote updates, and playback control.
- Custom Engineering: Tailored corner and curved aluminum cabinets that fit specific structural steelwork and viewing angles for anamorphic 3D effects.
- Service & Support: On-site training, specialized maintenance programs, and 24/7 technical support for mission-critical stadium installations.
Naked Eye 3D LED Display — Technical Specifications

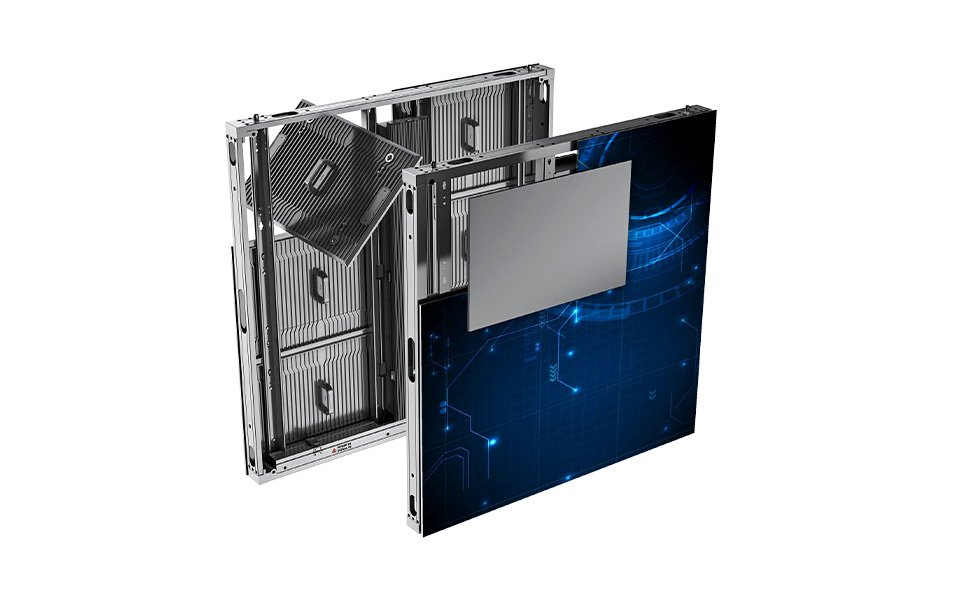

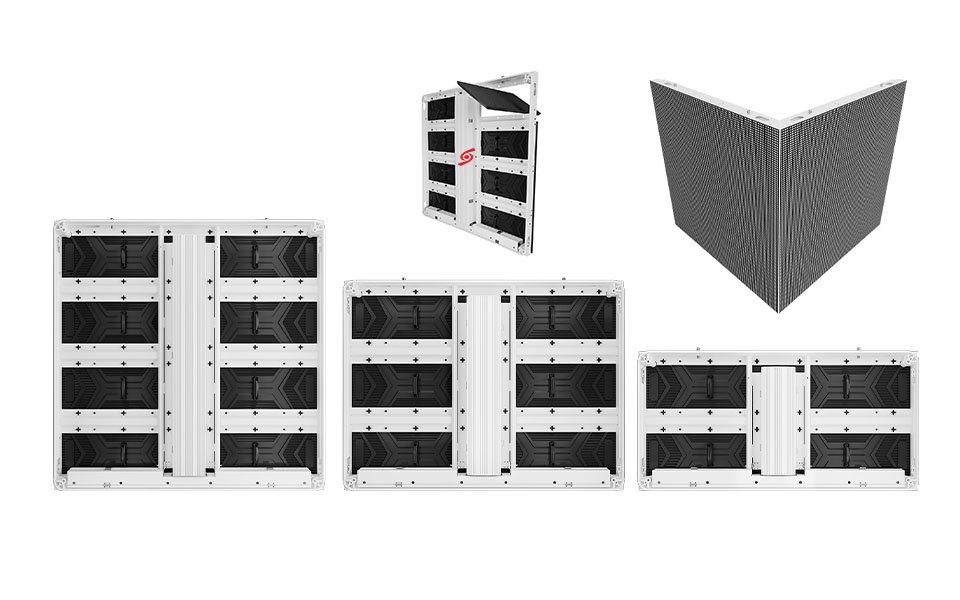

Our naked eye 3D LED display offers a wide range of mounting possibilities, which can be easily configured in curved and 90° right-angle configurations to create phenomenal anamorphic visual effects. Improved lightweight housing material design and private design LED modules ensure easy installation and maintenance. Interchangeable power and data units allow for quick disassembly and routine servicing.
| Parameter | Indoor 3D Series | Outdoor 3D Series | Custom 3D Design |
|---|---|---|---|
| Pixel Pitch | P1.95mm – P3.91mm | P4mm – P10mm | P1.95mm – P10.4mm |
| LED Type | SMD 3-in-1 / GOB | ||
| Brightness | 1,500 – 2,600 nits | 6,500 – 8,000 nits | Customizable |
| Refresh Rate | ≥ 3,840 Hz | ||
| Contrast Ratio | 10,000:1 | ||
| Gray Scale | 16–19 bit | ||
| 3D Viewing Angle | 170° / 160° (Anamorphic) | ||
| IP Rating | IP43 | IP65 – IP67 (Front & Rear) | IP65 – IP67 |
| Input Voltage | AC 110‑240V, 50/60Hz | ||
| Max. Power Consumption | 650 W/m² | 900 W/m² | 650 W/m² |
| Avg. Power Consumption | 180 W/m² | 280 W/m² | 220 W/m² |
| Service Access | Front & Rear | ||
| Mounting Options | Wall, 90° Corner, Curved | ||
| Operating Temperature | -20°C to +50°C | ||
| Operating Humidity | 10–90% RH | ||
| Lifetime | 100,000 hours | ||
| Control System | Novastar / Synchronous | ||
| Certification | CE, RoHS, FCC, EMC* | ||
What is a naked eye 3D LED display?
A naked eye 3D LED display uses specialized anamorphic perspective and high-precision pixel mapping on curved or corner cabinets to create stunning 3D depth and illusions without needing 3D glasses. Perfect for immersive outdoor advertising and sports venues.
What pixel Pitch should I choose for 3D?
For outdoor naked eye 3D LED display price is competitive, client can choose pixel pitches from P3.91mm to P10.4mm, which are ideal for large-scale viewing. For indoor or close-proximity 3D experiences, we recommend P1.95 to P3.91 to ensure crisp details and seamless anamorphic effects.
How durable is the naked eye 3D LED display system?
IP65-rated front and rear protection against dust and water, GOB encapsulation for impact and moisture resistance, and a rugged die‑cast aluminum cabinet ensure long-term performance in outdoor stadium environments.
What is the typical naked eye 3D LED billboard installation timeline?
Installation timelines for naked eye 3D LED display varies based on project scale and structural requirements. Typically, structural integration of corner/curved cabinets takes 4–8 weeks, followed by 2–3 weeks of system integration and 3D content calibration.
Ready to bring immersive 3D experiences to your stadium?
Get a custom quote in 24 hours — including pixel pitch recommendation, size options, and shipping timeline.
