Stadium
Advertising
LED Display
A heavy-duty stadium advertising LED display solution engineered for permanent stadium, arena, and large-scale advertising installations. Features GOB protective technology, IP65-rated weatherproofing, 3840Hz refresh rate, 8,000+ nits sunlight-visible brightness, and front/rear service access.
Installation & Deployment
Watch the Fixed Installation LED Billboard in action — from structural mounting and cabling to live stadium operation.
Have questions? Contact our engineering team for a site visit.
Downloads & Technical Resources
Engineering specifications, structural drawings, and technical documentation.
Get In Touch
Have questions? Reach out to our engineering team directly.
We respond to all inquiries within 24 hours.
Fixed Installation Stadium LED Advertising Billboard Displays— Built for Longtime Working
Engineered for permanent outdoor deployment — advanced protective technology, IP65 to IP67 rated weatherproofing, high-brightness visibility, and flexible service access deliver unmatched durability for stadiums, arenas, and large-scale advertising. Our stadium advertising LED display suitable for various outdoor fixed applications, especially for occasions that require a rugged or lightweight, slim, easy-to-maintain and energy-saving solution. Performance front and back maintenance design, providing great flexibility for the maintenance of outdoor LED billboard displays. In addition, its excellent heat dissipation and low power consumption make great contributions to energy saving in the global green city movement.

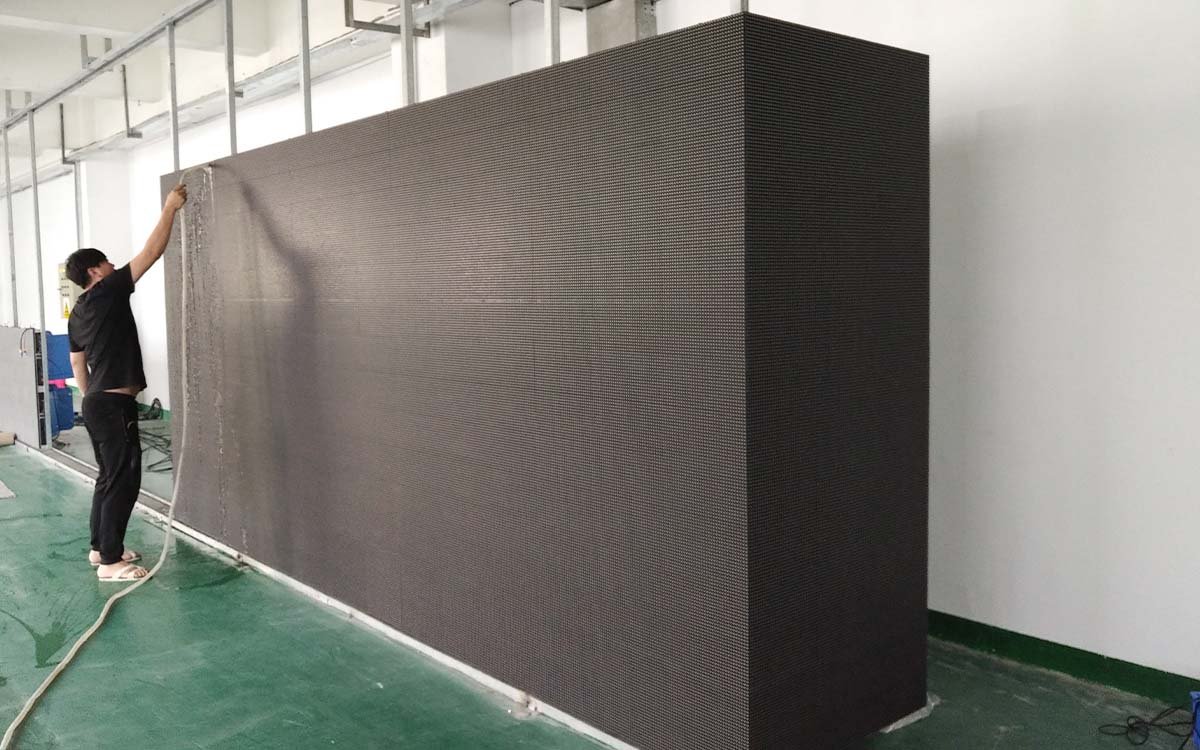

IP65 to IP67 Weatherproof
We are the waterproof stadium advertising screen manufacturer, our products fully sealed against dust and water ingress. Withstands rain, snow, extreme temperatures, and constant vibration in stadium environments.

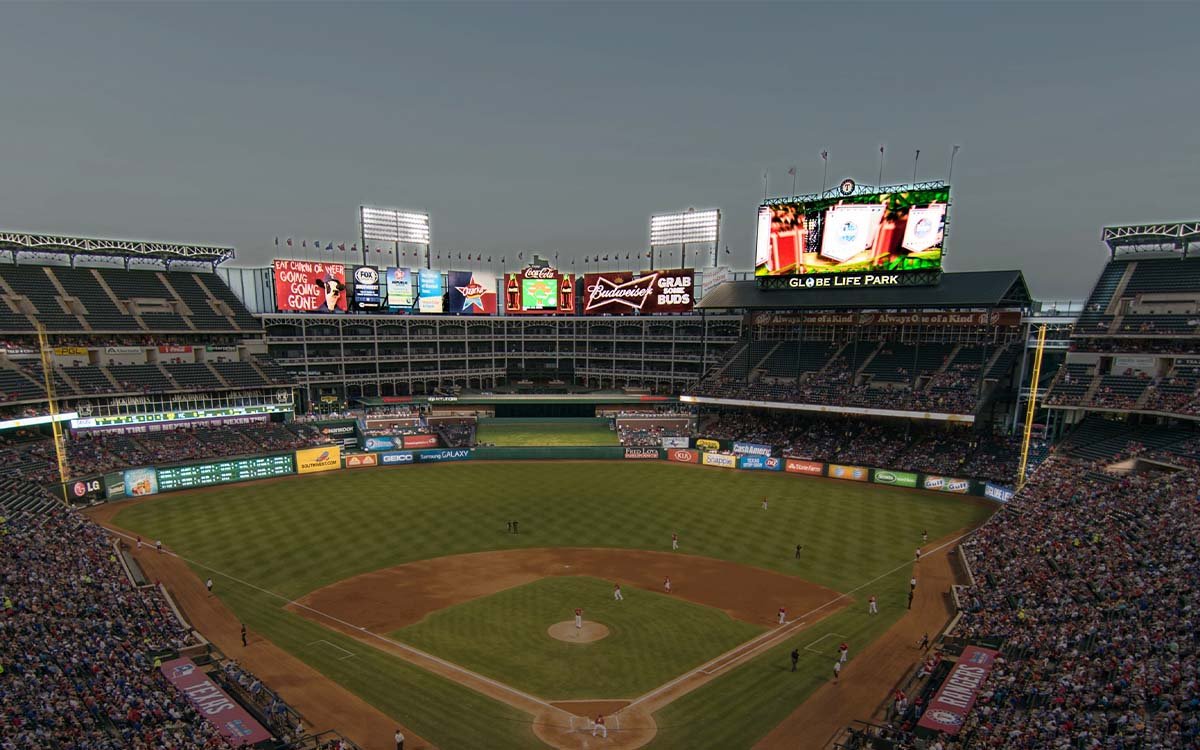

8,000+ Nits Brightness
8000nits stadium LED advertising billboard, sunlight-visible performance ensures crisp, vibrant content even in direct daylight. 160° wide viewing angle for stadium-scale audiences.

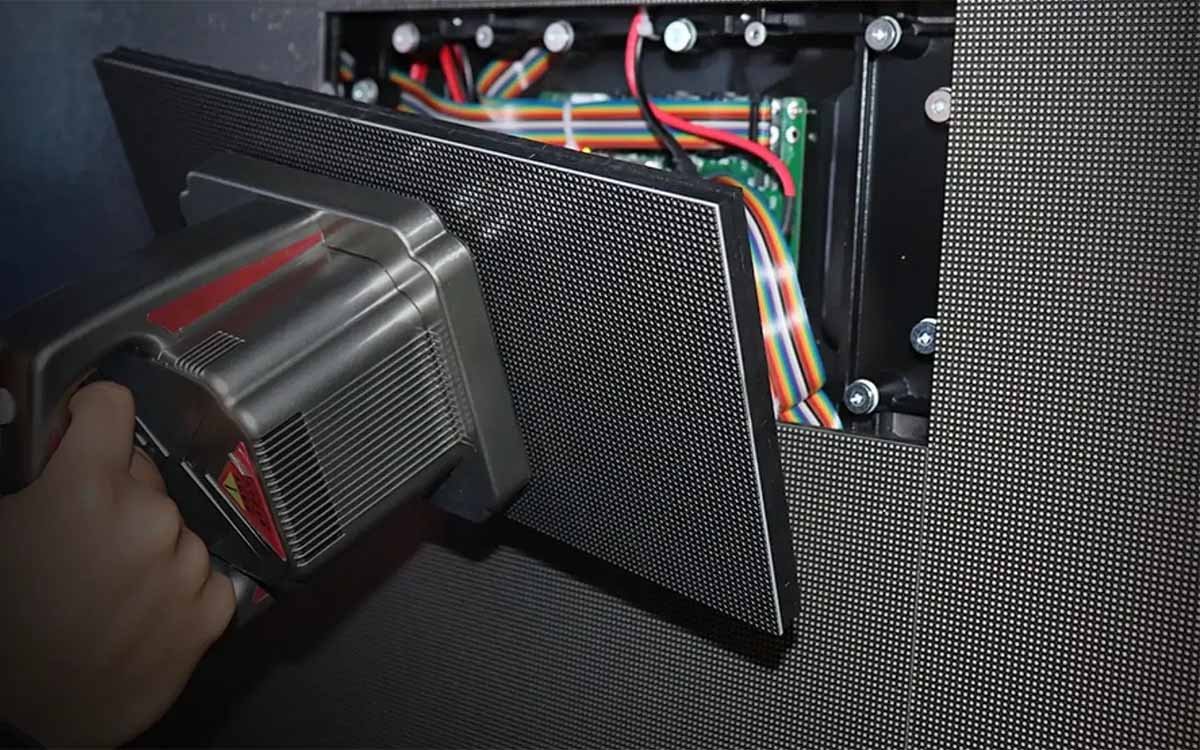

Front & Rear Access
Supports both front and rear service maintenance. Minimizes downtime and simplifies routine servicing in permanent installations.
Flexible Mounting
Supports wall mount, standing, and lifting installations. Customizable to match existing stadium structural steelwork.
Stadium Advertising LED Billboard — Technical Specifications
Our high brightness and waterproof LED displays offer a wide range of mounting possibilities, which can be easily configured in curved and right-angle configurations to create fascinating visual effects. Improved lightweight housing material design, private design LED modules are interchangeable for easy installation and maintenance. Independently interchangeable power and data units can be easily disassembled for easy maintenance.
| Parameter | Rugged Iron | Lightweight Aluminum | Freely Design | Custom Design |
|---|---|---|---|---|
| Pixel Pitch | 4 – 10mm | 2.6 – 10.4 mm | 1.95 – 3.91 mm | 1.95 – 10.4 mm |
| LED Type | SMD 3-in-1 | |||
| Brightness | 4,500 – 10,000 nits | |||
| Refresh Rate | ≥ 3,840 Hz | |||
| Contrast Ratio | 10,000:1 | |||
| Gray Scale | 16–19 bit | |||
| Viewing Angle | 170° / 160° | |||
| IP Rating | IP65 – IP67 (Front & Rear) | |||
| Input Voltage | AC 110‑240V, 50/60Hz | |||
| Max. Power Consumption | 900 W/m² | 900 W/m² | 700 W/m² | 650 W/m² |
| Avg. Power Consumption | 280 W/m² | 260 W/m² | 260 W/m² | 220 W/m² |
| Service Access | Front & Rear | |||
| Mounting Options | Wall, Standing, Lifting | |||
| Operating Temperature | -20°C to +50°C | |||
| Operating Humidity | 10–90% RH | |||
| Lifetime | 100,000 hours | |||
| Control System | Novastar / Synchronous | |||
| Certification | CE, RoHS, FCC, EMC* | |||
Integrated Stadium LED Ecosystem
Our Fixed Installation sports stadium digital advertising display is part of a comprehensive stadium ecosystem that includes:
- Content Management: Centralized cloud-based platform for real-time scheduling and remote content updates.
- Structural Integration: Custom engineered mounting solutions that integrate seamlessly with existing steelwork.
- Service & Support: On-site training, maintenance programs, and 24/7 technical support for mission-critical installations.
What is a stadium advertising LED display?
A Fixed Installation LED Billboard is a permanent outdoor LED display solution engineered for stadiums, arenas, and large‑scale advertising. It features IP65-rated weatherproofing, 6,000+ nits brightness, GOB protection, and flexible service access.
What pixel Pitch should I choose?
P4–P6 is ideal for closer viewing (perimeter boards), while P8–P10 suits large-format displays visible from 50+ meters. Our engineering team can recommend the optimal pitch based on your venue dimensions.
How durable is the system?
IP65-rated front and rear protection against dust and water, GOB encapsulation for impact and moisture resistance, and a rugged die‑cast aluminum cabinet. Lifetime rated at 100,000 hours.
What is the typical installation timeline?
Installation timelines of stadium advertising LED display vary based on project scale and site conditions. Typically, structural integration takes 4–6 weeks, followed by 2–3 weeks of system integration and testing. Our project management team provides a detailed timeline during the planning phase.
Ready to elevate your stadium with our LED display solutions?
Get a custom quote in 24 hours — including pixel pitch recommendation, size options, and shipping timeline.
