Lightweight LED Perimeter Billboard Cabinet SV2 – Outdoor Digital LED Billboard Display for Advertisings

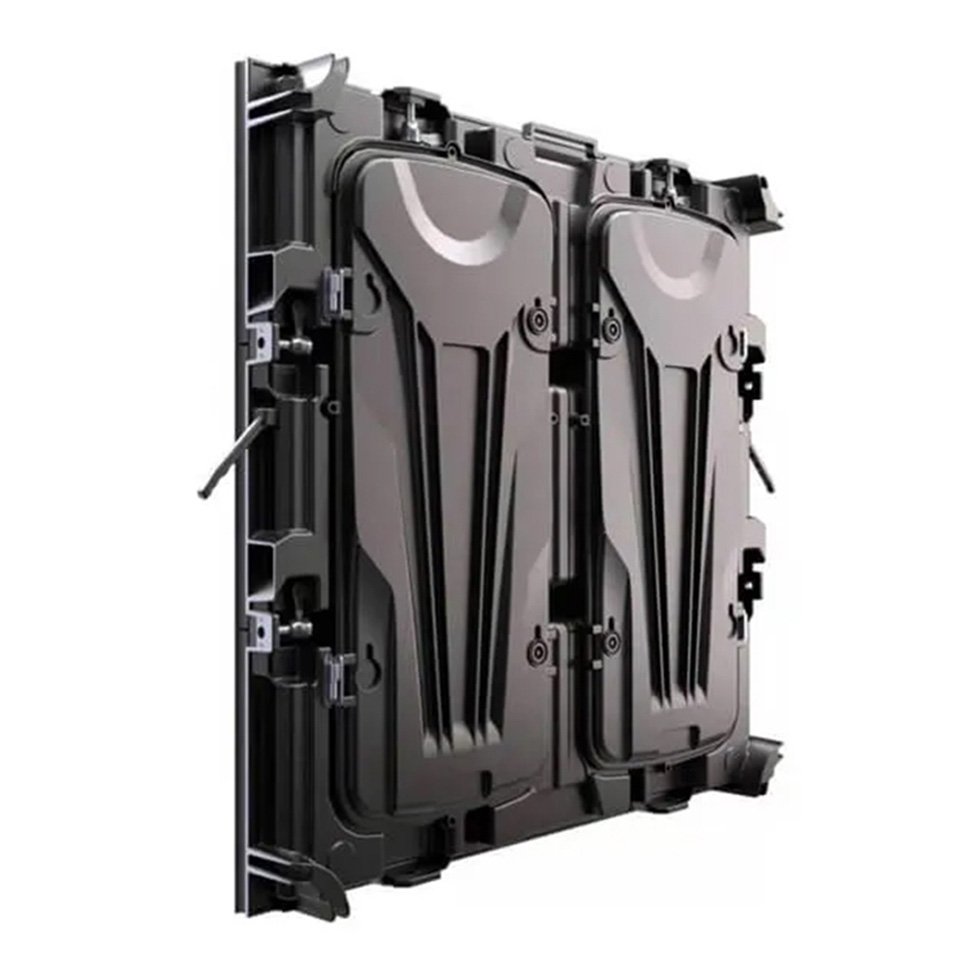

SoarLume’s die-cast aluminum Lightweight LED Perimeter Billboard cabinet lies in their unique structural design. The die-cast aluminum process significantly reduces the weight of the box, which is over 30% lighter than traditional steel structures, while maintaining good strength and stability.

This Lightweight LED Perimeter Billboard cabinet design is not only convenient for transportation and installation, but also reduces the load on the building structure. In addition, the die-cast aluminum casing has excellent heat dissipation performance, which can effectively extend the service life of LED modules.

Lightweight LED Perimeter Billboard Cabinet OB2

Flexible Adaptation to Diverse Application Scenarios

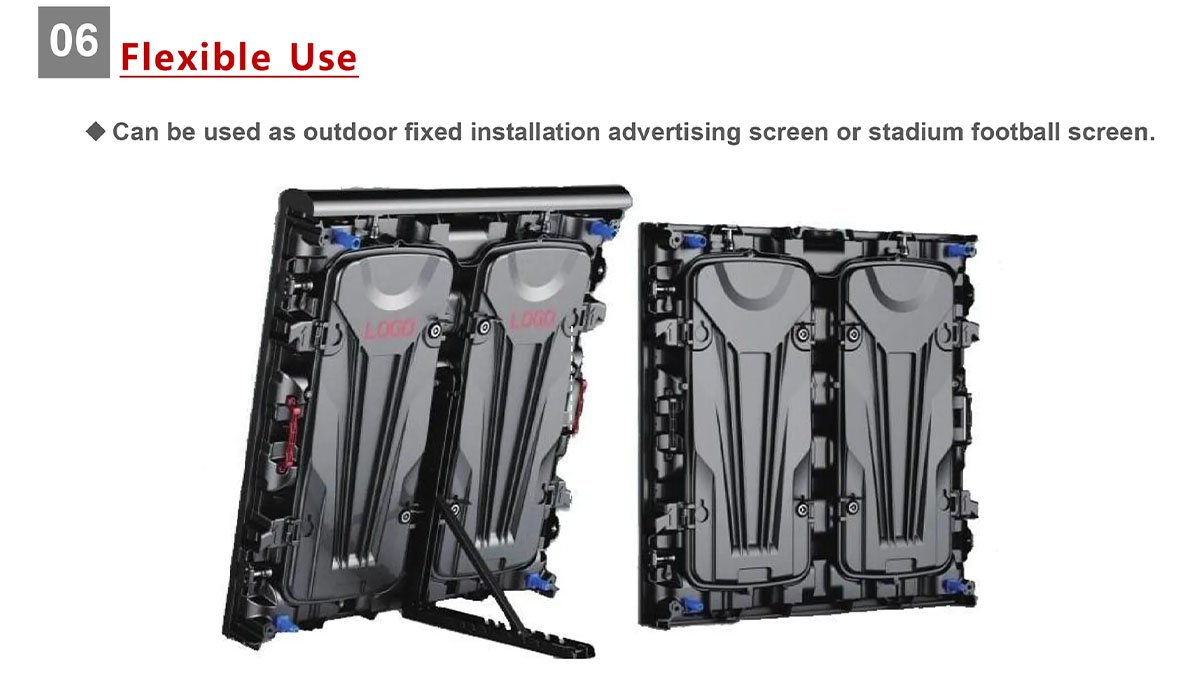

From indoor stages to outdoor advertisements, lightweight die-cast aluminum LED Perimeter Billboard cabinet can easily handle them.

Its modular design supports fast splicing, meeting the display needs of different sizes and shapes. In exhibition displays, sports venues, and other scenes, this Lightweight LED Perimeter Billboard display has become an ideal choice due to its lightweight and easy installation characteristics. Meanwhile, its excellent protective performance is also suitable for various complex environments.

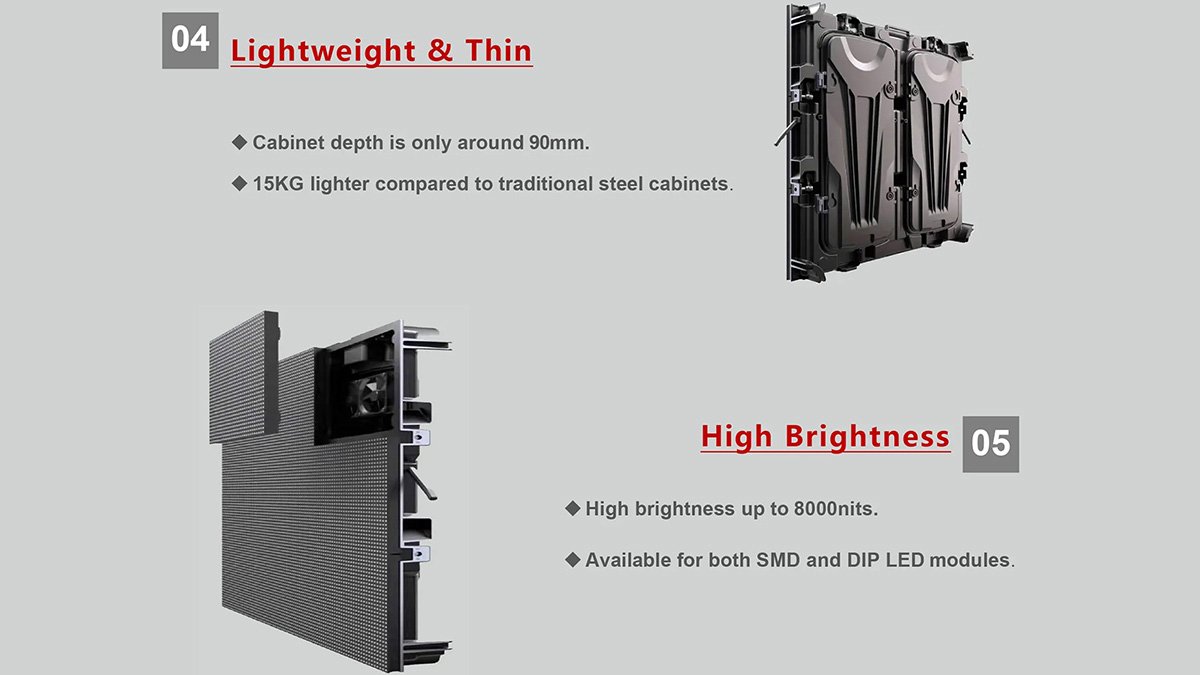

Lightweight and High Strength

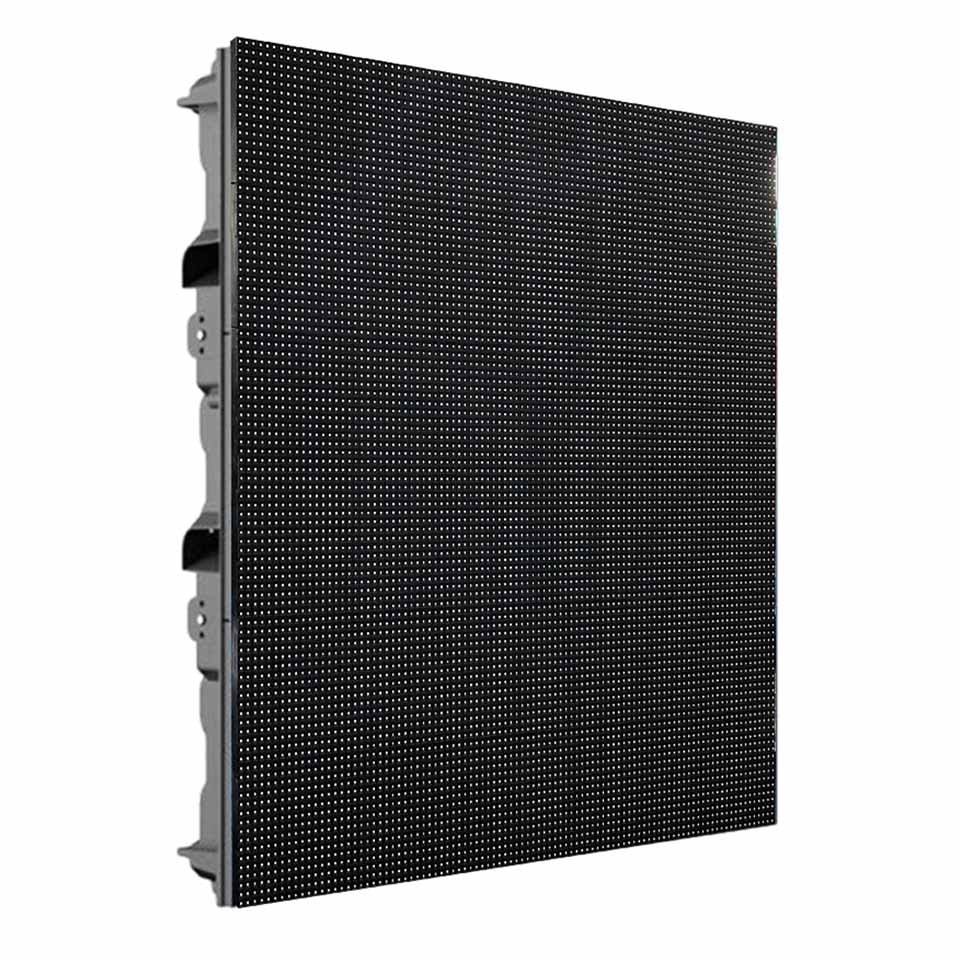

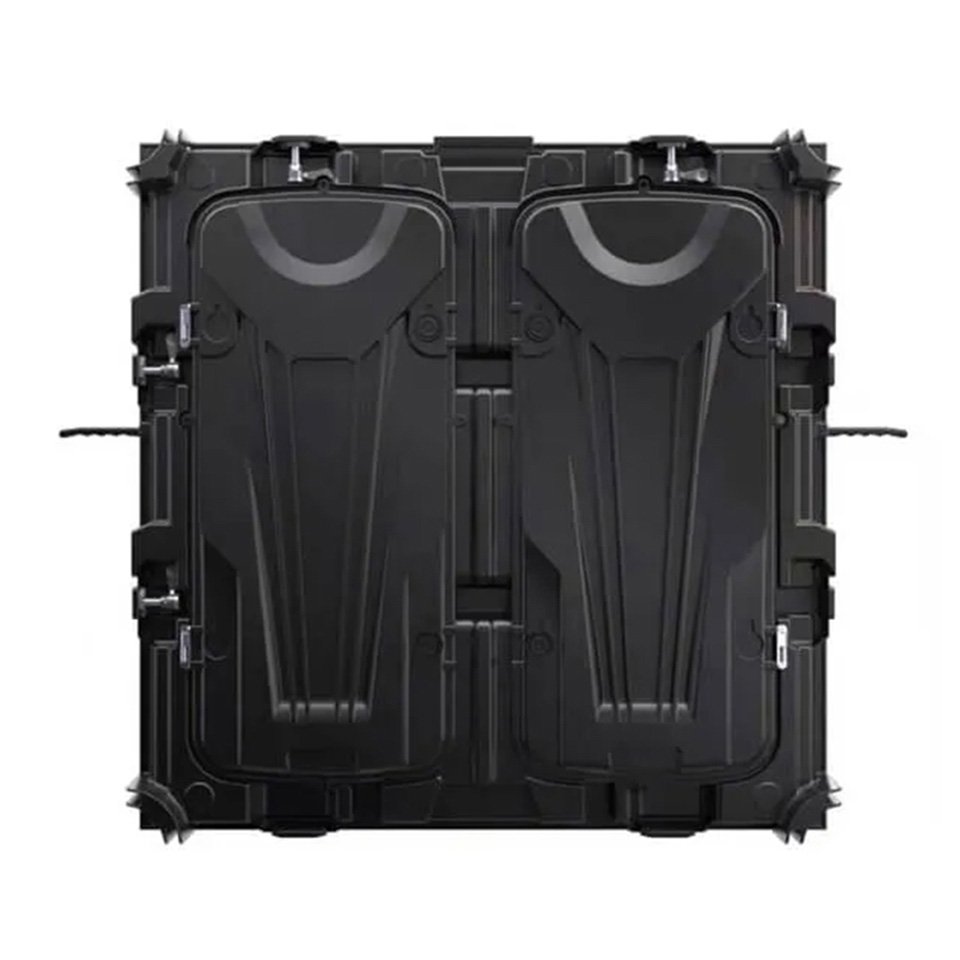

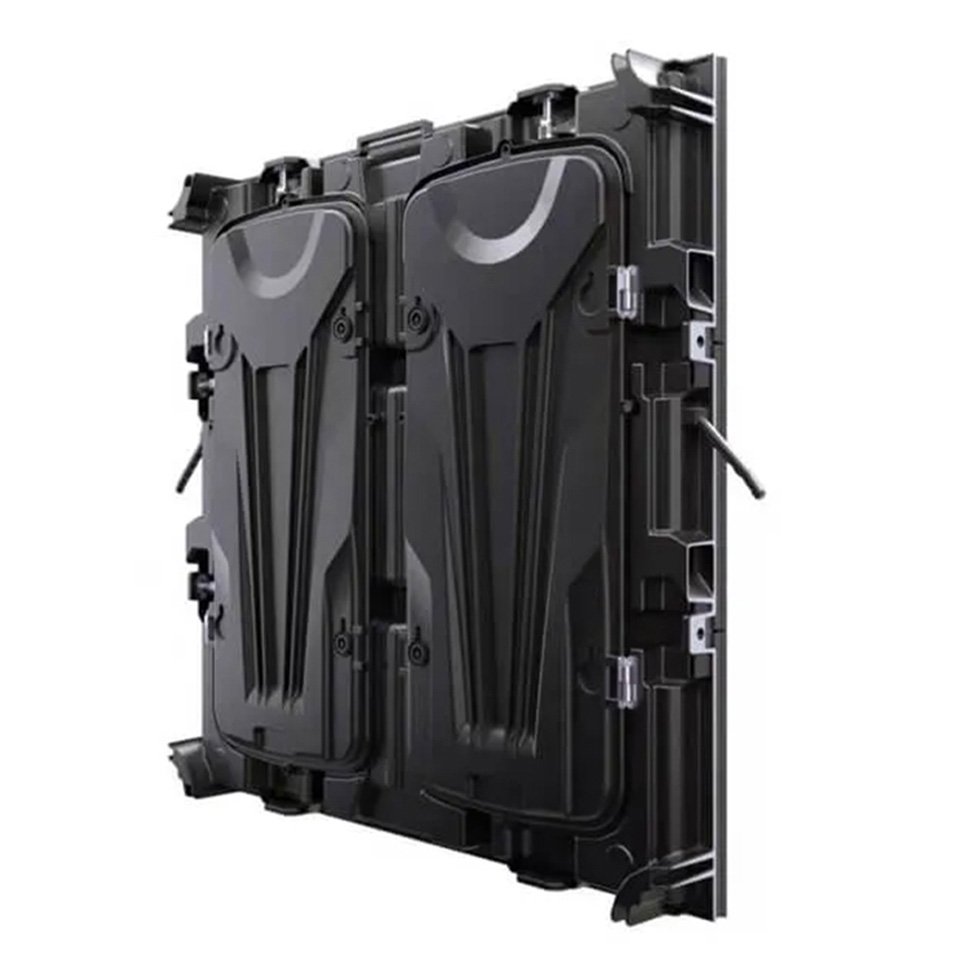

The Lightweight LED Perimeter Billboard cabinet is made of die-cast aluminum alloy, which is lightweight (about 32kg/cabinet) and has high strength.

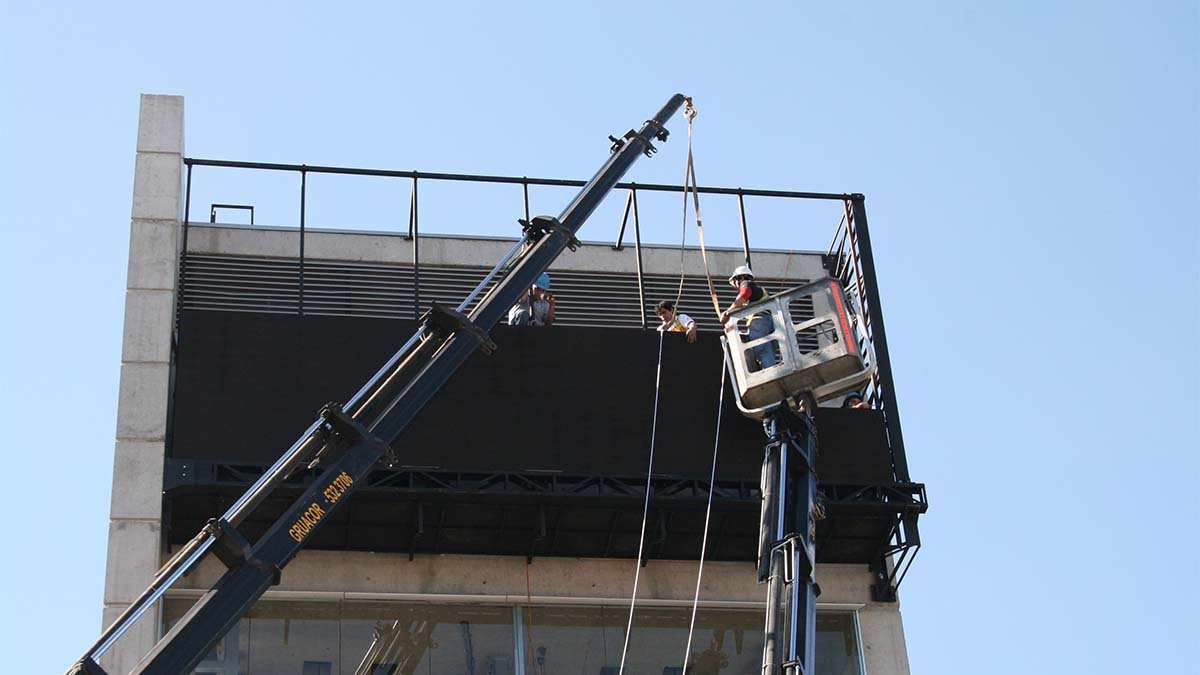

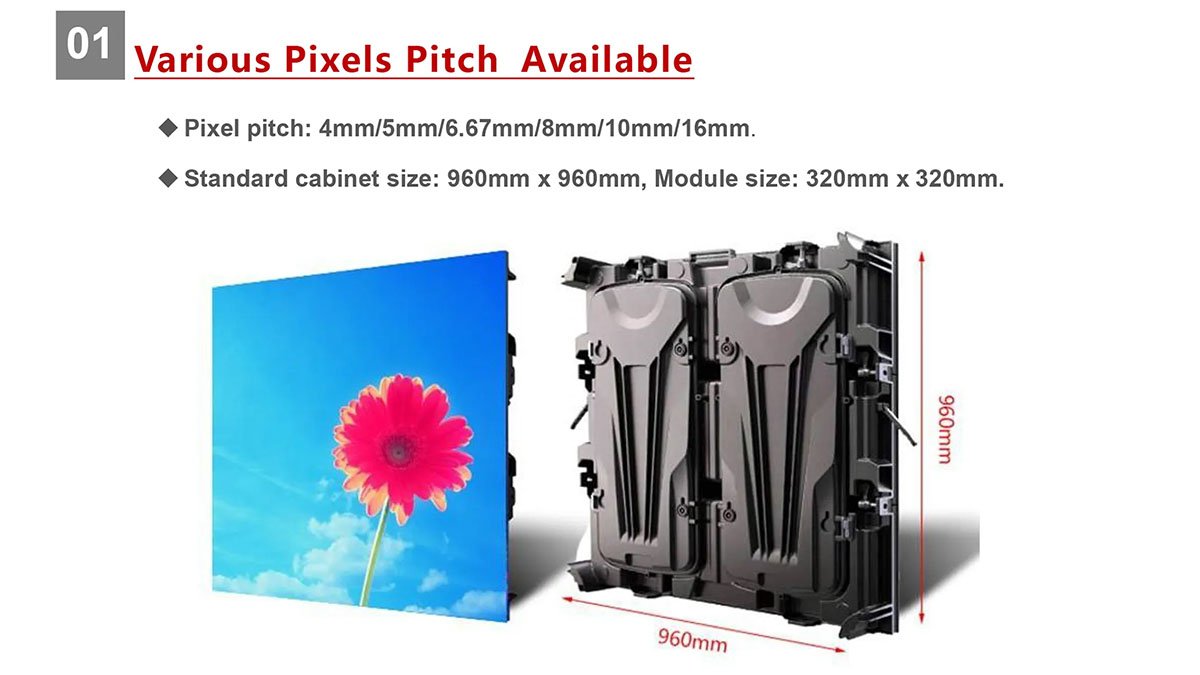

It supports lifting structures, is firmly installed, and is easy to transport. Quick installation and modular design, with a box size of 960mm × 960mm, supporting quick assembly in 10 seconds. The modular design is compatible with multiple point spacing specifications (such as P4-P10), with high seam accuracy and basic seamless splicing.

Lightweight LED Perimeter Billboard Cabinet OB2 — 30% Lighter Die-Cast Aluminum | 6500-10000 Nits | IP65 | P4-P10

Concealed Design of Signal and Power Supply

The signal and power connections between the boxes adopt a concealed design, with no external cable traces after installation, suitable for fixed installation scenarios.

Heat Dissipation and Low Power Consumption

By using aluminum heat dissipation plates and patented heat dissipation structures, low-noise operation can be achieved without the need for an external fan, and power consumption is lower than traditional products.

High Contrast Display

The Lightweight LED Perimeter Billboard Cabinet, LED display models support black light mounting technology to improve display contrast and white balance consistency, resulting in a cleaner appearance when the screen is turned off.

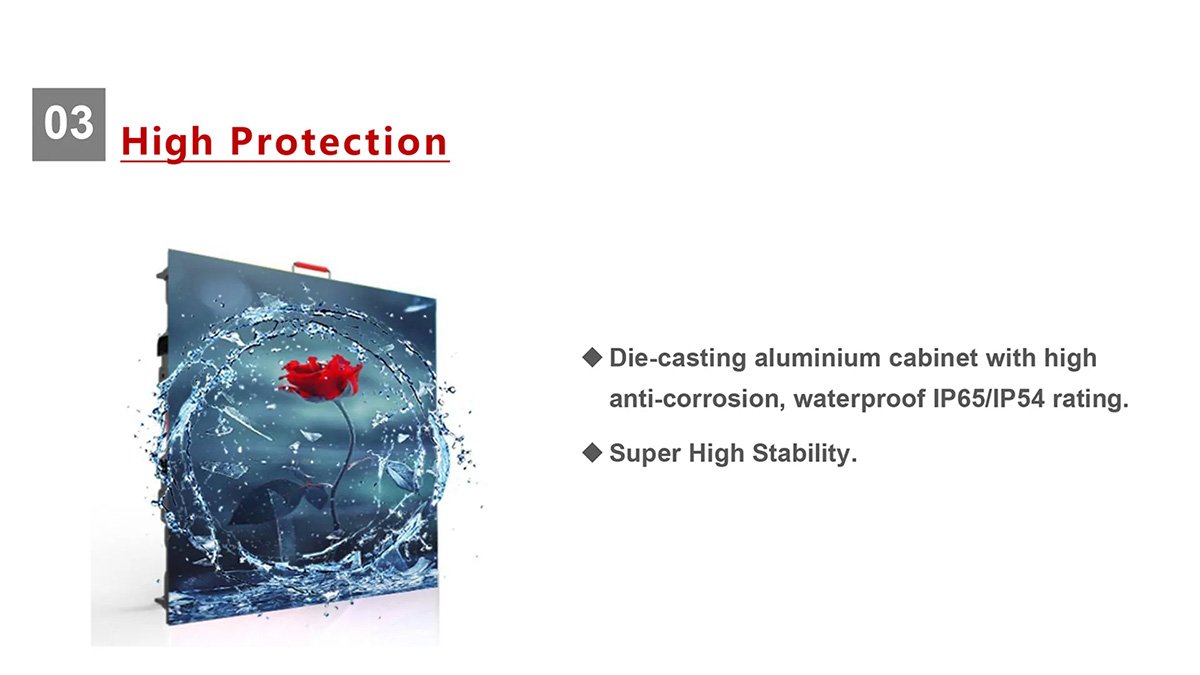

Durability and Maintenance

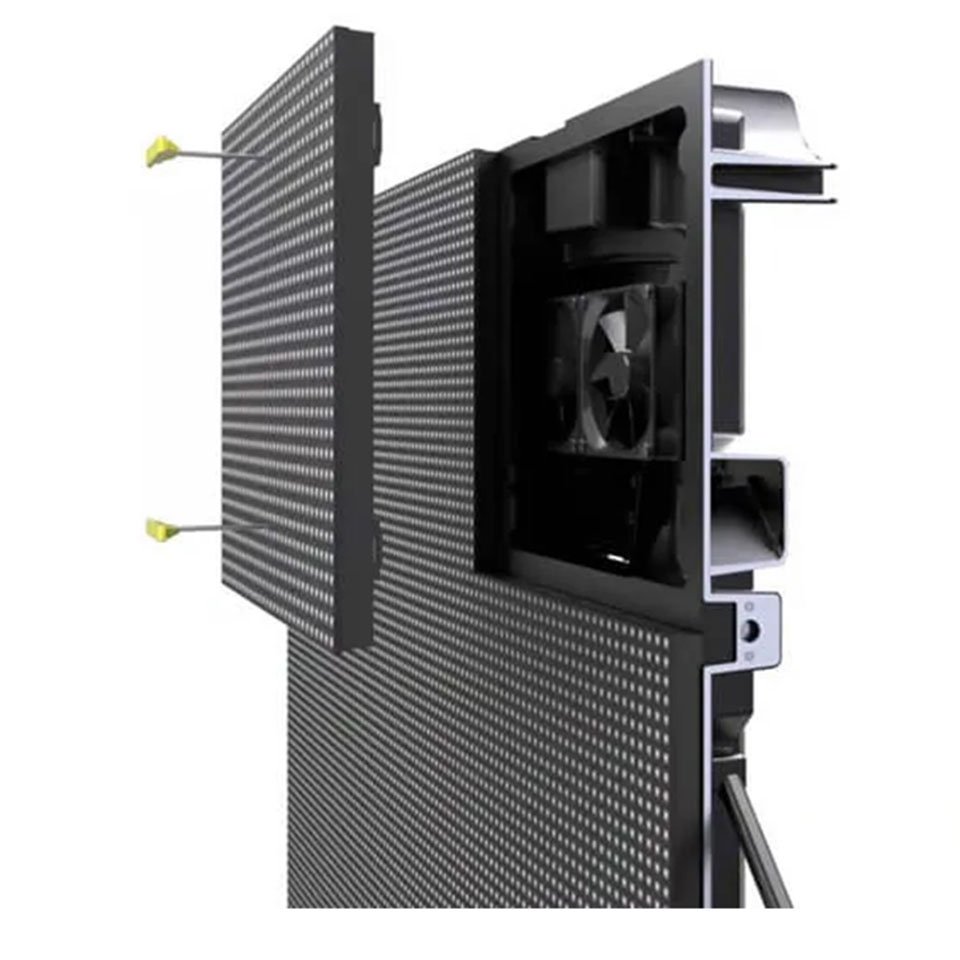

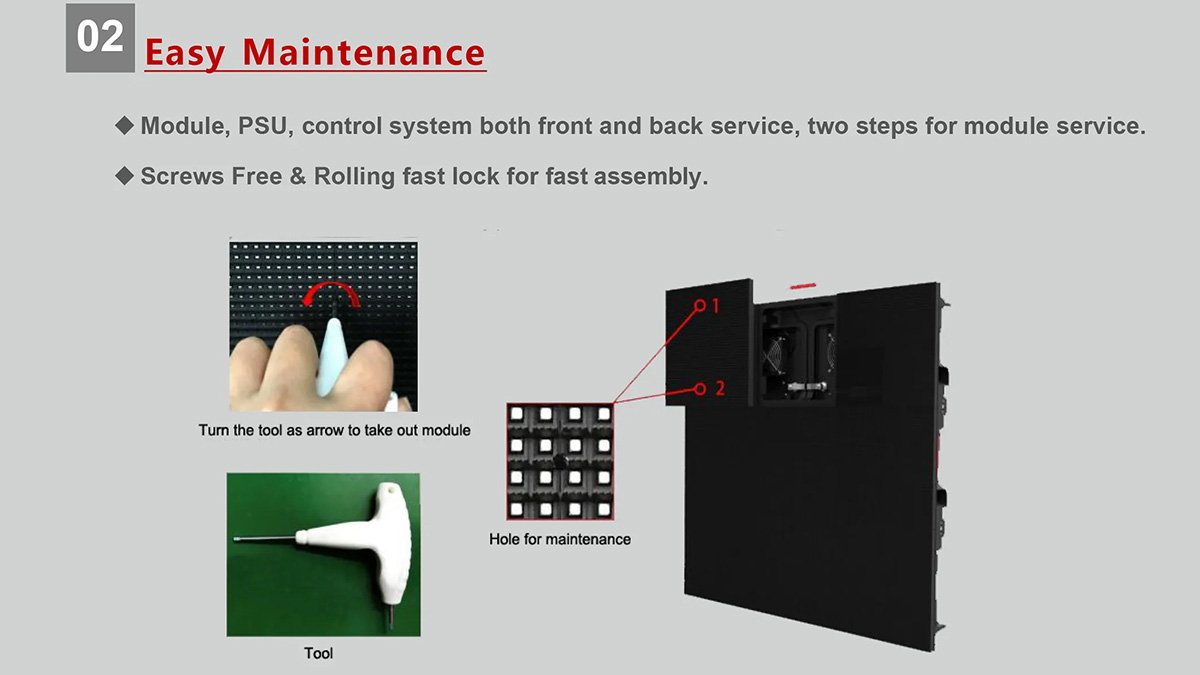

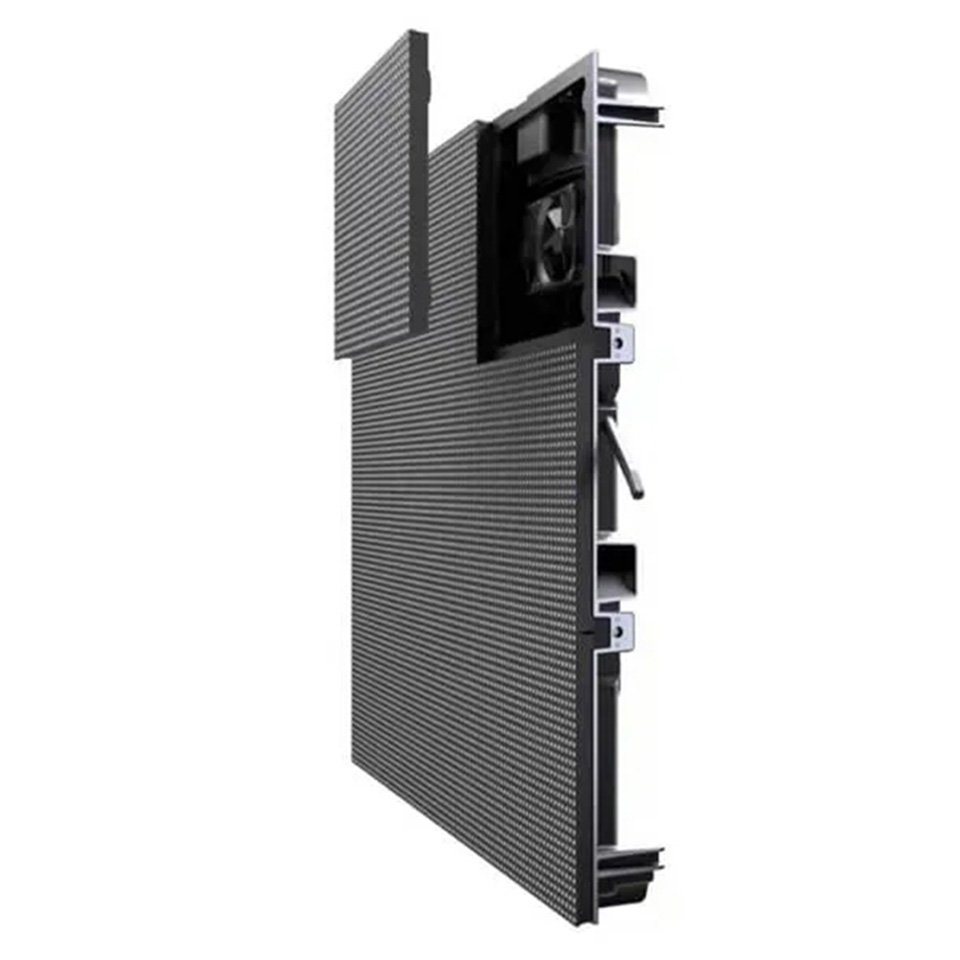

IP65 protection level, with waterproof and dustproof performance. Front maintenance design, LED modules, or power components can be replaced without disassembling the box.

Lightweight LED Perimeter Billboard Cabinet OB2 — 30% Lighter Die-Cast Aluminum | 6500-10000 Nits | IP65 | P4-P10

More Features of Lightweight LED Perimeter Billboard Cabinet SV2

High Brightness and Low Power Consumption

The outdoor Lightweight LED Perimeter Billboard adopts high-brightness light-emitting diodes, with a single light brightness of over 6500 cd/m², ensuring clear display even in strong light environments such as direct sunlight.

Ultra Modern Design

Die-casting lightweight aluminum material. Lightweight & reliable. Project connection. Always connected to your digital LED billboard!

Lightweight LED Perimeter Billboard OB2 — 30% Lighter Die-Cast Aluminum | 6500-10000 Nits | IP65 | P4-P10

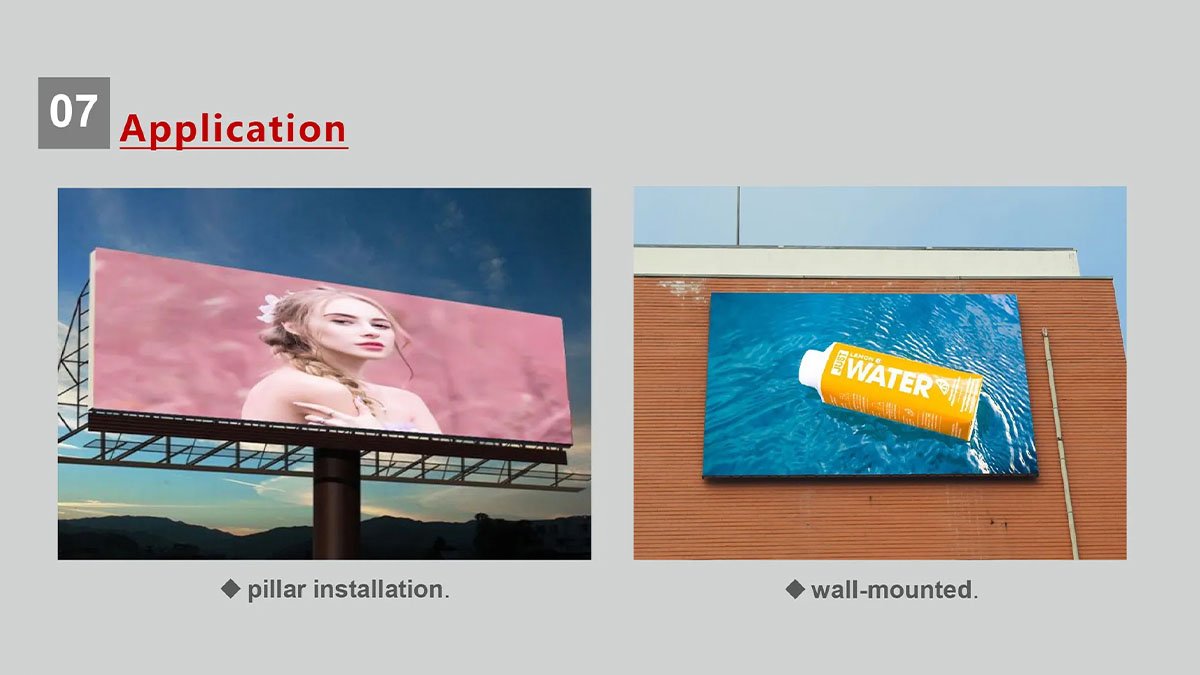

Widely Applications of Lightweight LED Perimeter Billboard Cabinet

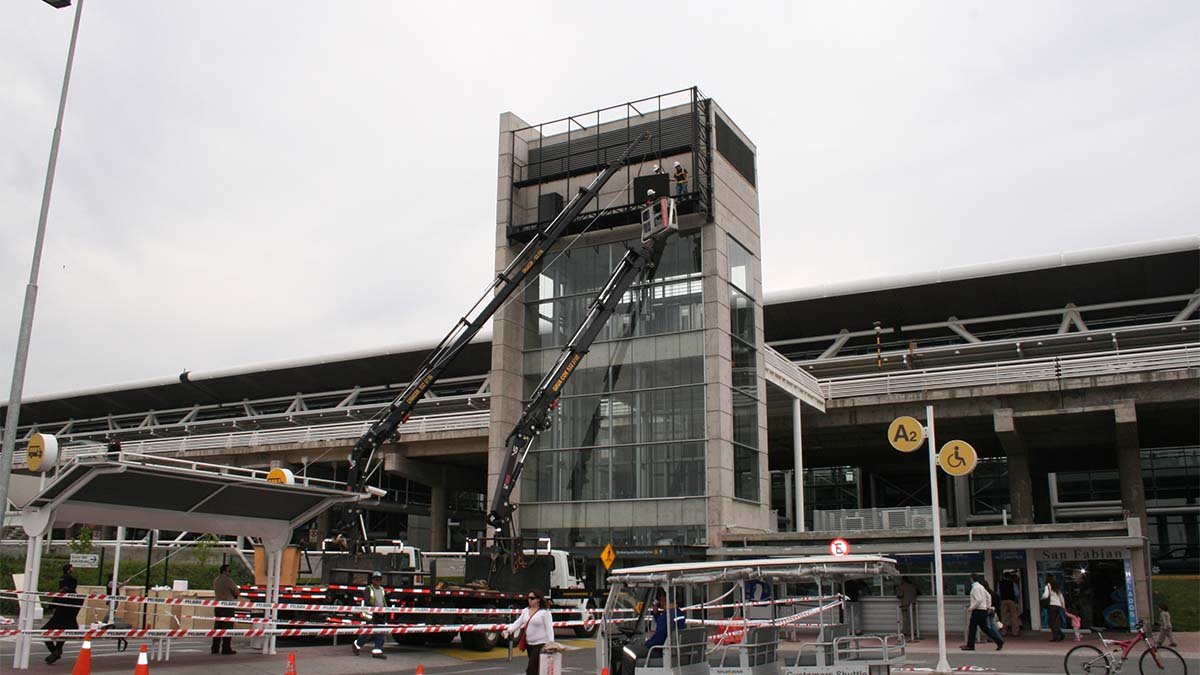

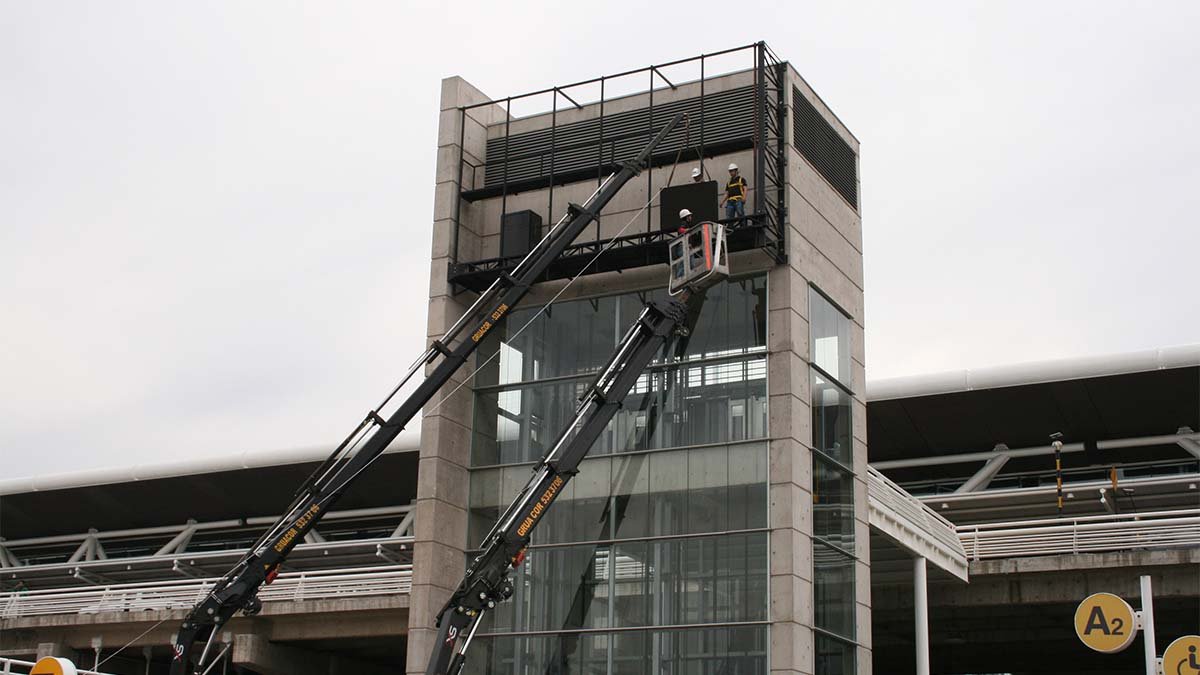

Outdoor Lightweight LED Perimeter Billboard Cabinet, as the new favorite of future outdoor display advertising media, are widely used in finance, taxation, industry and commerce, postal and telecommunications, sports, advertising, factories.

And the LED Perimeter Billboard Cabinet also used for mines, transportation, education systems, stations, docks, airports, shopping malls, hospitals, hotels, banks, securities markets, construction markets, auction houses, industrial enterprise management, and other public places. Used for media display, information dissemination, traffic guidance, creative display, and other purposes.

Lightweight LED Perimeter Billboard Cabinet SV2 - Outdoor Digital LED Billboard Display for Advertisings

Lightweight LED Perimeter Billboard Cabinet – Summary of Key Features

Die-Casting Lightweight Aluminum Material — 30% Lighter Than Steel
High Strength Cabinet — 32kg Weight with Lifting Support
Quick Assembly in 10 Seconds
Modular Design Compatible with P4-P10 Pixel Pitch
Concealed Signal and Power Design — No External Cables
Aluminum Heat Dissipation Plates with Patented Structure
Low-Noise Fanless Operation
Lower Power Consumption Than Traditional Products
Black Light Mounting Technology for Enhanced Contrast
IP65 Waterproof and Dustproof
Front Maintenance Design — No Box Disassembly Required
1920~3840 Hz High Refresh Rate
6500~10000 Nits High Brightness
High Quality LED Chips, Long Lifetime
3 Years Quality Warranty Date
Need to Contact Us to Get Project Quotation
Ultra Reliable Design
Best Selling In The Past Years
Efficient Sales Service
Benefit Relationship Connection
Always Connected to Your Digital LED Billboard!
15~25 Days Production!

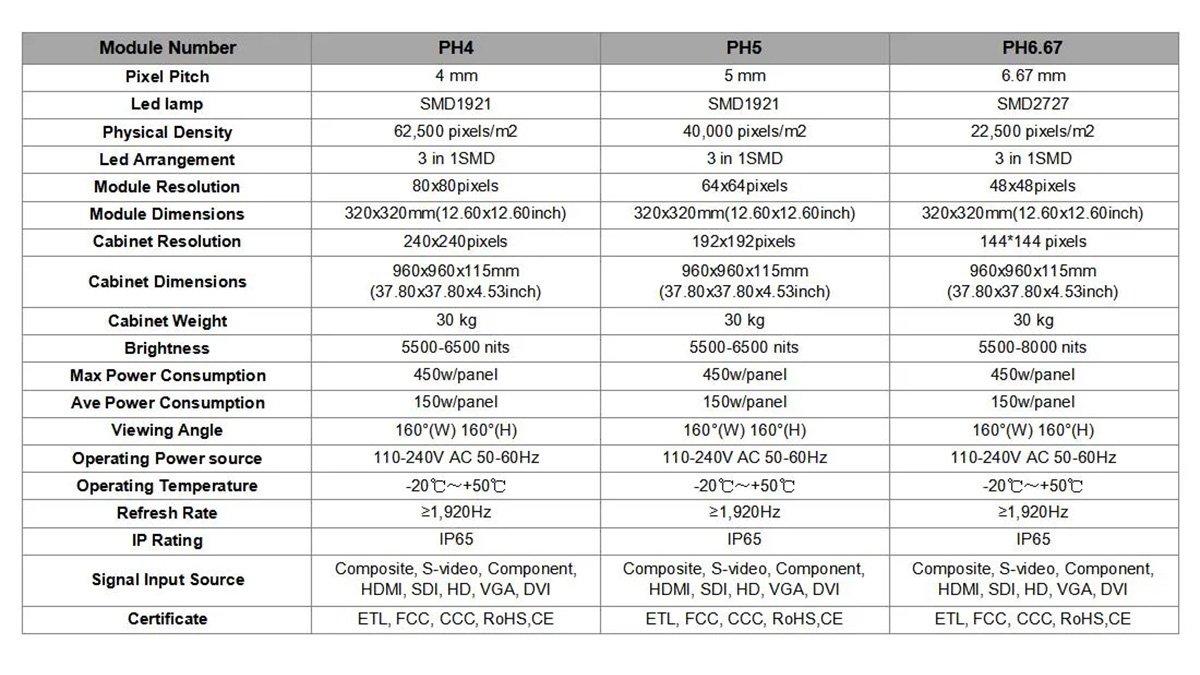

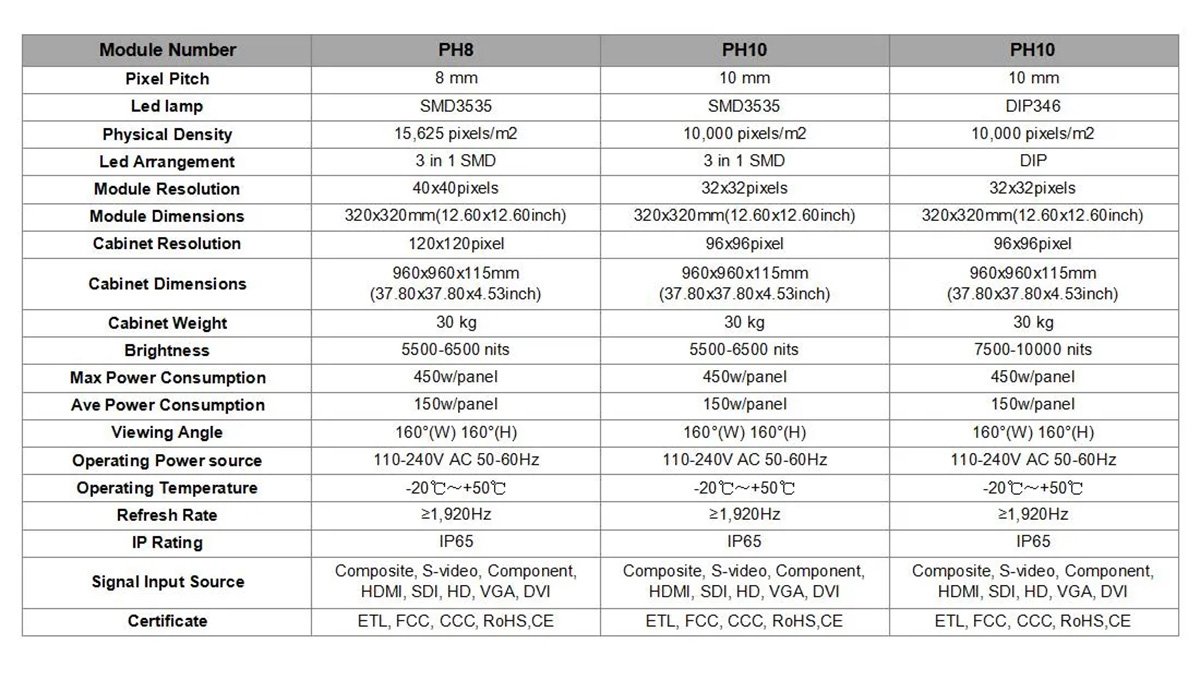

Outdoor Lightweight LED Billboard Cabinet Display SV2 – Technical Specification

Specification	SV2 P4	SV2 P5	SV2 P6	SV2 P8	SV2 P10
Pixel Pitch	4 mm	5 mm	6 mm	8 mm	10 mm
LED Lamps	SMD1921	SMD1921/2727	SMD2727	SMD3535	SMD3535/DIP346
Cabinet Size	L960 × W960 mm
Cabinet Weight	32 kg
Protection Level	IP65 (Front & Rear)
Refresh Rate	1920 ~ 3840 Hz
Brightness	6500 ~ 10000 nits
Power Input	110V – 230V AC
Max Power/Cabinet	900 Watt
Module Size	192 × 192 mm / 320 × 160 mm
Module Type	Front Service LED Module
Cabinet Material	Die-Cast Aluminum Alloy
Cabinet Color	Black (Customized colors available*)
Heat Dissipation	Aluminum Plates + Patented Structure (Fanless)
Viewing Angle	H: 140° / V: 140°
Maintenance	Front Service (No Box Disassembly)
Installation	Lifting / Fixed Mounting / Wall-Mounted

Why Choose SV2 Series – Lightweight LED Perimeter Billboard Cabinet

30% Lighter Than Traditional Steel — Die-cast aluminum process reduces cabinet weight to 32kg while maintaining excellent strength and structural stability
Superior Heat Dissipation Performance — Aluminum heat dissipation plates with patented structure enable fanless, low-noise operation and extend LED module lifespan
Concealed Cable Design — Signal and power connections hidden within the cabinet eliminate external cable traces for clean, professional fixed installations
6500-10000 Nits Sunlight Readable — High-brightness LEDs ensure clear visibility even in direct sunlight, critical for outdoor advertising effectiveness
10-Second Quick Assembly — Modular 960×960mm cabinet design with high seam accuracy enables rapid installation and basic seamless splicing
Flexible Pixel Pitch Range — Compatible with P4-P10 specifications to match viewing distance, content detail, and budget requirements
Front Maintenance Without Disassembly — LED modules and power components can be replaced from the front without removing the entire cabinet
Black Light Technology Enhanced Contrast — Improved display contrast and white balance consistency deliver cleaner appearance when screen is off
Lower Power Consumption — Patented heat dissipation and efficient design reduce energy costs compared to traditional outdoor LED displays
3-Year Quality Warranty — Comprehensive warranty coverage with lifetime technical support via email and remote diagnostics
