Description
High Definition HD Outdoor LED Billboard OB5 – Outdoor Fixed Installation LED Display Visual Solution

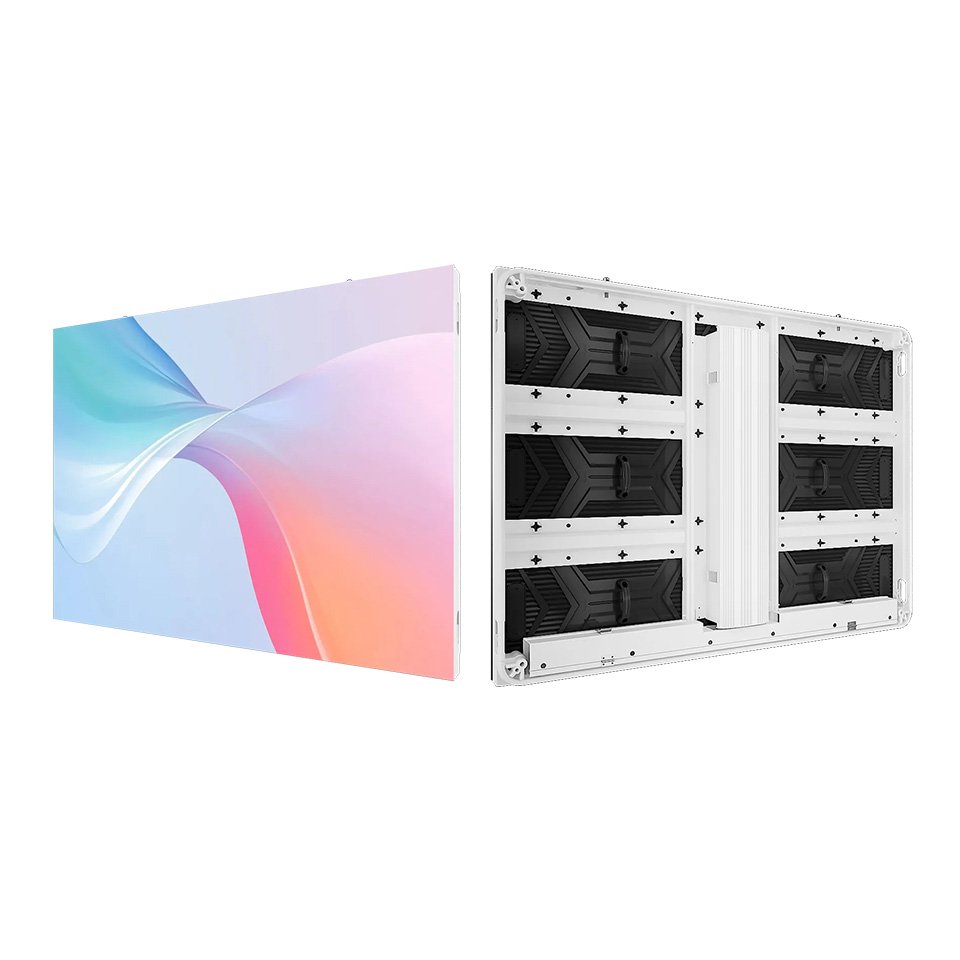

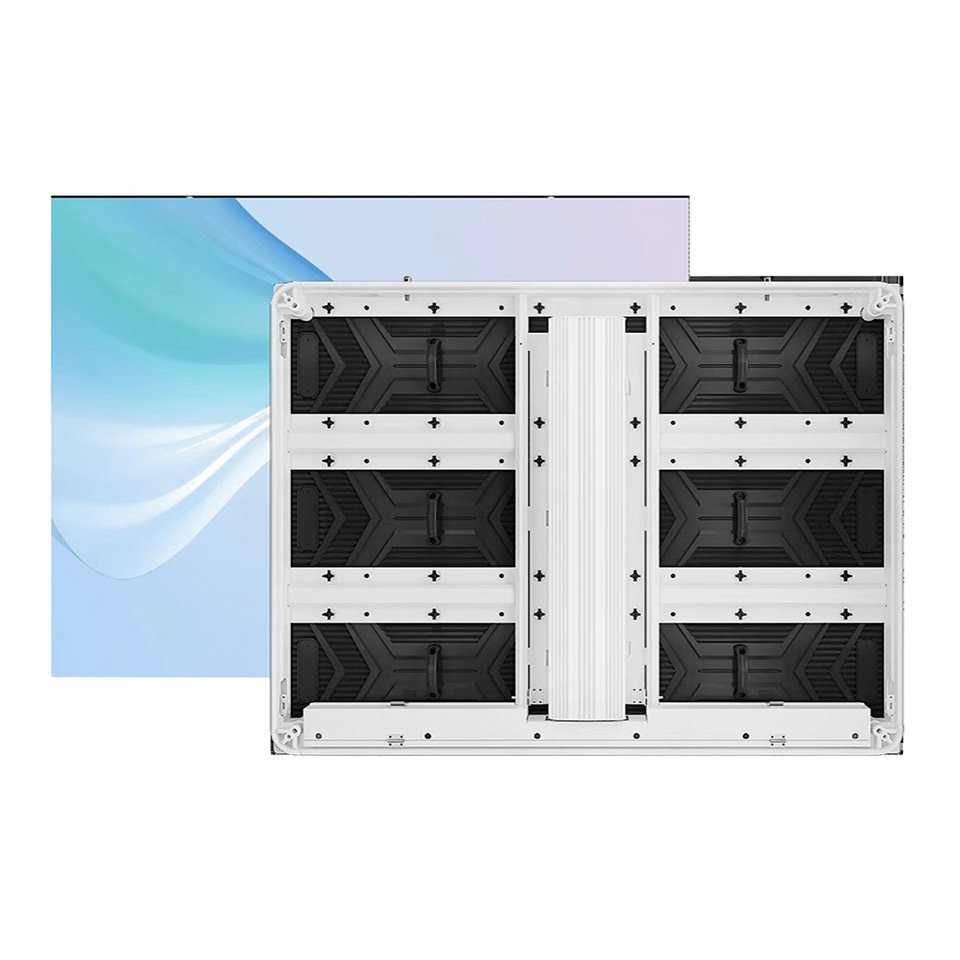

SoarLume’s high definition lightweight HD Outdoor LED Billboard LED Display is a quick-detachable LED screen panel designed with a die-cast aluminum casing, featuring ultra-light (5kg), ultra-thin, and quick installation characteristics. It supports multiple installation methods, such as lifting and seat mounting, and is suitable for various indoor and outdoor scenarios.
Special Design for UHD Visual Solutions
Small pixel pitch HD Outdoor LED Billboard panel is a general term for a complete system, including LED display system, high-definition display control system, and heat dissipation system. The HD Outdoor LED Billboard, small pitch LED display panel adopts pixel level point control technology to achieve state control of the brightness, color reproduction, and uniformity of the display screen pixel units. Automatic reflow soldering technology is used throughout the production process of the display screen, eliminating the need for manual post soldering.

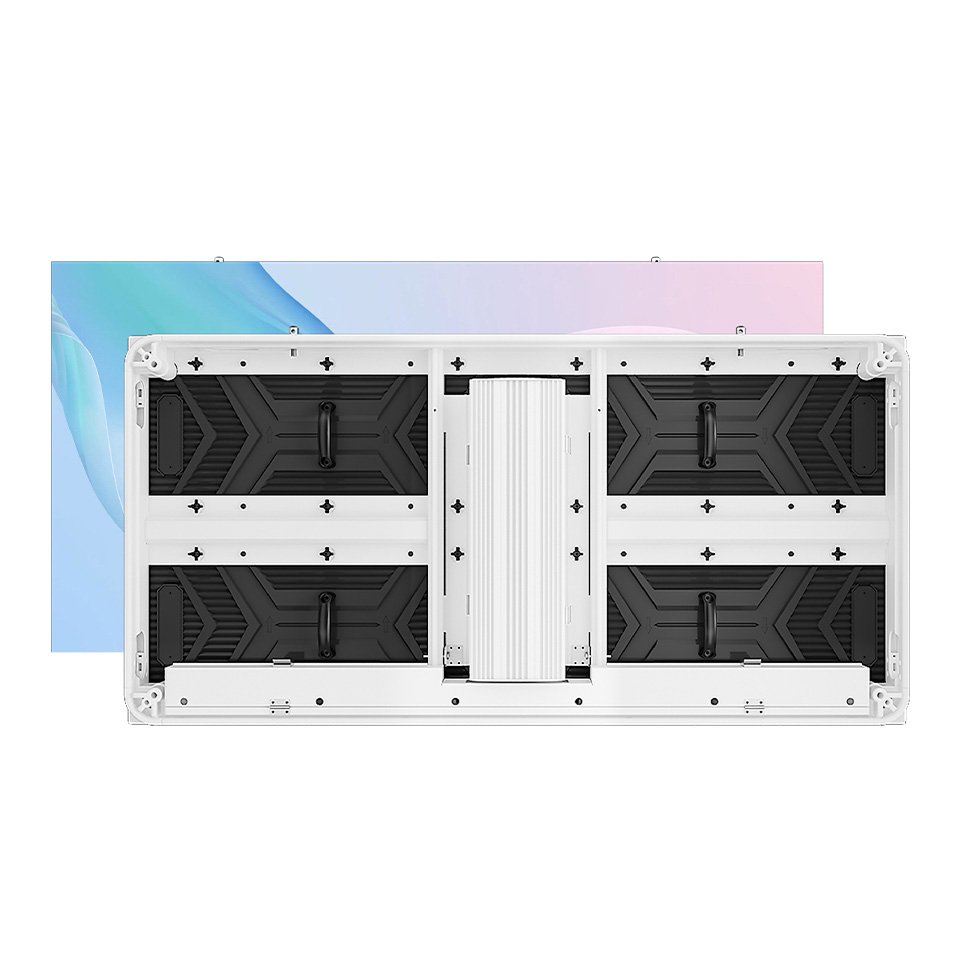

Slim & Light Weight
Die-casting aluminum lightweight LED cabinet: 25kg/㎡, slim 97mm thickness. Easy to splicing a 1080P, 4K, 8K large LED video wall.
The dot pitch of the screen is small, and the resolution per unit area is high. It can display higher definition graphic images and videos, as well as more channels of videos and image frames, especially in the application of image stitching, which can achieve seamless and arbitrary large-area stitching. Of course, in order for small pitch LED displays to achieve ideal display effects, the auxiliary role of video processors is indispensable.
High Brightness
Brightness from 3500-10000 nits, low power consumption design.

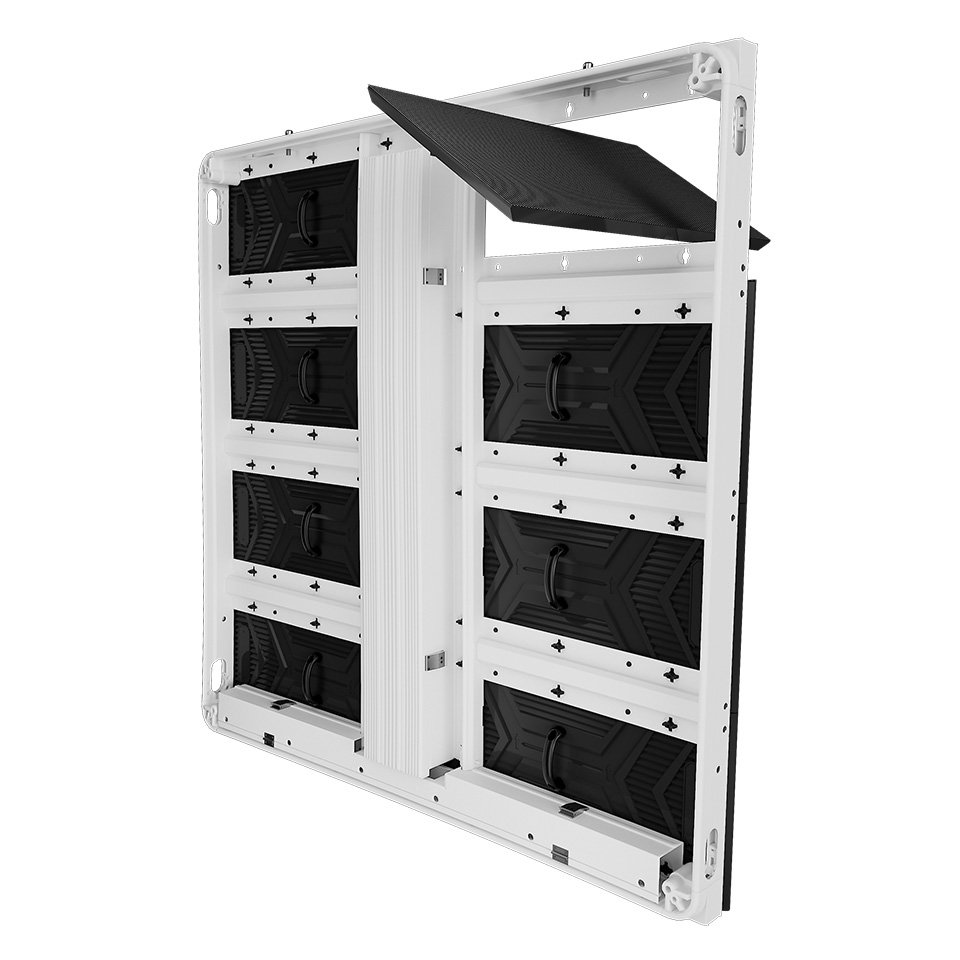

Easy Maintenance

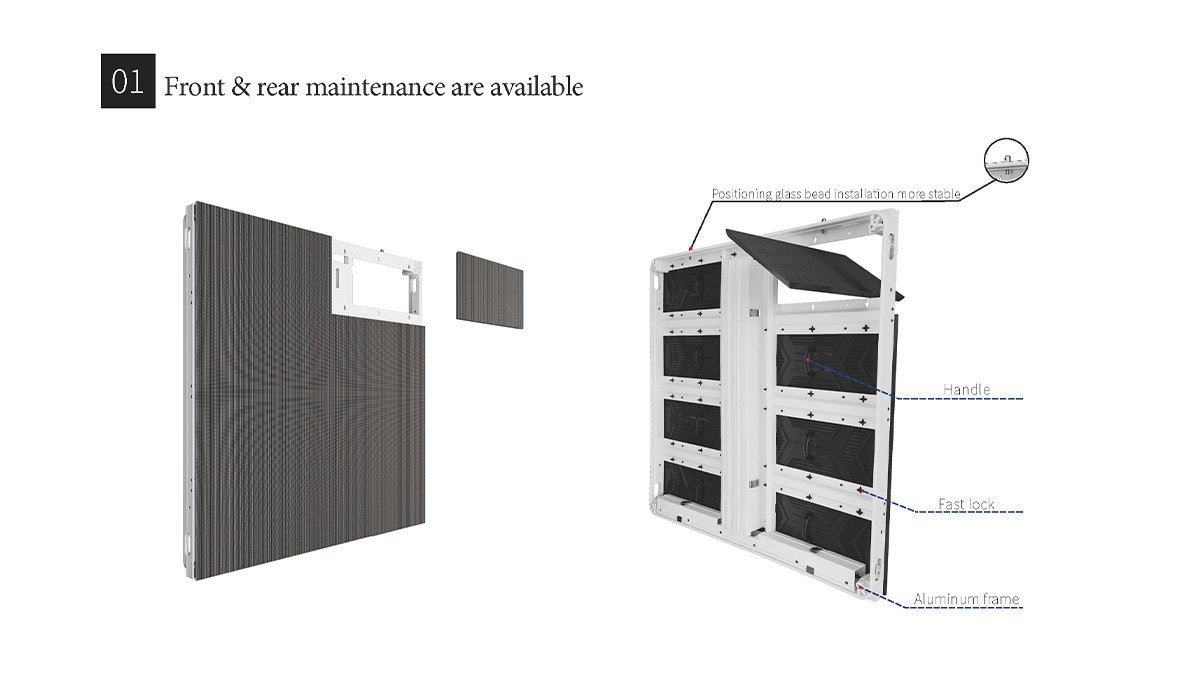

100% front & rear maintenance to save labor cost, and suit different application areas. Fully modular design for quick and easy assembly and repair.

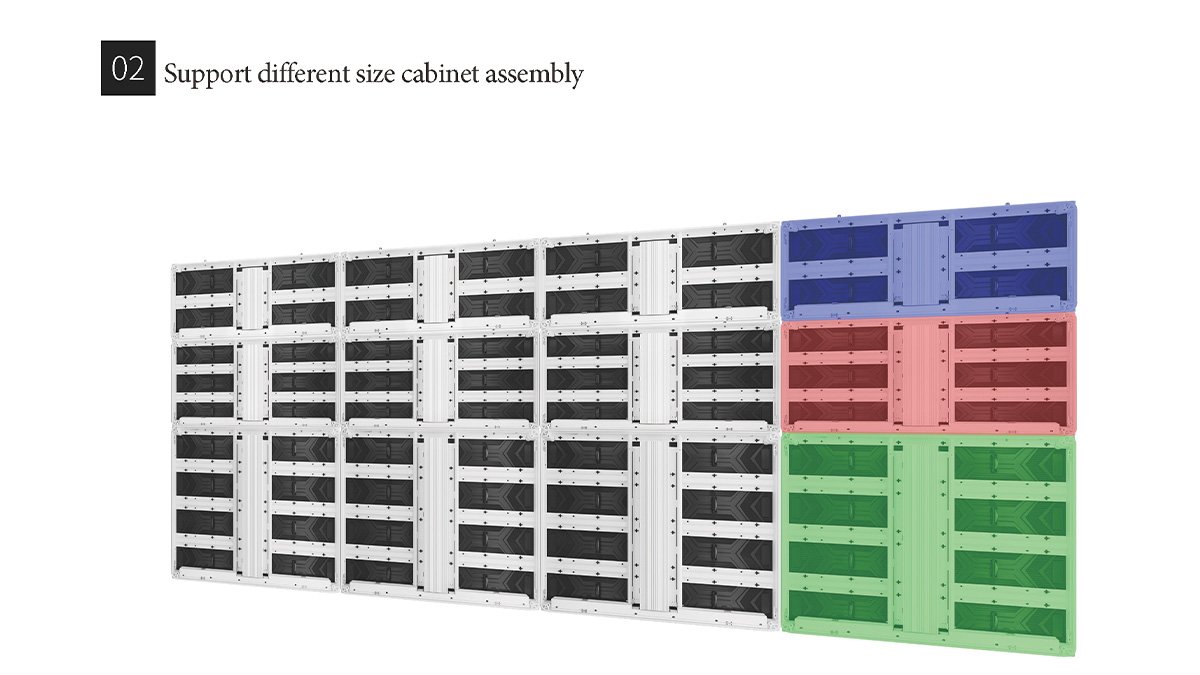

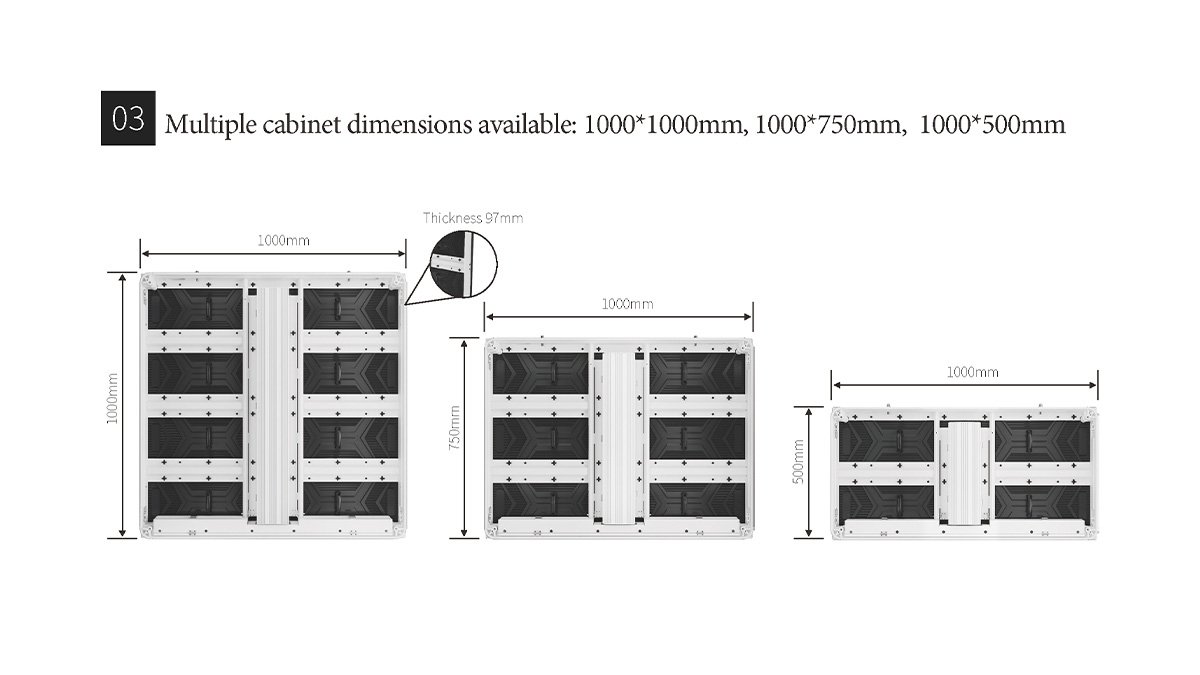

Support Various Size Cabinet Assembly

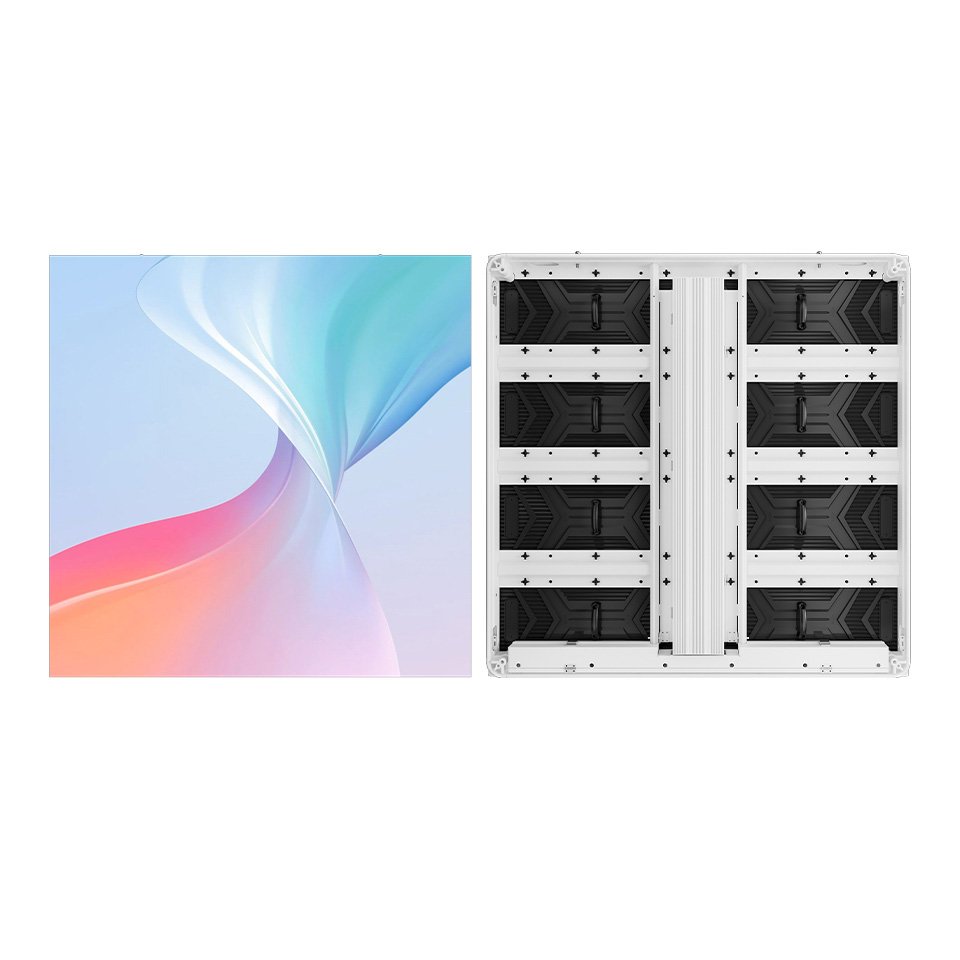

1000×1000mm, 1000×750mm, 1000×500mm, 500×500mm for large outdoor LED display like roof type, wall mounted, and column type.
High Quality, High-Definition, and Dazzling Vision
SoarLume’s high-definition HD Outdoor LED Billboard display has delicate images, wide viewing angle coverage, and fast dynamic image refresh without delay. It can directly import and process massive video surveillance information to meet various situations and emergency command and dispatch needs.
More Features of HD Outdoor LED Billboard:
- Ultra Large Viewing Angle: 178-degree large visual angle display, no color cast in all directions, clear and natural images, allowing viewers to obtain high-quality display effects from various angles.

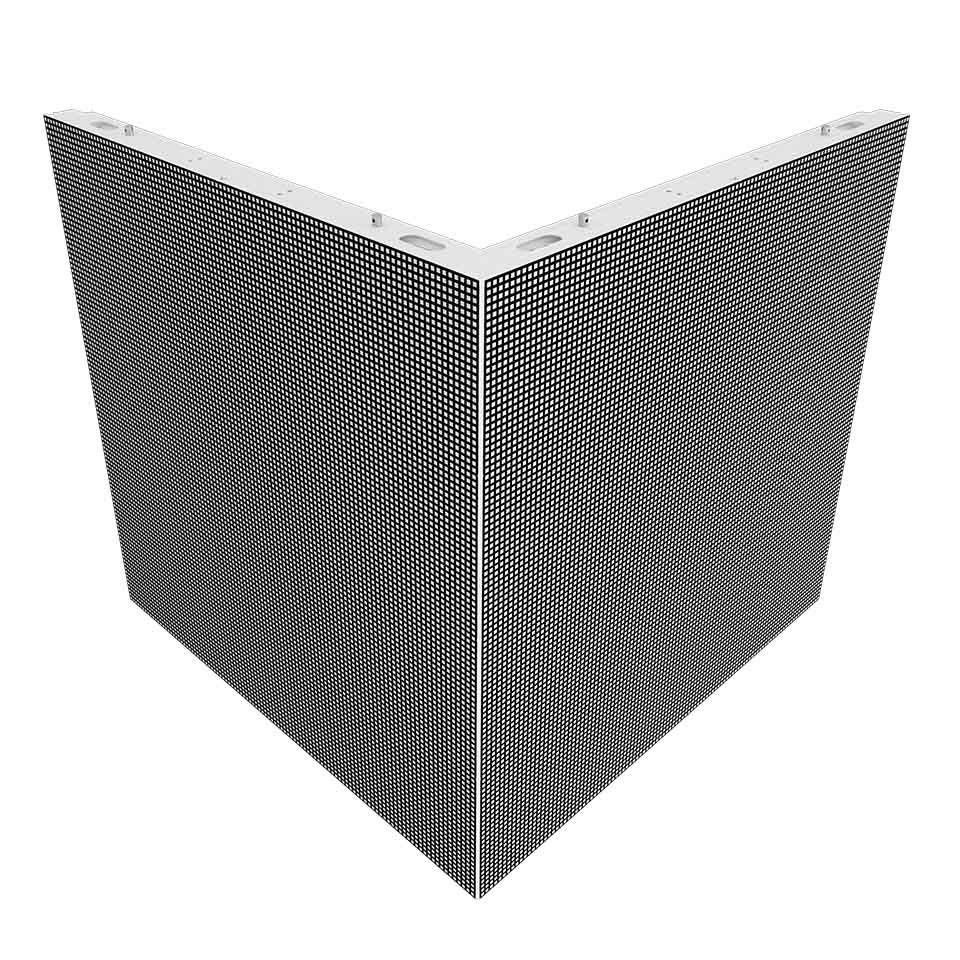

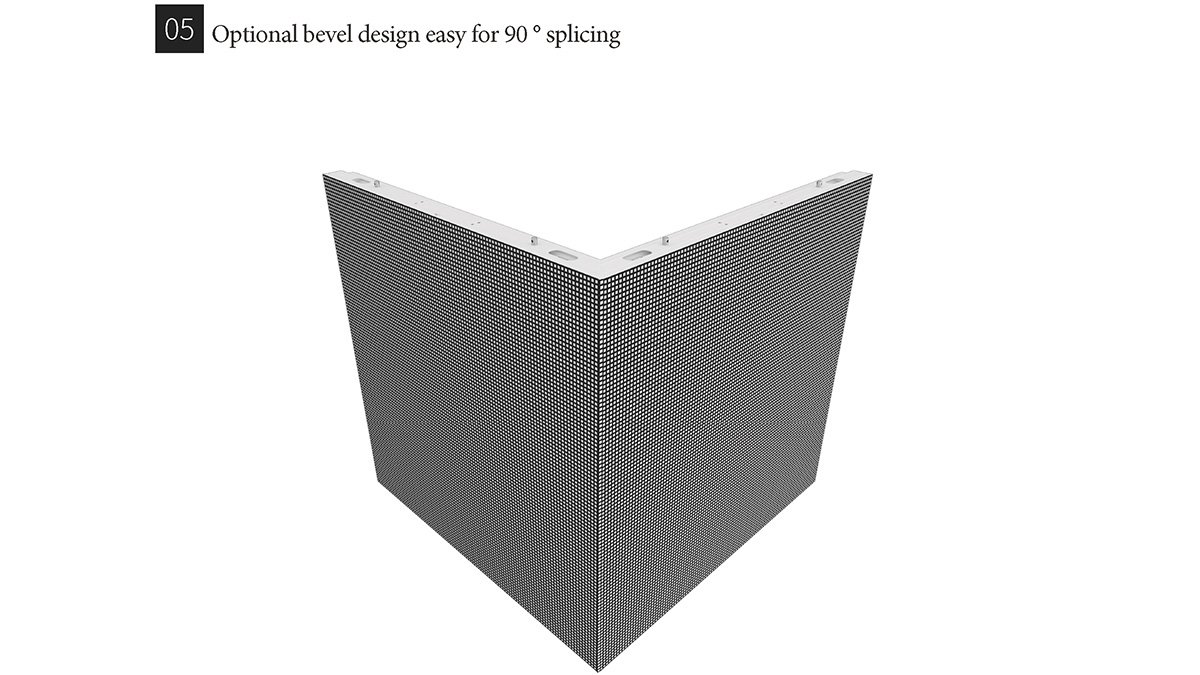

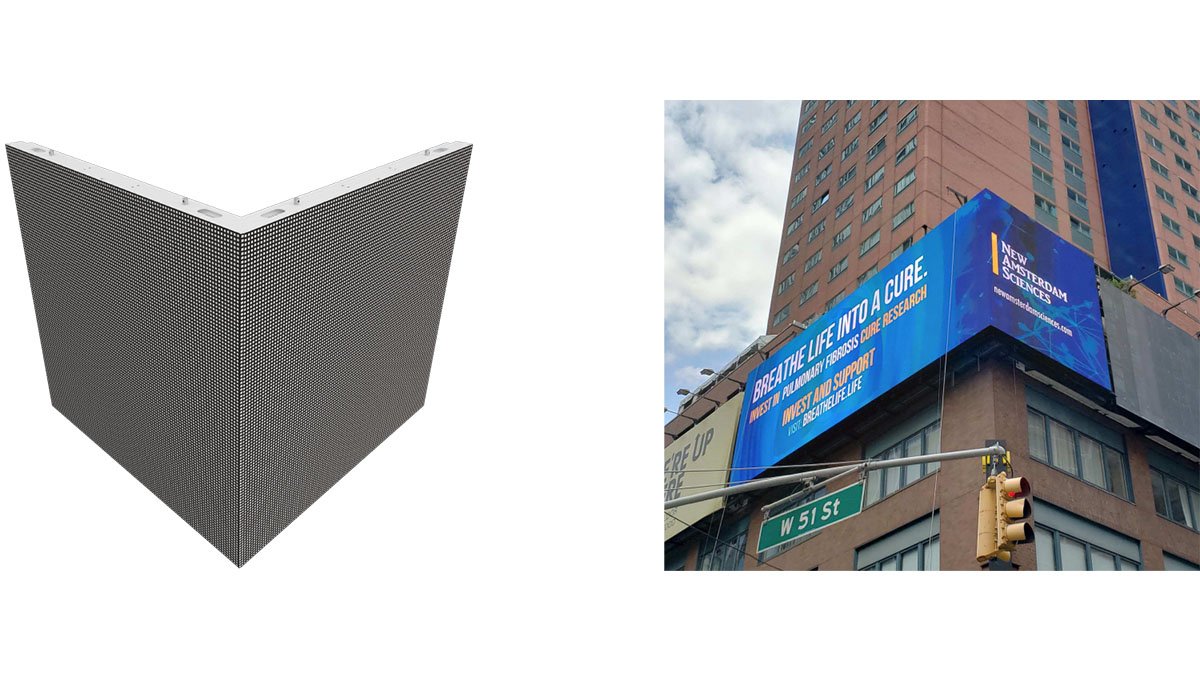

- Support 3D Effect: Optional bevel design easy for 90° splicing installation. Viewing angle up to 270 degrees, creating more visual appeal for commercial/3D advertising.
- Ultra Modern Design: High definition outdoor LED displays. More than 6500 nits brightness, sunlight readable. IP65 waterproof and dustproof. CNC technology lightweight LED cabinet. Suit for various installation methods. Ultra lightweight design. Single handed carrying. Lightweight & CNC. Popular connection. Always connected to your service!

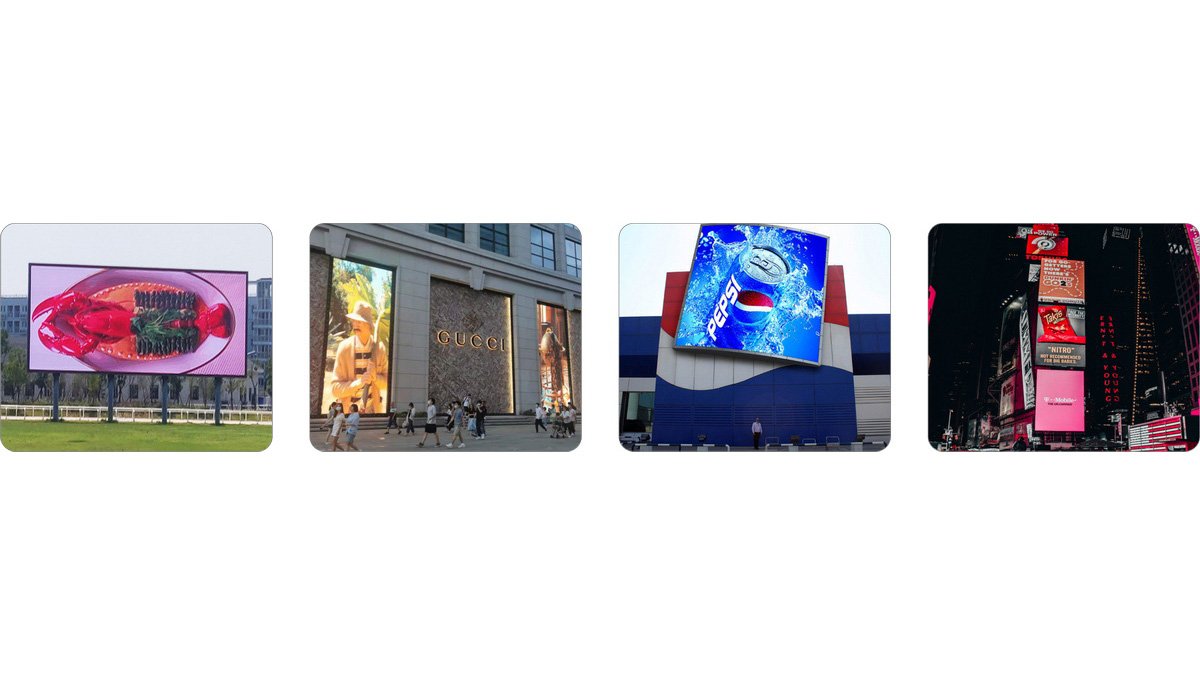

HD Outdoor LED Billboard Usage Scenarios
Widely used for outdoor billboards, message signages, outdoor shopping malls, cultural squares, and 3D curved LED screen, etc.
Summary of Key Features
- High Definition Outdoor LED Displays
- More Than 6500 Nits Brightness, Sunlight Readable
- IP65 Waterproof and Dustproof
- CNC Technology Lightweight LED Cabinet
- Suit for Various Installation Methods
- Ultra Lightweight Design — Only 5kg per Cabinet
- Single Handed Carrying
- 100% Front & Rear Maintenance
- Support 3D Effect with 90° Splicing
- 270° Viewing Angle for Commercial Advertising
- Support 1080P, 4K, 8K Large Video Wall
- Various Cabinet Sizes: 1000×1000mm / 1000×750mm / 1000×500mm / 500×500mm
- 3840 Hz High Refresh Rate
- 3500~7000 Nits High Brightness
- High Quality LED Chips, Long Lifetime
- 3 Years Quality Warranty Date
- Need to Contact Us to Get Project Quotation
- Ultra Reliable Design
- Best Selling In The Past Years
- Efficient Sales Service
- Benefit Relationship Connection
- Always Connected to Your Requests!
- 15~25 Days Production!
HD Outdoor LED Billboard Display OB5 Technical Specification
| Specification | OB5 P3.91 | OB5 P4.81 | OB5 P5.95 | OB5 P6.25 | OB5 P7.81 | OB5 P10.41 |
|---|---|---|---|---|---|---|
| Pixel Pitch | 3.91 mm | 4.81 mm | 5.95 mm | 6.25 mm | 7.81 mm | 10.41 mm |
| LED Lamps | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Cabinet Size | L500 × W500 mm | |||||
| Cabinet Weight | 5 kg | |||||
| Panel Weight | 25 kg/㎡ | |||||
| Thickness | 97 mm | |||||
| Protection Level | IP65 (Front & Rear) | |||||
| Refresh Rate | 3840 Hz | |||||
| Brightness | 3500 ~ 7000 nits | |||||
| Power Input | 110V – 230V AC | |||||
| Max Power/Cabinet | 600 Watt | |||||
| Module Size | 250 × 250 mm | |||||
| Module Type | Front Service LED Module | |||||
| Cabinet Material | CNC Die-Cast Aluminum | |||||
| Cabinet Color | Black (Customized colors available*) | |||||
| Viewing Angle | H: 178° / V: 178° | |||||
| 3D Support | Optional Bevel Design for 90° Splicing (270° Viewing Angle) | |||||
| Maintenance | Front & Rear Service | |||||
| Installation | Lifting / Seat Mounting / Roof / Wall-Mounted / Column | |||||
Why Choose OB5 Series HD Outdoor LED Billboard
- UHD Small Pixel Pitch Technology — Pixel-level point control technology achieves precise brightness, color reproduction, and uniformity control for stunning image quality
- Ultra Lightweight CNC Cabinet — Only 5kg per 500×500mm cabinet, 25kg/㎡ panel weight, 97mm slim thickness for easy handling and installation
- Multi-Resolution Video Wall Support — Seamless splicing enables 1080P, 4K, and 8K large-scale displays without visible gaps
- 3500-7000 Nits Sunlight Readable — High brightness ensures clear visibility in direct sunlight for outdoor advertising effectiveness
- 100% Front & Rear Maintenance — Dual-side service access reduces labor costs and simplifies repairs in any installation environment
- Multiple Cabinet Size Options — 1000×1000mm, 1000×750mm, 1000×500mm, and 500×500mm enable flexible screen configuration
- 3D Effect & 90° Splicing Support — Optional bevel design creates 270° viewing angle for immersive commercial and 3D advertising
- 178° Ultra-Wide Viewing Angle — No color cast in any direction, ensuring audience visibility from all angles at large venues
- Automatic Reflow Soldering — Precision manufacturing eliminates manual post-soldering for superior reliability and consistency
- 3-Year Quality Warranty — Comprehensive warranty coverage with lifetime technical support via email and remote diagnostics
For more questions, please contact us via led@soarapex.com.
