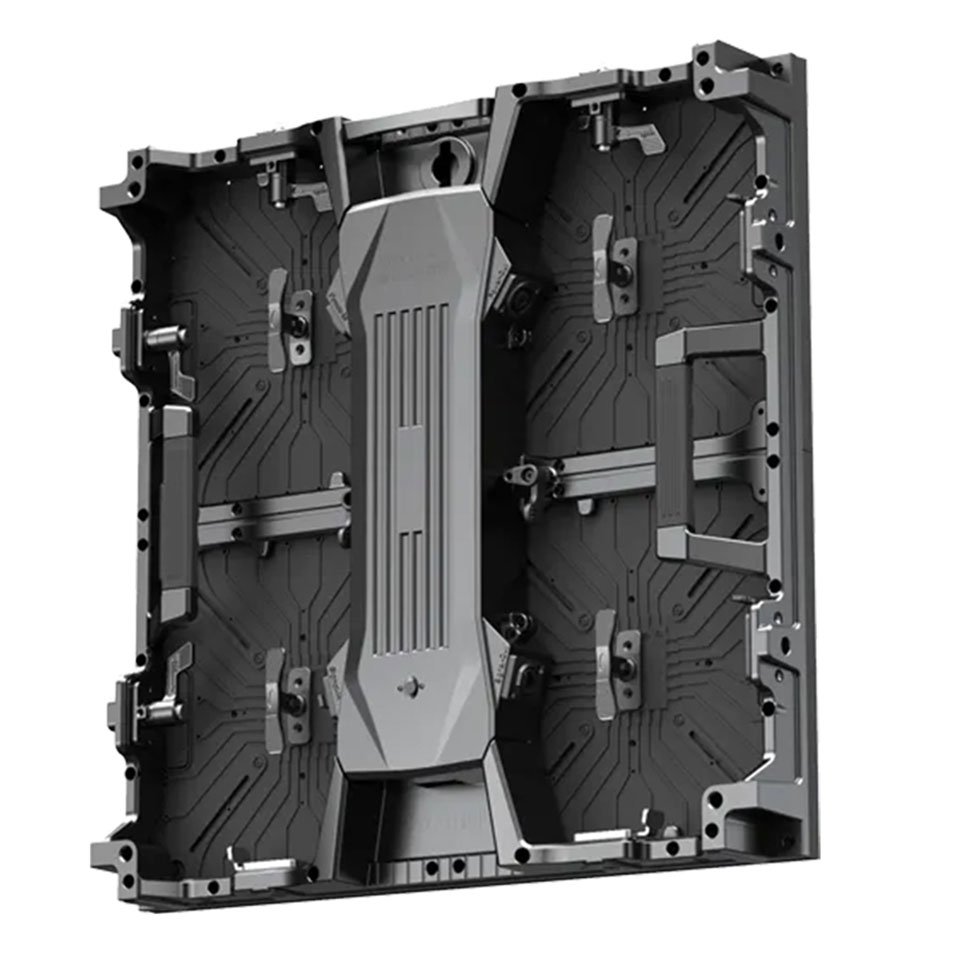

Indoor Rental LED Display IR1 – Ultra High Definition Lightweight Indoor LED Panel

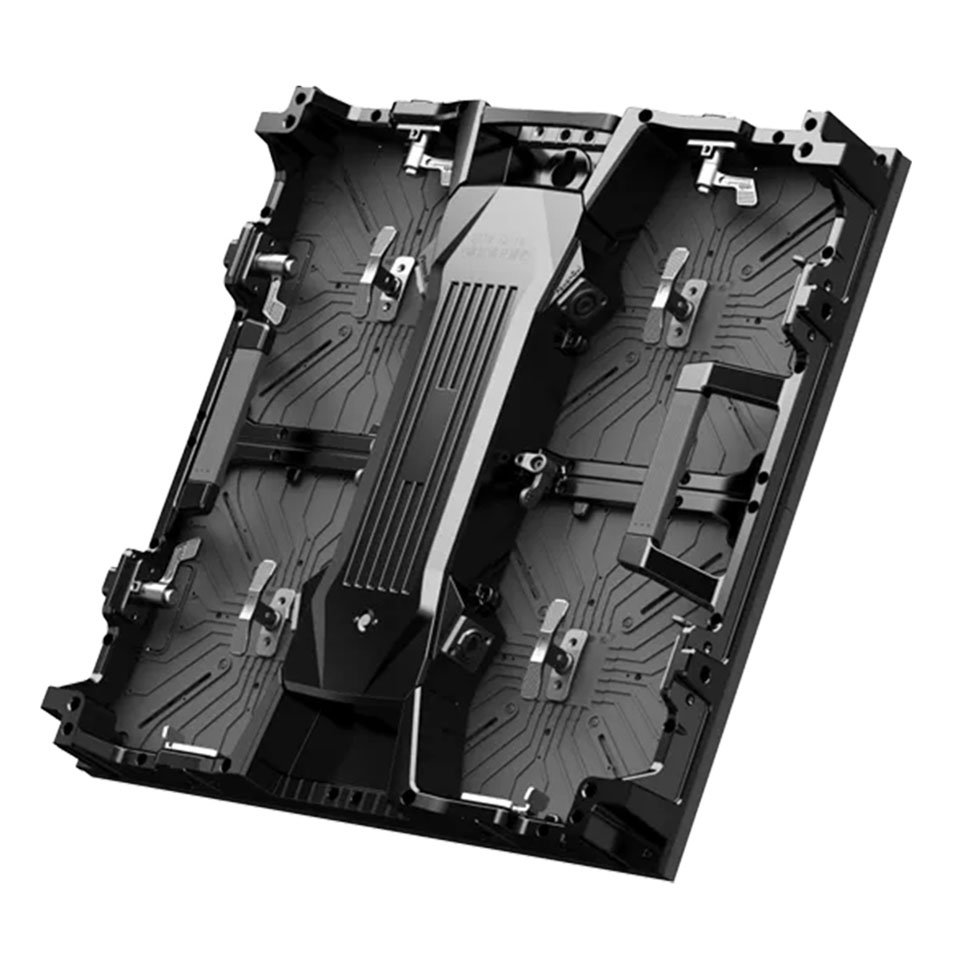

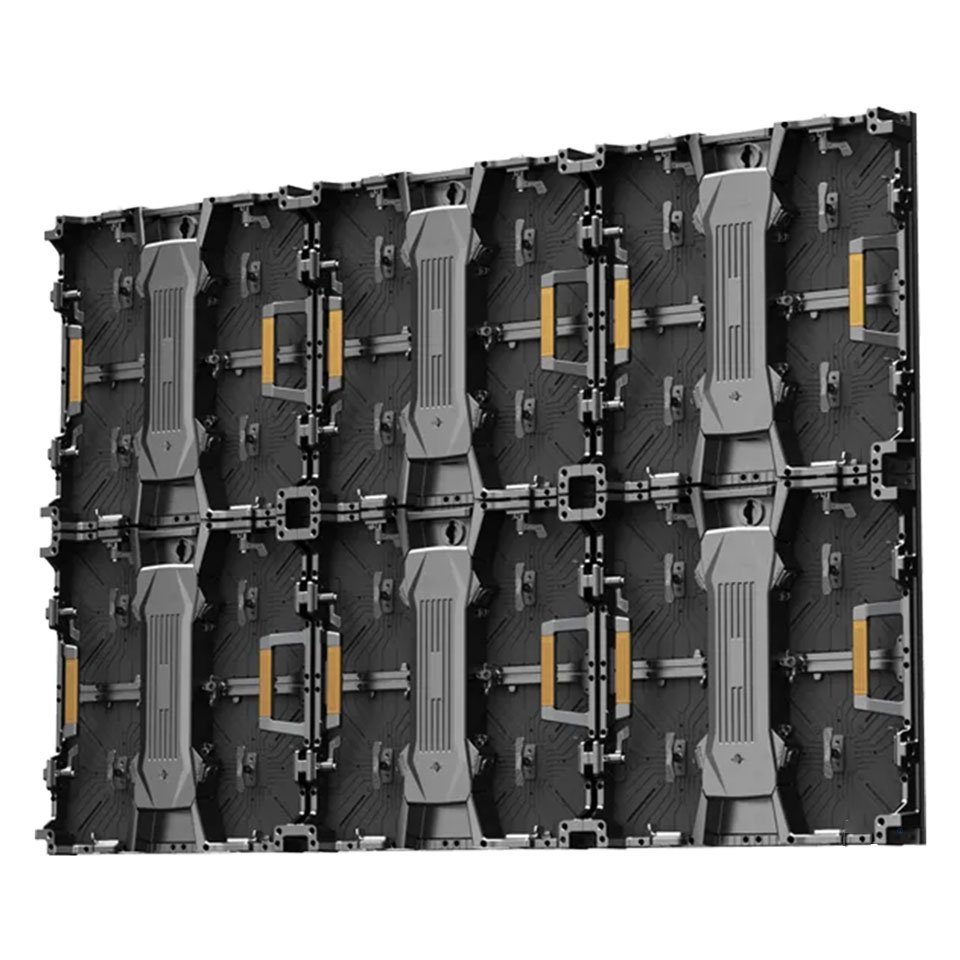

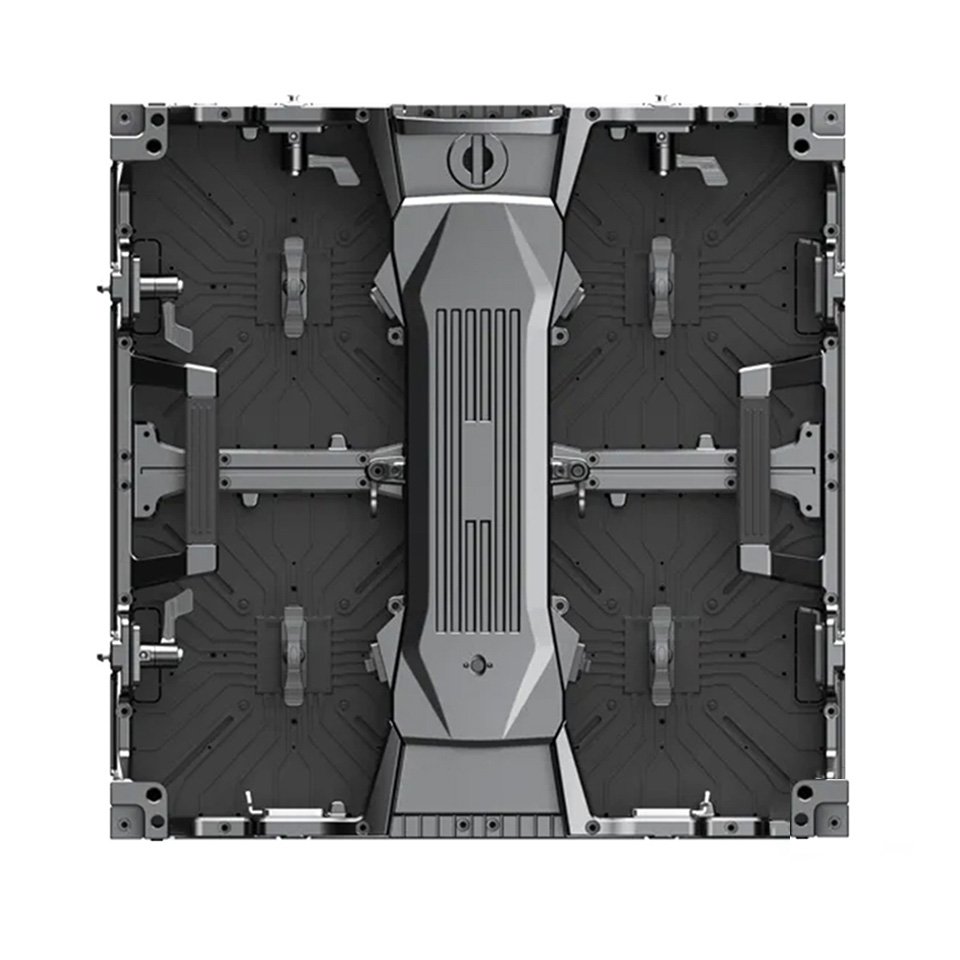

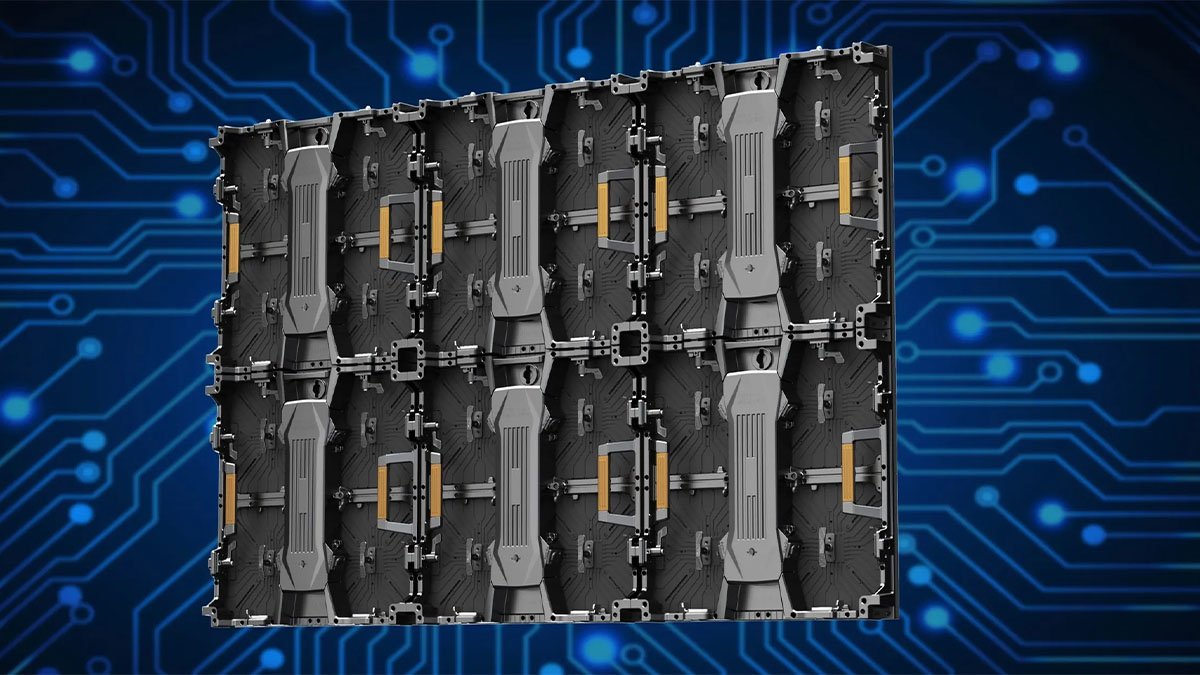

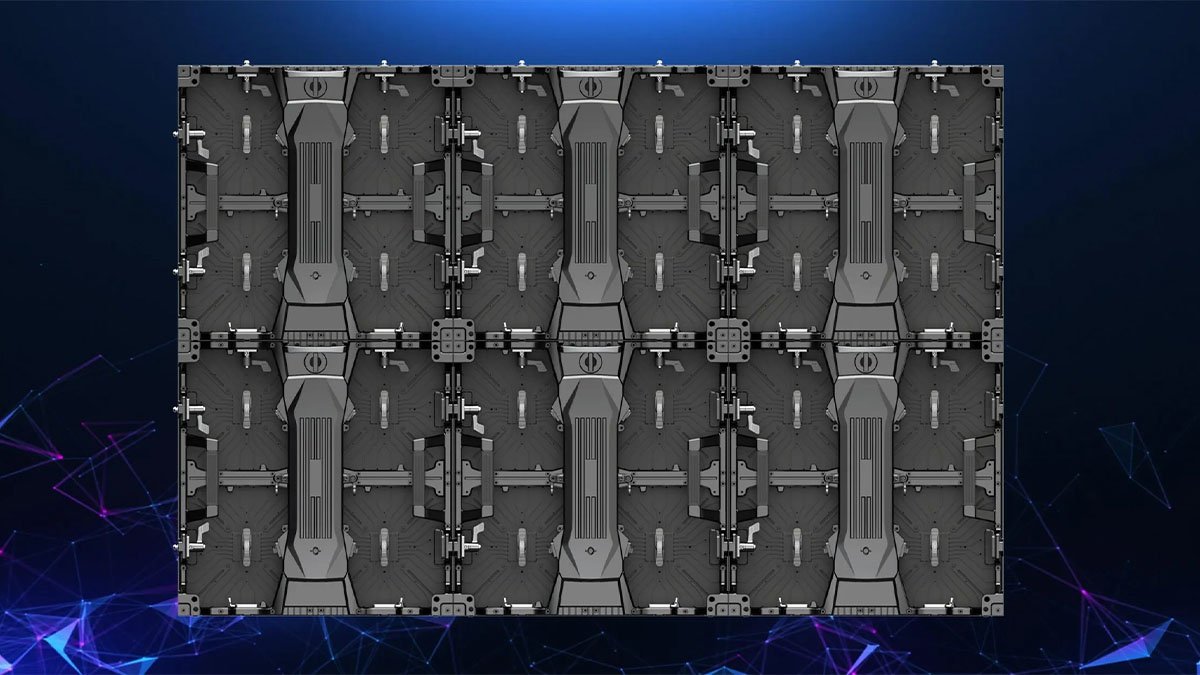

SoarLume’s Indoor Rental LED Display panel is a quickly detachable LED display designed with a die-casting aluminum casing, featuring ultra-light (7kg), ultra-thin, and quick installation characteristics. The Ultra Light LED Panel is mainly used in rental form and is named after it. Supports various installation methods, such as lifting and seat mounting, suitable for indoor and outdoor scenes. The installation accuracy of Indoor Rental LED Display panel reaches 0.1mm, equipped with a quick locking mechanism to achieve 10 seconds single cabinet installation. The Indoor Rental LED Display cabinet adopts an aluminum heat dissipation bottom plate and the IP65 protection level, supporting a working environment of -20 ℃~60 ℃. The application scenarios include concerts, sports events, press conferences, and virtual filming.
Ultra Light and Ultra-Thin

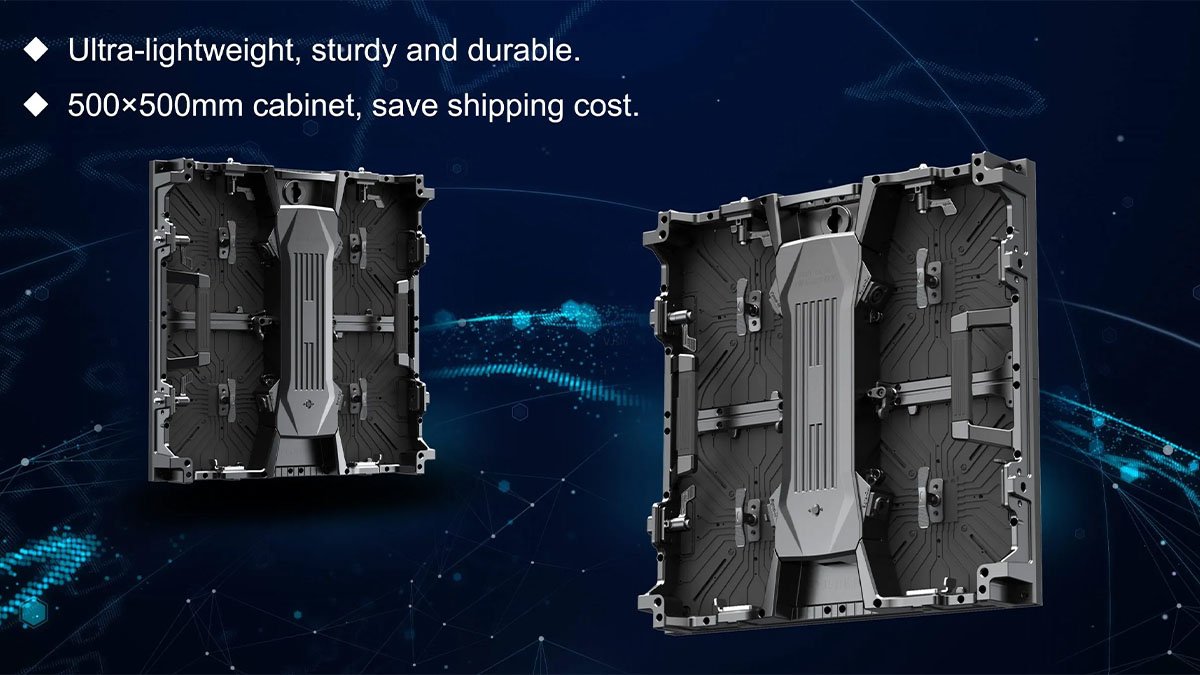

The Indoor Rental LED Display panel is made of die-casting aluminum material, weighing only 7 kilograms, with ultra-thin and high-strength, making it easy to transport and handle.
Quick Installation
Single LED cabinet installation can be completed within 10 seconds through a quick locking mechanism, supporting various methods such as lifting and seat installation.
High Quality Raw Materials, Strong Compatibility
Our indoor rental LED display panel supports multiple video input signals such as DVI/HDMI/S-Video, and can play text, images, videos, and real-time programs.
Fine Production and Strict Testing
SoarLume’s indoor rental LED Display product has undergone multiple production testing processes, including 12 hours of 80 degrees baking of lamp beads, SMT mixed pasting process, three proof process, salt spray testing, lamp surface coating process, waterproof testing, conductivity testing, lightning strike testing, spacing testing, brightness testing, etc., strictly controlled to the highest standards.
The Ultimate Visual Experience of Patented Technology
We apply industry-leading seamless high-definition display technology, nearly 50 quality inspection processes, and pass high-standard quality control checks to obtain reliable guarantees such as CE, CAQI, 3C, CQC series certificates, international mutual recognition ISO quality management system certificates, etc.
More Features of Indoor Rental LED Display
- Ultra Large Viewing Angle: 160 degrees large visual angle display, no color cast in all directions, clear and natural images, allowing viewers to obtain high-quality display effects from various angles.
- Ultra Modern Design: Die-casting lightweight aluminum LED cabinet. Standard LED module 250mm×250mm. Rental shape 500mm×500mm LED panel. Classic pixel pitch P2.6mm, P2.97mm, P3.91mm. Quick and easy installation and transportation. Single handed carrying. Lightweight & reliable. Business connection. Always connected to your requests! Best selling in the past years!
Application Scenarios of Indoor Rental LED Display

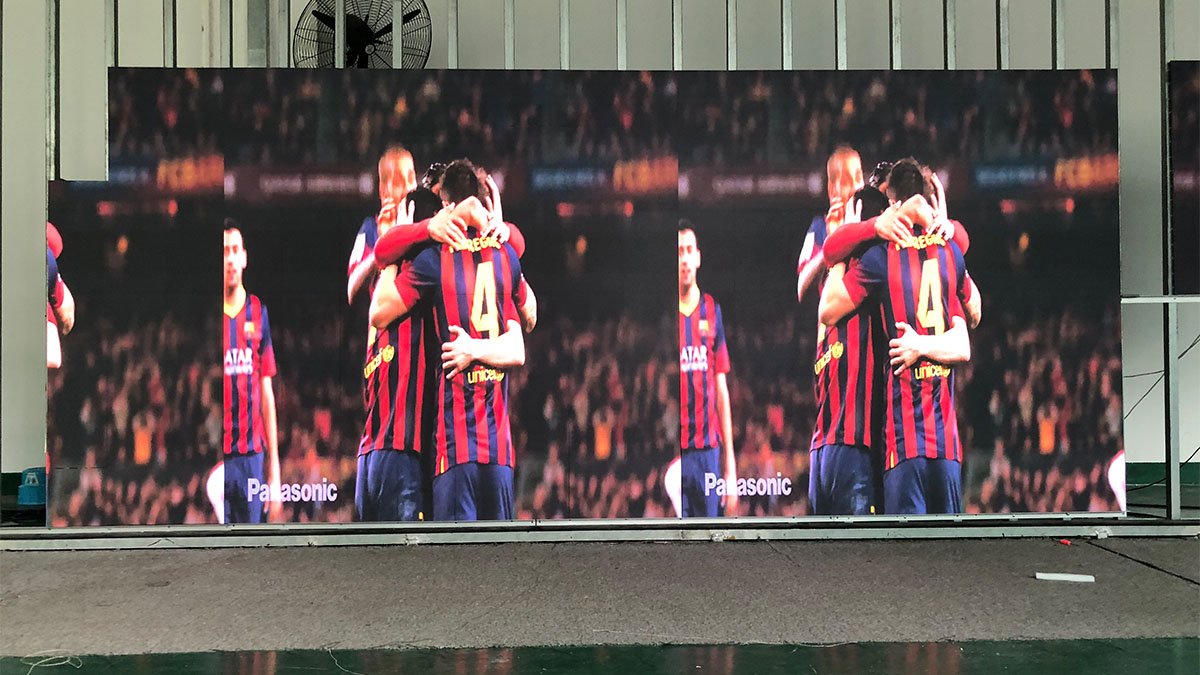

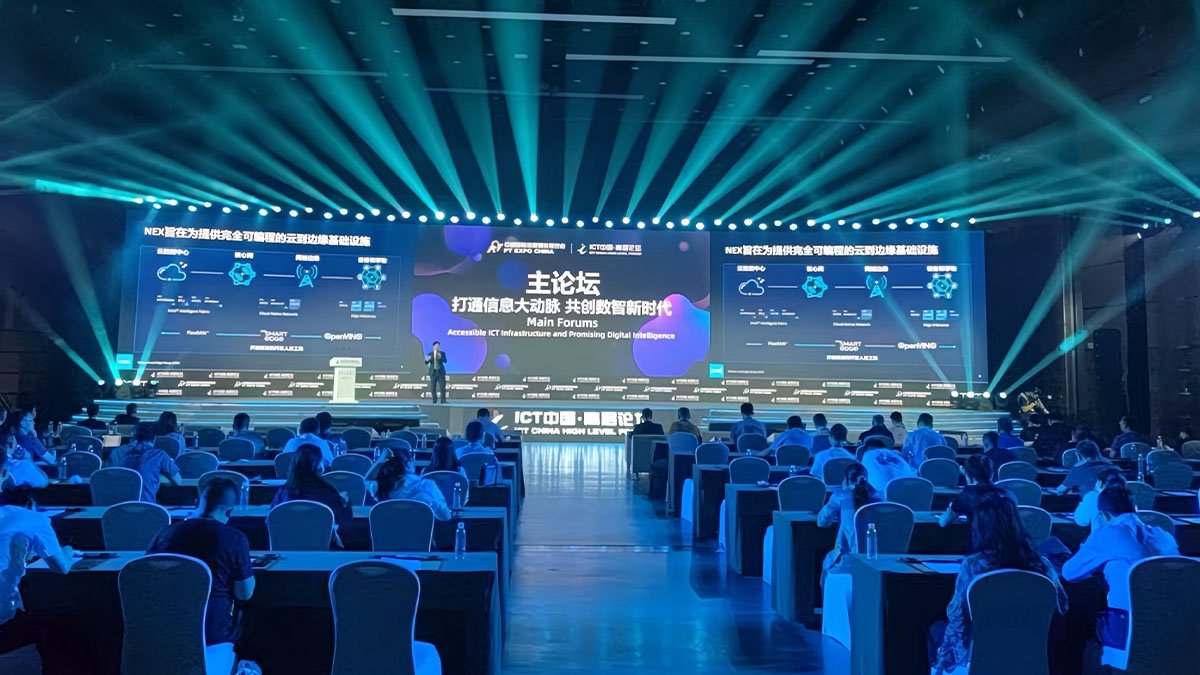

Mainly used for concert stage backgrounds, press conference display screens, sports event scoring screens, and other occasions that require quick construction and dismantling. Typical cases include the 6000 square meter rental screen for the Hangzhou Asian Games, the Abbison PL series large screen for the Paris Olympics, and other large-scale international events.
Indoor Rental LED Display – Summary of Key Features
- Die-Casting Lightweight Aluminum LED Cabinet
- Standard LED Module 250mm×250mm

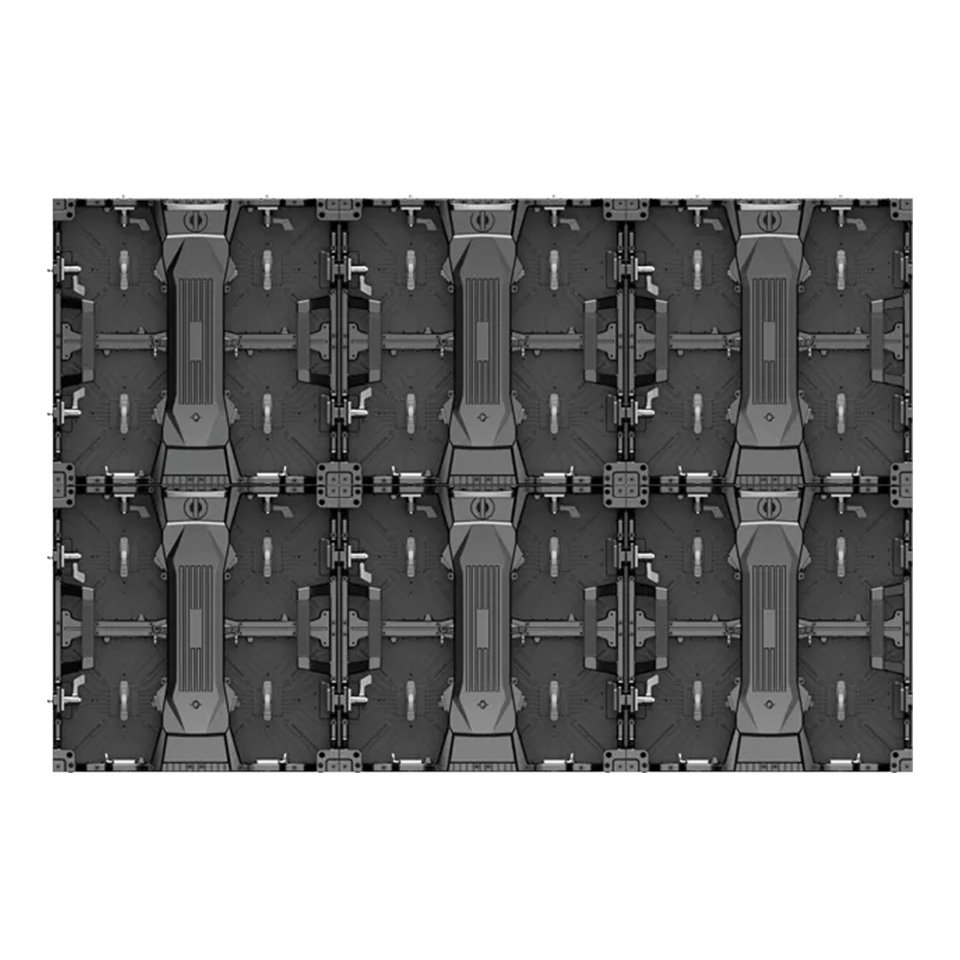

- Rental Shape 500mm×500mm LED Panel
- Classic Pixel Pitch P2.6mm, P2.97mm, P3.91mm
- Ultra Lightweight — Only 7kg per Cabinet
- Ultra Thin and High Strength
- Quick Installation — 10 Seconds per Cabinet
- 0.1mm Installation Accuracy
- Quick Locking Mechanism

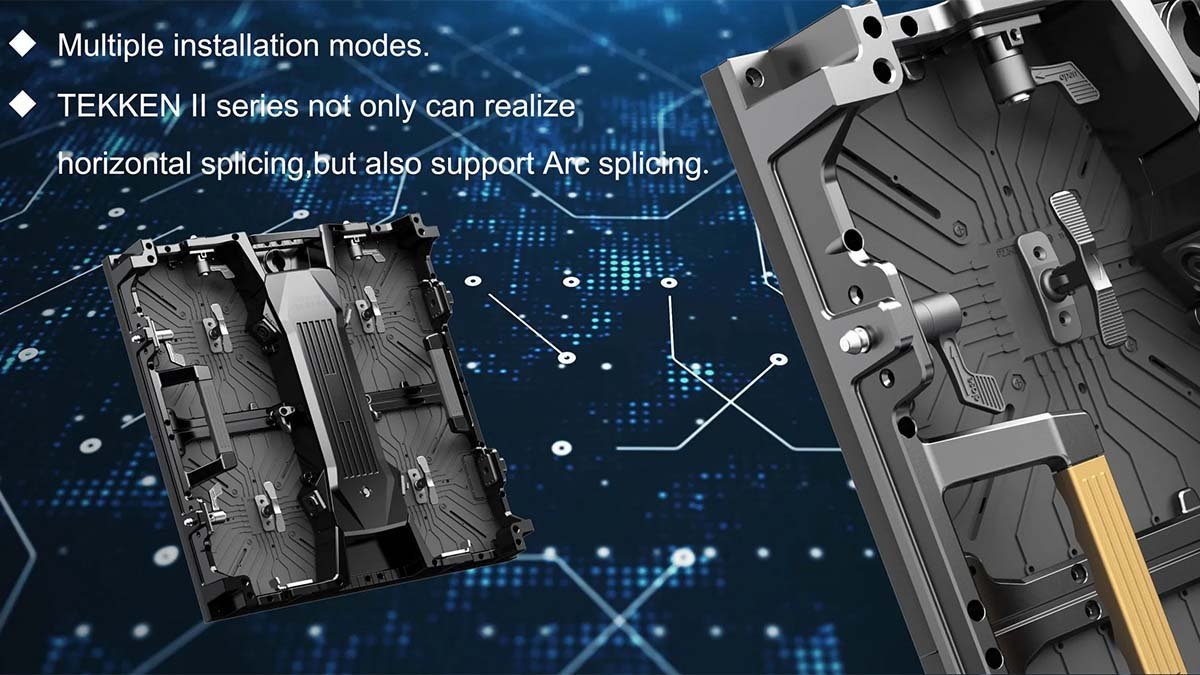

- Supports Lifting and Seat Mounting
- Multiple Video Input: DVI/HDMI/S-Video
- 3840 Hz High Refresh Rate LED Panel
- 1000~1500 Nits Brightness
- 160° Ultra Large Viewing Angle
- Aluminum Heat Dissipation Bottom Plate
- IP65 Protection Level
- Operating Temperature -20°C~60°C
- 12 Hours 80°C Lamp Bead Baking Test
- Salt Spray & Lightning Strike Testing
- CE, CAQI, 3C, CQC, ISO Certified
- High Quality LED Chips, Long Lifetime
- 3 Years Quality Warranty Date
- Need to Contact Us to Get Project Quotation
- Ultra Reliable Design
- Best Selling In The Past Years
- Efficient Sales Service
- Benefit Relationship Connection
- Always Connected to Your Requests!
- 15~25 Days Production!
SoarLume Indoor Rental LED Display IR1 Technical Specification
| Specification | IR1 P2.6 | IR1 P2.97 | IR1 P3.91 |
|---|---|---|---|
| Pixel Pitch | 2.6 mm | 2.97 mm | 3.91 mm |
| LED Lamps | SMD1515 | SMD2121 | SMD1921 |
| Cabinet Size | L500 × W500 mm | ||
| Cabinet Weight | 5 kg | ||
| Protection Level | IP65 (Front & Rear) | ||
| Refresh Rate | 3840 Hz | ||
| Brightness | 1000 ~ 1500 nits | ||
| Power Input | 110V – 230V AC | ||
| Max Power/Cabinet | 400 Watt | ||
| Module Size | 250 × 250 mm | ||
| Module Type | Front Service LED Module | ||
| Cabinet Material | Die-Cast Aluminum | ||
| Cabinet Color | Black (Customized colors available*) | ||
| Heat Dissipation | Aluminum Bottom Plate | ||
| Operating Temperature | -20°C ~ +60°C | ||
| Viewing Angle | H: 160° / V: 160° | ||
| Installation Accuracy | 0.1mm Precision | ||
| Certifications | CE, CAQI, 3C, CQC, ISO | ||

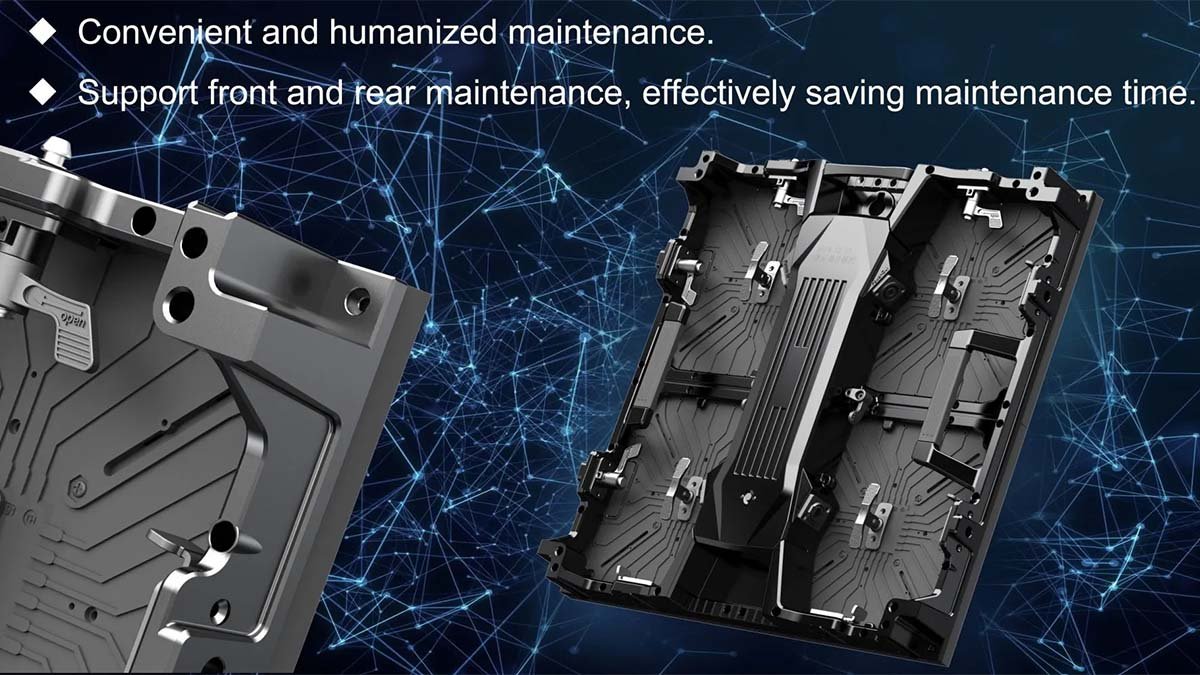

| Maintenance | Front Service | ||
| Installation | Rental / Lifting / Seat Mounting / Stacking | ||
Why Choose IR1 Series Indoor Rental LED Display
- Ultra Lightweight 5kg Design — Die-cast aluminum construction enables single-person handling and significantly reduces transportation costs for rental operations
- 10-Second Quick Installation — Fast-lock mechanism with 0.1mm precision accuracy enables rapid deployment for time-sensitive events and tight schedules

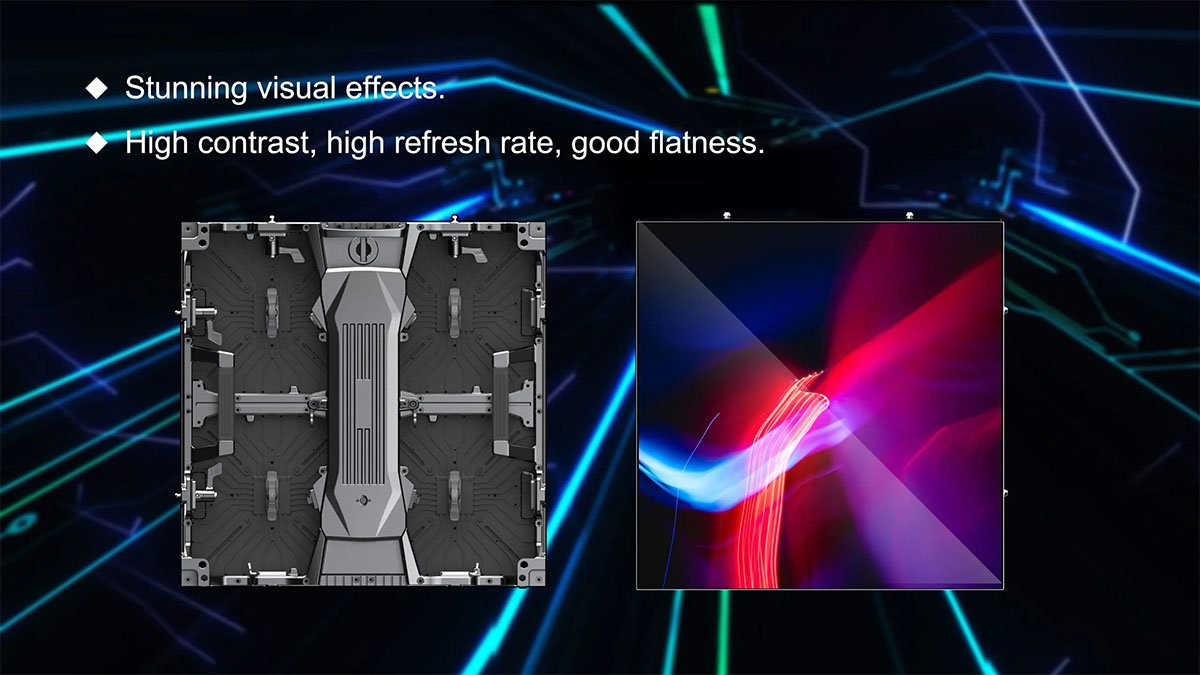

- 3840Hz Broadcast-Grade Refresh Rate — Flicker-free output ensures camera-friendly performance for professional videography, live streaming, and broadcast applications
- Multiple Video Input Compatibility — DVI/HDMI/S-Video support enables seamless integration with various media sources and production equipment
- Ultra-Thin High-Strength Construction — Die-cast aluminum delivers exceptional structural integrity while maintaining minimal depth for space-efficient installations
- 160° Ultra-Wide Viewing Angle — No color cast in any direction, ensuring audience visibility from wide angles at large indoor venues
- Rigorous Quality Testing — 12-hour 80°C lamp bead baking, salt spray, lightning strike, and 50+ inspection processes ensure maximum reliability
- International Certifications — CE, CAQI, 3C, CQC, and ISO quality management certificates guarantee compliance with global standards
- Proven International Performance — Trusted at major events including Hangzhou Asian Games (6000㎡) and Paris Olympics (Abbison PL series)
- 3-Year Quality Warranty — Comprehensive warranty coverage with lifetime technical support via email and remote diagnostics
For more inquiries, please contact us via led@soarapex.com.
