What Is all-in-one GOB LED Display?
GOB (Glue on Board) LED display technology represents the next evolution in fine-pitch LED screen manufacturing. By encapsulating the LED chip and solder joints with a transparent protective resin, GOB delivers unmatched durability, reliability, and visual performance — making it the preferred choice for mission-critical applications from virtual production studios to UAV command centers.

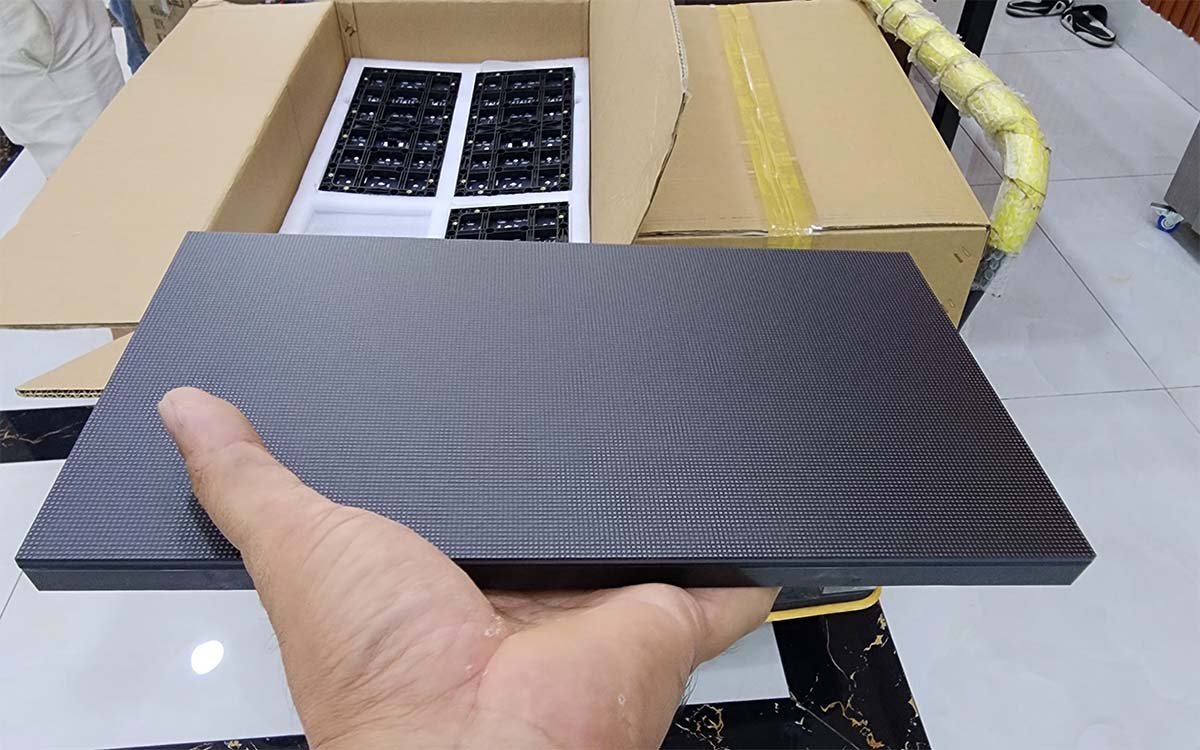

Figure 1: GOB encapsulation process — transparent resin protects LED chips and solder joints
Understanding GOB: Glue on Board Technology
Traditional SMD (Surface Mount Device) LED displays expose delicate components to the environment. Dust, moisture, physical impact, and oxidation gradually degrade performance. GOB technology solves this by applying a transparent epoxy resin layer directly over the LED module surface after soldering.
This encapsulation process creates a flat, protected surface while maintaining optical clarity. The result is a display that withstands conditions that would damage conventional LED screens — without sacrificing brightness, color accuracy, or viewing angles.
The protective resin layer in GOB LED display provides IP65 front protection as standard — something that requires additional sealing in SMD designs. This makes GOB ideal for high-traffic installations, outdoor deployments, and environments where equipment reliability is non-negotiable.

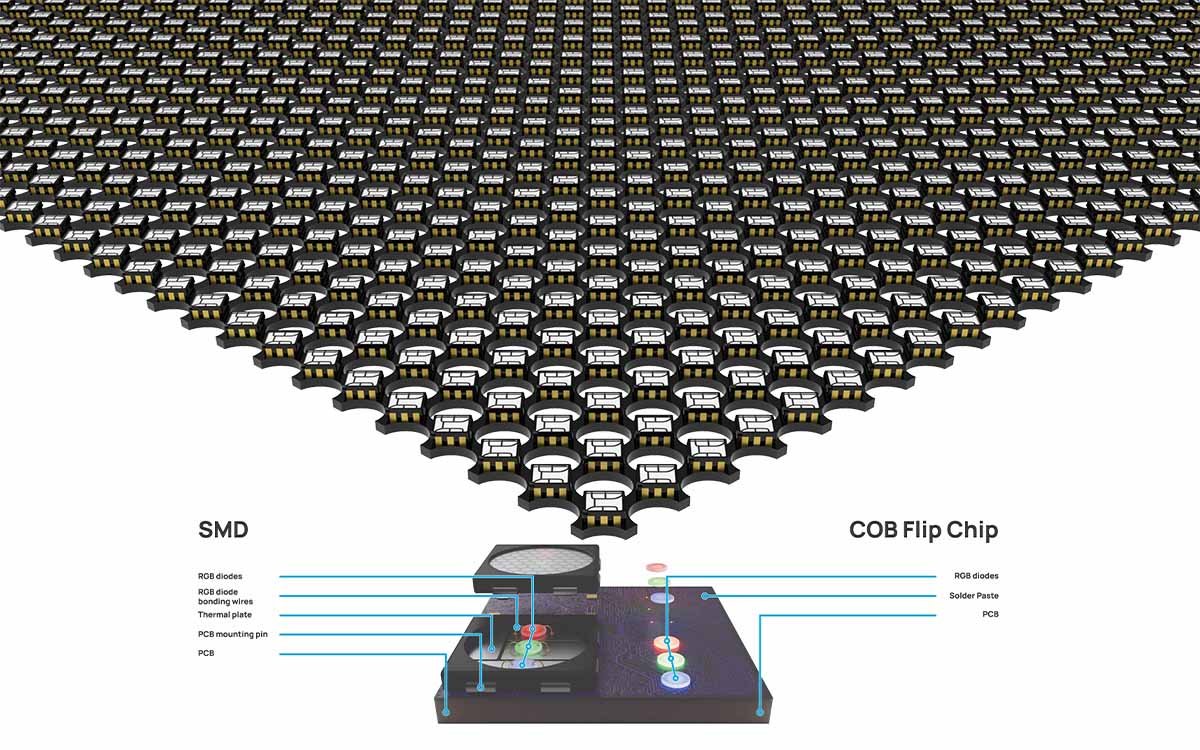

Traditional SMD — exposed components vulnerable to damage

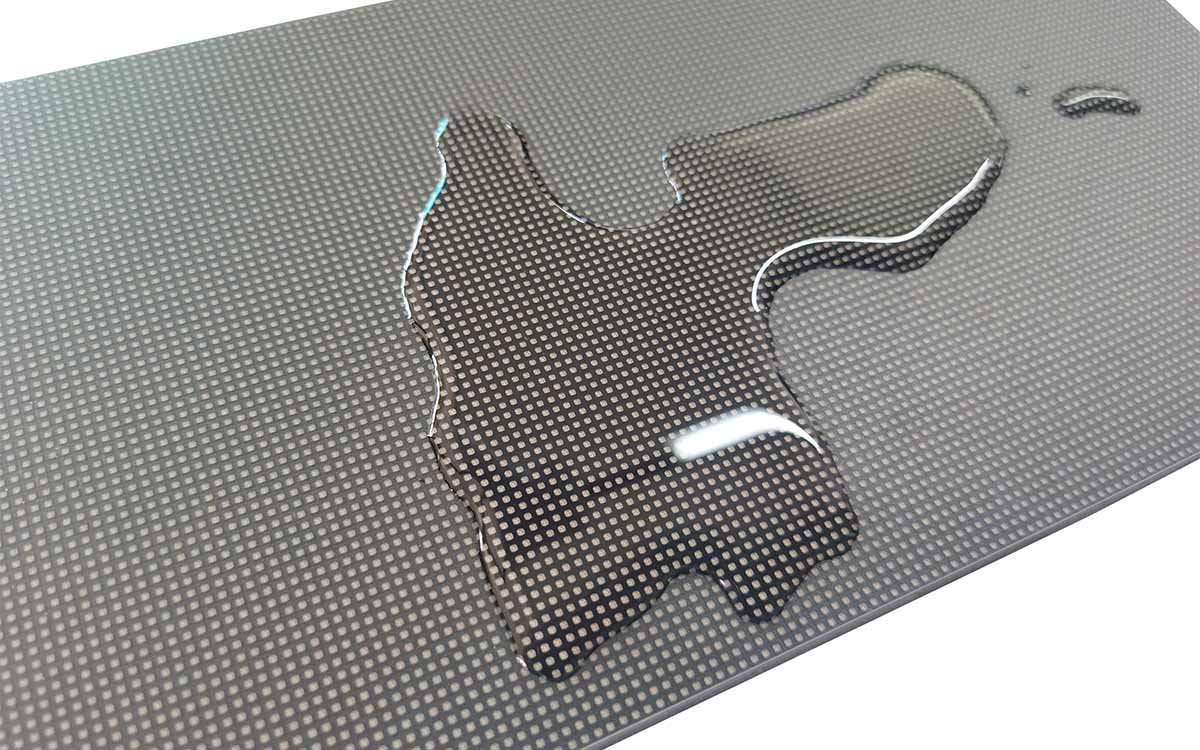

GOB LED — resin-encapsulated components with IP65 protection
GOB vs SMD: A Technical Comparison
| Specification | GOB LED | Traditional SMD |
|---|---|---|
| Protection Level | IP65 (front) standard | IP20–IP40 typical |
| Impact Resistance | High — resin absorbs shock | Low — exposed components |
| Moisture Protection | Excellent — sealed surface | Poor — solder joints exposed |
| Dead Pixel Rate | <1 ppm typical | 5–15 ppm typical |
| Flatness | Perfect — resin fills gaps | Uneven — component height variation |
| Maintenance | Minimal — self-protecting | Regular cleaning required |
| Cost | 10–15% premium | Lower initial cost |
Why GOB LED Display Dominate Professional Applications
The superior durability and reliability of GOB technology make it the standard for industries where display failure is not an option:
GOB’s flat surface eliminates light scatter and reflection issues that plague SMD screens in camera-facing applications. Directors see clean, consistent pixels in every frame.
24/7 operations demand zero-failure displays. GOB’s sealed construction withstands dust, vibration, and temperature fluctuations in mobile command posts.
High-refresh GOB panels (7680Hz) eliminate scan lines visible to broadcast cameras. The resin surface reduces glare under intense studio lighting.
Frequent assembly, transport, and handling punish conventional LED panels. GOB’s impact-resistant surface survives the road without dead pixels.
GOB LED Technical Specifications
At GOB LED Display, our GOB panels are engineered to professional broadcast and cinema standards:
- Pixel Pitch Range: P0.83 – P3.9, covering fine-pitch control rooms to large-format outdoor installations
- Refresh Rate: 3840Hz – 7680Hz, compatible with high-speed cinema cameras up to 240fps
- Color Depth: 16bit+ processing with DCI-P3 color gamut coverage
- Brightness: 800–4500 nits, calibrated for indoor studio and outdoor daylight visibility
- Contrast Ratio: 5000:1 with deep black levels essential for HDR content
- Viewing Angle: 160° horizontal and vertical, maintaining color consistency across wide audiences
- Operating Temperature: -20°C to +60°C, certified for extreme environment deployment
The GOB Manufacturing Process
Understanding how GOB displays are made explains their superior performance:
- PCB Preparation: High-precision circuit boards are fabricated with tight tolerances for fine-pitch applications
- Component Mounting: LED chips are surface-mounted using automated pick-and-place with micron-level accuracy
- Reflow Soldering: Components are bonded under controlled thermal profiles
- Optical Inspection: AOI (Automated Optical Inspection) verifies every solder joint
- Resin Encapsulation: Transparent epoxy is precisely dispensed and cured to form the protective GOB layer
- Curing & Testing: Modules undergo thermal cycling, aging, and full pixel mapping before assembly
This six-stage process adds approximately 10–15% to manufacturing cost compared to standard SMD. The return on investment manifests in reduced maintenance, longer service life, and elimination of costly downtime in critical applications.

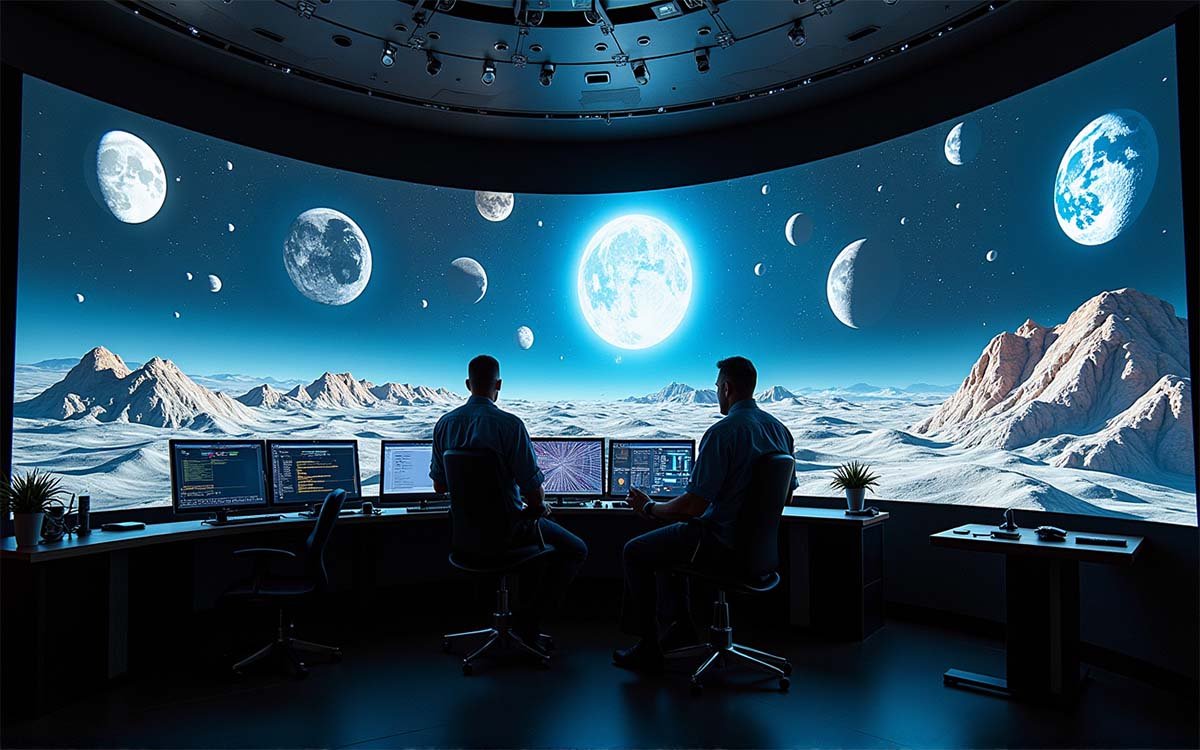

Figure 3: GOB-encapsulated LED volume in virtual production — seamless in-camera VFX
GOB in Virtual Production: A Case Study in Performance
Virtual production represents the most demanding LED display application. Camera sensors at 4K and 8K resolution reveal every imperfection — scan lines, color shift, moiré patterns, and dead pixels.
GOB technology addresses each of these challenges:
- Scan Lines: The flat resin surface diffuses emitted light evenly, eliminating the visible grid structure that cameras capture on SMD screens
- Color Consistency: Encapsulation protects phosphor coatings from oxidation, maintaining color accuracy over years of operation
- Reflection Control: The matte resin finish reduces specular reflection, preventing unwanted light bounce onto actors and sets
- Physical Durability: Camera dollies, lighting rigs, and crew movement pose constant collision risk. GOB surfaces absorb incidental contact without damage
Our Curved LED Volume and High Refresh LED panels are GOB-encapsulated and certified for in-camera VFX workflows.
Explore VP Display Systems →FAQ: Common Questions About GOB LED Display
Conclusion: Why GOB Is the Professional Standard
GOB LED display technology transforms the fundamental weakness of LED screens — exposed, fragile components — into a strength. The protective encapsulation layer delivers tangible benefits across every performance metric that matters to professional users: durability, reliability, visual quality, and total cost of ownership.
For applications where display failure is not an option — virtual production, broadcast, command centers, and permanent installations — GOB is not an upgrade. It is the baseline requirement.
At GOB LED Display, every panel we manufacture uses authentic GOB encapsulation. We do not offer SMD alternatives because we believe our customers deserve the reliability that only GOB technology can deliver.
Get detailed datasheets, pixel pitch recommendations, and integration guidance for your specific application.
