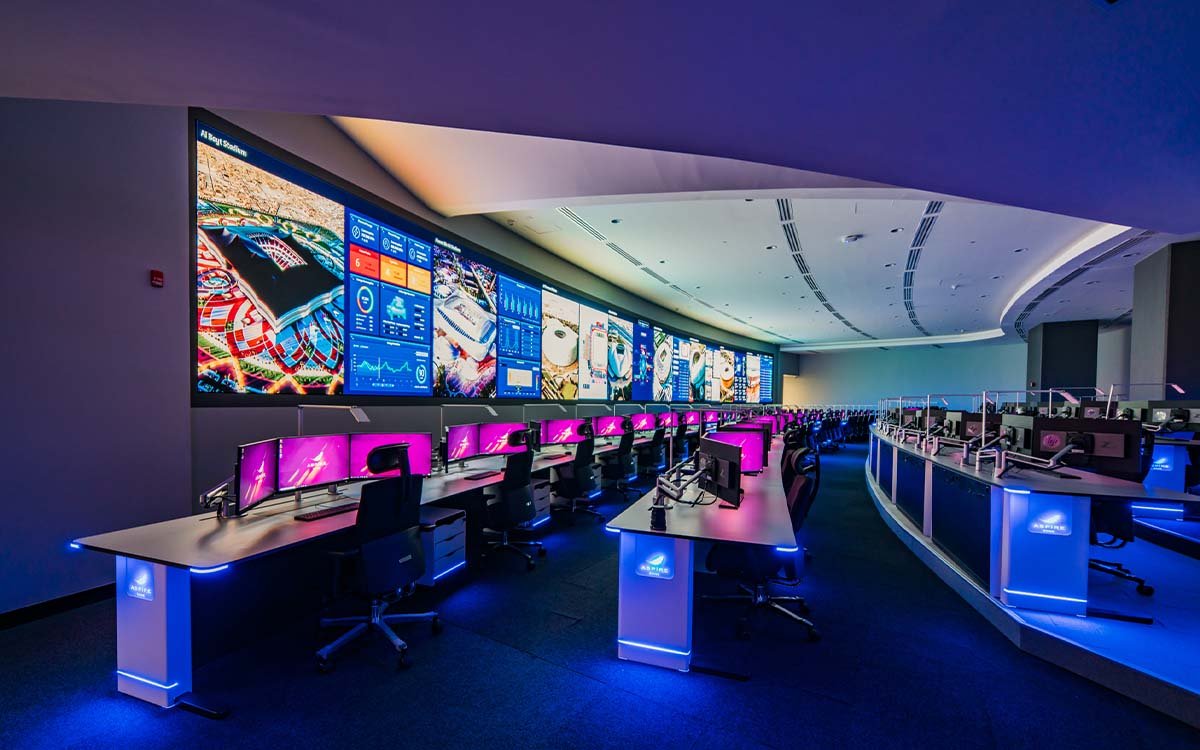

A control room LED video wall display is a professional-grade video wall engineered specifically for 24/7 mission-critical environments. Unlike standard commercial displays, the kind of command center LED display features fine pixel pitch (P0.8–P2.9) for close-up viewing, 3840Hz+ refresh rate to eliminate flicker on camera feeds, ultra-thin LED panels for depth-constrained spaces, and redundant power supplies to ensure zero downtime during critical operations.

The recommended pixel pitch depends on viewing distance. Operators typically sit 1.5–3 meters from the screen, requiring P0.8 to P1.5 for pixel-perfect clarity. P0.8 delivers the highest resolution for command centers with complex data visualization, while P1.5 offers an excellent balance of image quality and cost for security monitoring rooms and network operations centers.

A high refresh rate (3,840Hz+) is essential to eliminate flicker and motion blur on fast-moving camera feeds. Low refresh rates cause eye strain during extended shifts and can obscure critical details during high-velocity events. Our displays support variable refresh rates synchronized with camera outputs, ensuring smooth playback of PTZ movements and real-time incident tracking without ghosting or tearing.

Our flexible LED screen wall solutions use soft LED modules or curved capability LED cabinets that support concave or convex configurations with radii as tight as 500mm. The curved LED video wall creates immersive environments that wrap around operator workstations, reducing the distance from screen to viewer at the edges and ensuring every seat has a direct line of sight. This is especially effective in emergency response centers and command hubs where collaborative viewing is essential.

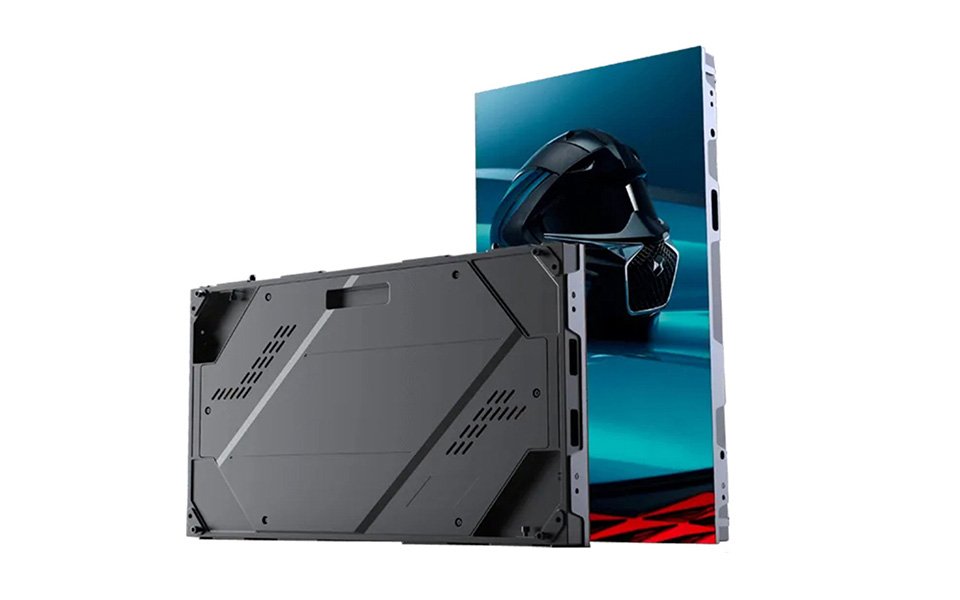

Our ultra-thin LED cabinet measures just 28mm–45mm deep — 60% slimmer than conventional LED cabinets. This enables flush wall mounting in depth-constrained control rooms where every millimeter counts. The slim profile also reduces weight, allowing for ceiling or wall suspensions without costly structural reinforcement, and creates a clean, modern aesthetic that integrates seamlessly with existing AV furniture.

Our fine pitch LED displays are built for 24/7 mission-critical operation with an expected lifespan of 100,000+ hours (over 7 years). Key reliability features include: redundant power supplies with automatic failover, intelligent thermal management with real-time temperature monitoring, GOB encapsulation protecting LEDs from moisture and dust, and hot-swappable modules that can be replaced in minutes without powering down the entire wall.
