Live
Sports Broadcast
Video Wall
A high-performance broadcast-grade live sports broadcast video wall display engineered for live sports productions, broadcast studios, and media walls. Features ultra-thin lightweight cabinet design, 3840Hz – 7680 Hz refresh rate, high contrast ratio, and GOB protective technology for seamless studio and field integration.
Broadcast Application & Deployment
Watch the Live Sports Broadcast Video Wall Display in action — from studio installation and seamless splicing to slow-motion replay demonstrations.
Have questions? Contact our engineering team for a site visit.
Downloads & Technical Resources
Engineering specifications, structural drawings, and technical documentation.
Get In Touch
Have questions? Reach out to our engineering team directly.
We respond to all inquiries within 24 hours.
Live Sports Broadcast Video Wall Display — Ultimate Color Uniformity
Engineered specifically for the high standards of live sports broadcasting. Our ultra-thin lightweight aluminum cabinets allow for flexible installation in broadcast studios, media walls, and outdoor live sets. Featuring a 3840Hz refresh rate for flawless slow-motion camera capture, high contrast ratio for true-to-life colors, and GOB protective encapsulation for reliable day-to-day studio operations.
The 4K/8K live streaming LED display has point by point brightness/chromaticity calibration technology, ensuring consistent color temperature across the entire screen (with minimal error), supporting wide color gamut coverage, and ensuring no color difference when switching between multiple camera positions.

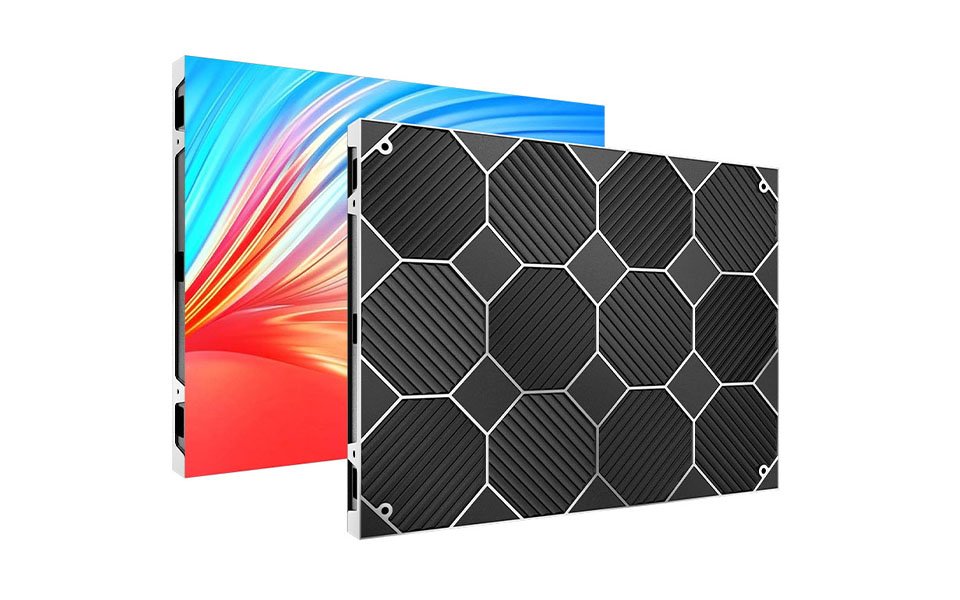

Ultra-Thin & Lightweight
Designed with an ultra-slim profile and lightweight aluminum construction, allowing for effortless deployment in broadcast studios, OB vans, and temporary media walls.
3,840-7680Hz Refresh Rate
Ultra-high refresh rate ensures completely flicker-free visuals for TV cameras, capturing crisp and clear frames during high-speed slow-motion sports replays.

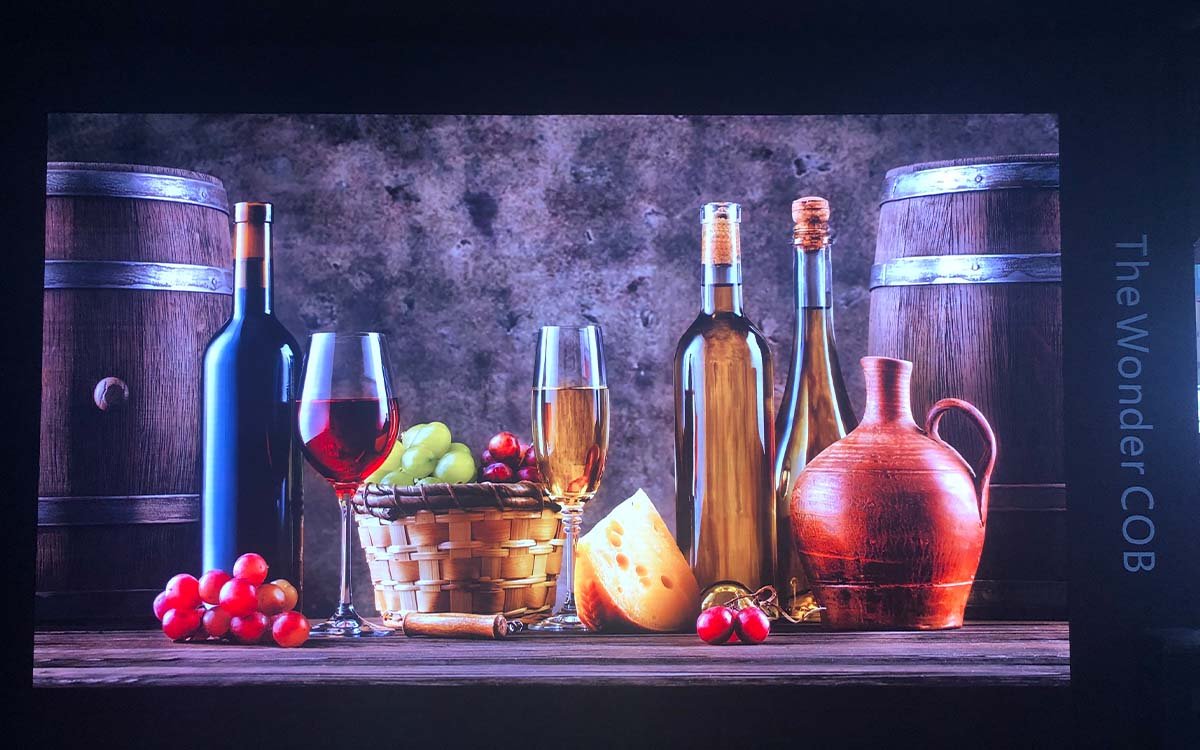

Seamless Splicing
Precision-engineered cabinet edges ensure perfect alignment and eliminate visible gaps, delivering an uninterrupted, immersive panoramic visual experience for live broadcasts.

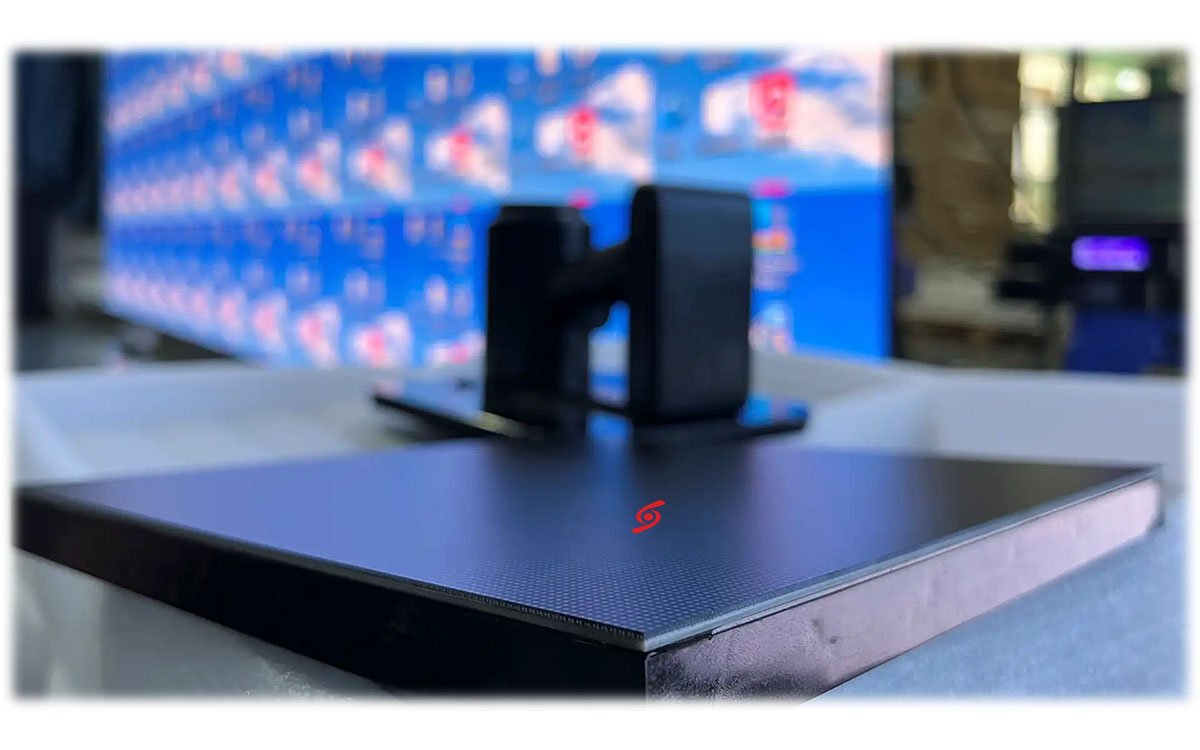

GOB Encapsulation
Advanced GOB protective encapsulation shields LEDs from moisture, dust, and accidental impacts, ensuring long-lasting reliability in the fast-paced broadcast environment.
Complete Live Broadcast Ecosystem
Our Live Sports Broadcast Video Wall Display is part of a comprehensive ecosystem designed for sports media production, ensuring seamless integration with broadcasting networks:
- Signal Management: Seamless integration with 4K video sources, broadcast switchers, and real-time content management systems.
- Color Calibration: Factory and on-site color calibration to guarantee true-to-life broadcast standards, ensuring visuals match camera feeds perfectly.
- Service & Support: On-site engineering training, maintenance programs, and 24/7 technical support for mission-critical live sports broadcast video wall display installations.
Live Sports Broadcast Video Wall Display — Technical Specifications
Our live sports broadcast video wall display is available in ultra-fine pixel pitches from P0.8 to P3.9mm to match your studio viewing distances. Ultra-thin lightweight design, 3840Hz high refresh rate, and high contrast ratio ensure superior on-air performance.
Drive and Control: Advanced driver chips such as S-PWM and low latency high bandwidth control systems are used to achieve microsecond level response and precise timing synchronization.
High brightness and high gray scale technology: The live sports broadcast video wall display can maintain high gray performance even in low light environments in the studio, avoiding the screen being too bright and dazzling or the image appearing gray.
Micro spacing and high resolution: Point spacing (indoor P0.8-P2.5mm, outdoor P2.6-P3.9mm), high pixel density, no graininess when viewed up close.
Reliability and calibration: Long mean time between failures (MTBF), supporting AI point by point calibration and intelligent fault warning, ensuring stable operation of long-term live broadcasts.
Fully customizable dimensions and structural configurations of live sports broadcast video wall available upon request.
| Parameter | LW-IF Series | LW-IF Series | LW-IF Series | LW-OF Series | LW-OF Series |
|---|---|---|---|---|---|
| Pixel Pitch | 0.83 mm | 1.04 mm | 1.25 mm | 2.6 mm | 2.97 mm |
| Module Size | 200×225 mm | 200×225 mm | 200×225 mm | 250×250 mm | 250×250 mm |
| Module Resolution | 240*270 dots | 192*216 dots | 160*180 dots | 96*96 dots | 84*84 dots |
| Cabinet Size | 400×450 mm | 400×450 mm | 400×450 mm | 500×500 mm | 500×500 mm |
| Cabinet Resolution | 480*540 dots | 480*540 dots | 480*540 dots | 192*192 dots | 168*168 dots |
| Brightness | 500-800 nits | 500-800 nits | 500-800 nits | 4,500-5,500 nits | 4,500-5,500 nits |
| Refresh Rate | ≥ 3,840 Hz | ||||
| Contrast Ratio | 10,000:1 | ||||
| Gray Scale | 16–19 bit | ||||
| Viewing Angle | 170° / 165° | ||||
| Cabinet Depth | ≤ 45 mm (Ultra-thin) | ||||
| Input Voltage | AC 110‑240V, 50/60Hz | ||||
| Max. Power Consumption | 480 W/m² | 480 W/m² | 480 W/m² | 600 W/m² | 600 W/m² |
| Avg. Power Consumption | 160 W/m² | 160 W/m² | 160 W/m² | 180 W/m² | 180 W/m² |
| Service Access | Front & Rear | ||||
| Mounting Options | Wall, Standing, Lifting | ||||
| Operating Temperature | -20°C to +50°C | ||||
| Operating Humidity | 10–90% RH | ||||
| Lifetime | 100,000 hours | ||||
| Control System | Novastar / Synchronous | ||||
| Certification | CE, RoHS, FCC, ETL | ||||
What is a live sports broadcast video wall display?
A live sports broadcast video wall display is an ultra-high-definition screen engineered for live sports productions. It features a 3840Hz refresh rate for flicker-free TV capture, ultra-thin cabinets, and seamless splicing for immersive studio and field backgrounds.
Why is 3840Hz important for live sports broadcast video wall display?
The 3840Hz refresh rate eliminates screen flickering and moiré effects during high-speed sports shots and slow-motion replay. This stadium live broadcast screen ensures that sponsors and content remain perfectly sharp and legible on television.
Can it be used as outdoor live event LED video wall?
Absolutely. Our broadcast-grade outdoor live sports screen panels are available in both indoor (high contrast) and outdoor (high brightness up to 8,000+ nits) configurations, backed by robust GOB protection and weatherproofing for outdoor field production.
What is the typical installation timeline?
Installation timelines for live sports broadcast video wall display vary based on studio or field requirements. Typically, structural integration takes 2–3 weeks, followed by 1–2 weeks of signal calibration and testing by our specialized engineering team.
