Description

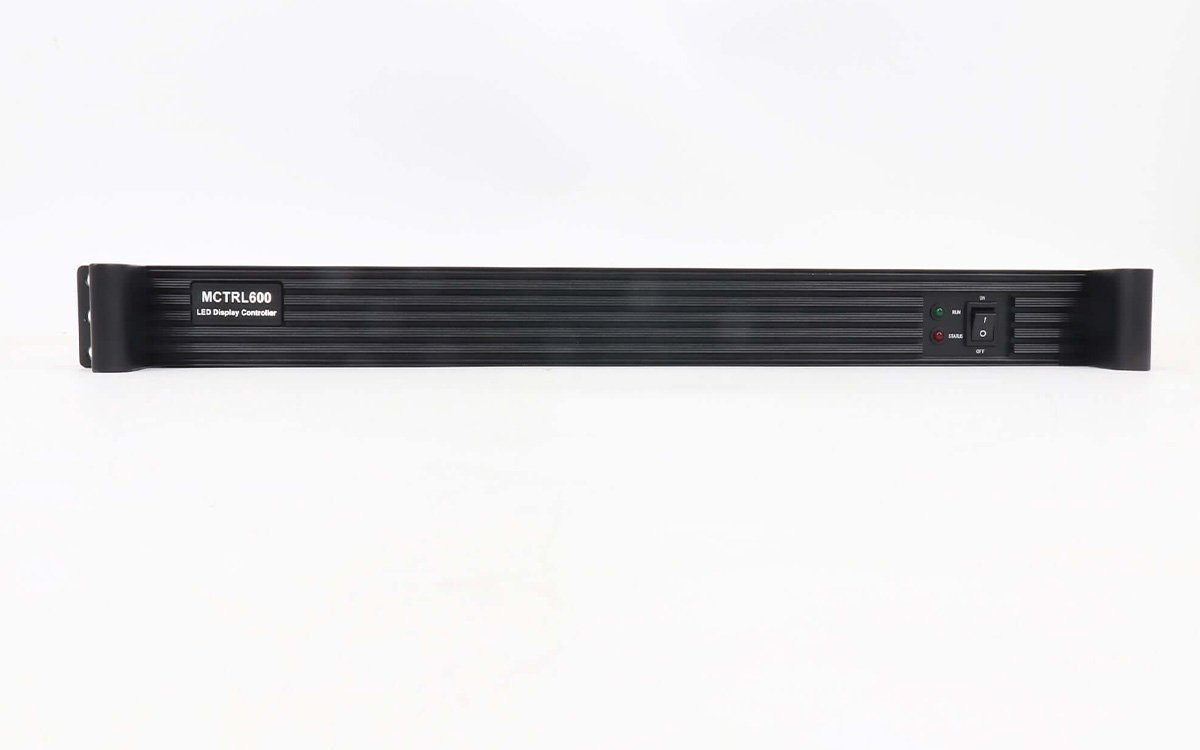

NovaStar MCTRL600 / MCTRL660 LED Display Control Box — Professional HDMI/DVI LED Video Controller with 2.3 Million Pixels, 4 Ethernet Outputs & HDCP Support

The NovaStar MCTRL600 and MCTRL660 LED display control box are professional-grade LED video controllers designed for demanding Stadium LED Displays, All-in-one Solutions, and Custom LED Displays. Both models deliver 2.3 million pixel loading capacity across 4 Gigabit Ethernet outputs (650,000 pixels per port), with HDMI 1.3 and DVI dual video inputs, HDCP Blu-ray direct input, and 12-bit/10-bit/8-bit grayscale processing. The M6 Series LED display control box adds true hot backup, HDMI/DVI loop output, 18-bit grayscale, one-button parameter upload, and smart screen configuration for 30-second setup. Supports resolutions up to 1920×1200@60Hz and custom sizes up to 3840×3840. Certified CE/RoHS/FCC/EAC/IC/UL.

What Is the NovaStar MCTRL600 / MCTRL660 LED display control box?

The NovaStar M6 Series LED display control box is professional LED video controller (sending boxes) developed by NovaStar, the global leader in LED display control systems. Positioned above the entry-level MCTRL300 and MSD300 in NovaStar’s product hierarchy, these standalone controllers are engineered for medium to large-scale LED video walls, stage broadcasts, security monitoring centers, and sports arena displays where higher pixel capacity, dual video inputs, and advanced signal processing are essential.

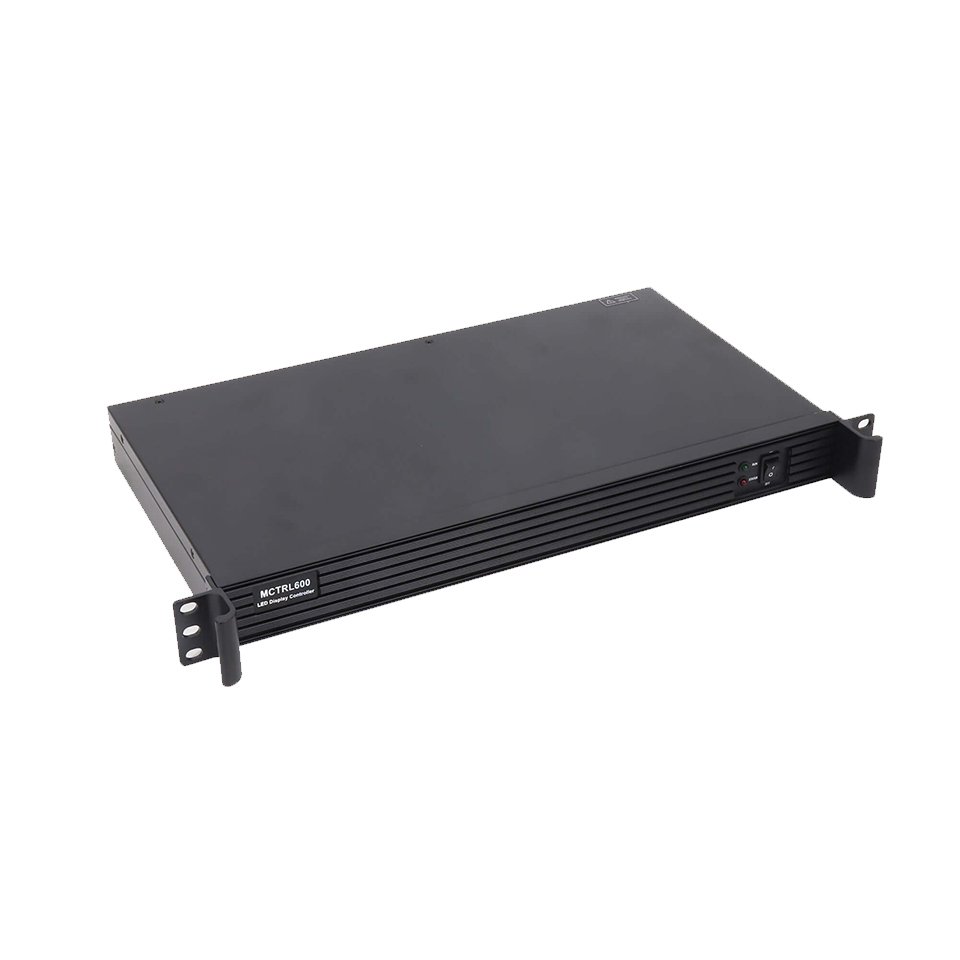

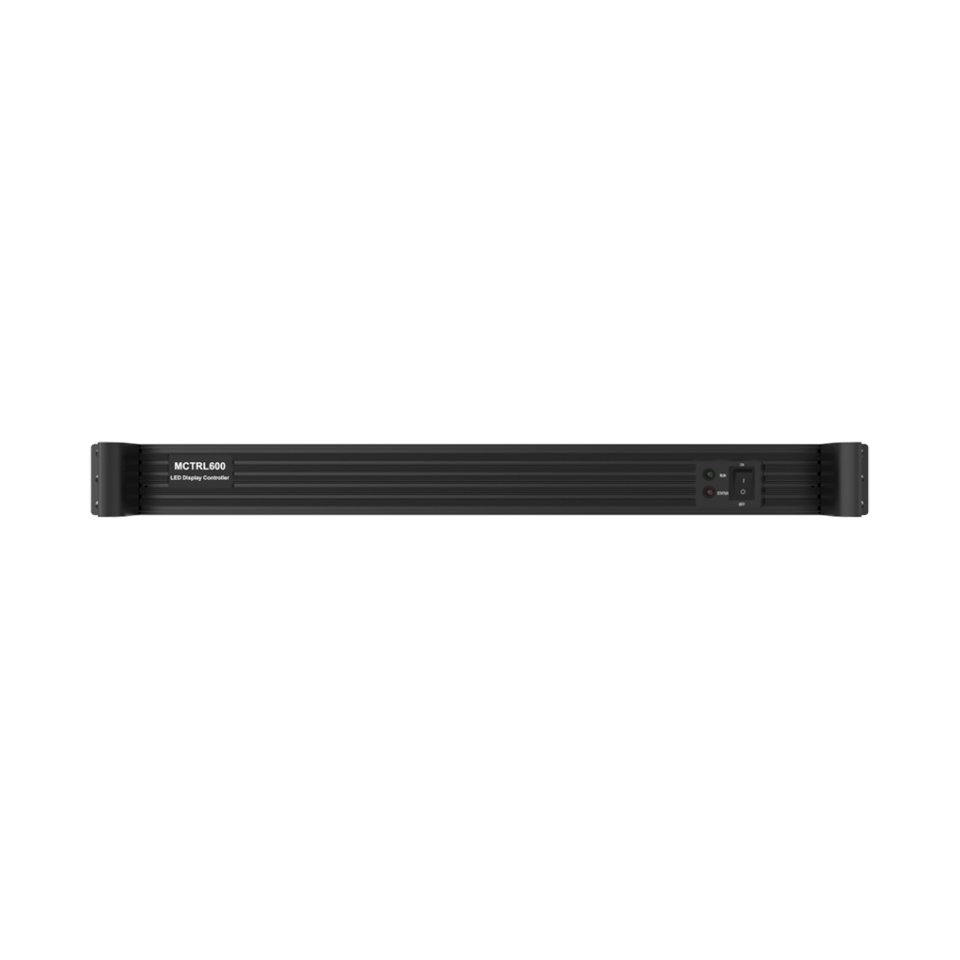

Both models feature a rugged standalone metal enclosure with built-in AC power supply, eliminating the need for external power modules or sending card integration. The MCTRL600 LED display control box serves as the standard professional model, while the MCTRL660 LED display control box represents the upgraded flagship with enhanced backup capabilities, loop outputs, smarter configuration tools, and superior grayscale processing. Both deliver identical core video performance — 2.3 million pixels across four independent Gigabit Ethernet ports — but the MCTRL660 LED display control box adds mission-critical redundancy and operational efficiency features that justify its premium for high-stakes deployments.

MCTRL600 vs MCTRL660 LED display control box — Choose the Right Controller for Your Project

Which one should you choose? Select the MCTRL600 LED display control box for standard professional applications where reliable HDMI/DVI input, 4 Ethernet outputs, and 2.3M pixel capacity meet your requirements. Choose the MCTRL660 LED display control box for mission-critical deployments requiring true hot backup, loop output for monitoring, 18-bit grayscale for ultra-smooth color gradients, and one-button configuration to minimize stage preparation time. The MCTRL660’s G4 engine and smart setup capabilities make it the preferred choice for live events and broadcast environments where setup speed and image perfection are paramount.

2.3 Million Pixel Loading Capacity — Professional-Grade Video Distribution

Both the MCTRL600 LED display control box and MCTRL660 LED display control box deliver a substantial 2.3 million pixel loading capacity, distributed across four independent Gigabit Ethernet output ports with 650,000 pixels per port. This represents a significant upgrade over the MCTRL300’s 1.3M pixels and dual Ethernet architecture, enabling these controllers to drive larger and more complex LED video walls without signal degradation or refresh rate compromise.

The four-port design allows for flexible signal distribution strategies:

• Expanded horizontal coverage — Connect all four ports to drive ultra-wide stadium perimeter displays or highway LED billboards
• Redundant backup paths — Configure primary and backup signal chains across separate ports for failover protection
• Multi-zone control — Assign different ports to different screen zones for independent content management
• High-density fine pitch walls — Drive fine pitch LED displays with high pixel counts per cabinet without port saturation

Dual HDMI/DVI Video Inputs — Universal Source Compatibility

Both models feature dual video input interfaces — HDMI 1.3 and DVI — providing universal compatibility with virtually any video source device. The HDMI input supports modern media players, laptops, Blu-ray players, and professional broadcast equipment, while the DVI input ensures backward compatibility with legacy systems and professional video processors. This dual-input architecture eliminates the need for external HDMI-to-DVI adapters, reducing signal chain complexity and potential points of failure.

The MCTRL660 LED display control box further enhances this capability with HDMI/DVI loop output, allowing the input signal to be passed through to an external monitor, recorder, or secondary controller without signal degradation. This is invaluable for broadcast studios and live event productions where directors and technical directors require real-time monitoring of the source feed independently of the LED wall output.

HDCP Blu-ray Direct Input — Protected Content Playback

Both the MCTRL600 LED display control box and MCTRL660 LED display control box support HDCP (High-bandwidth Digital Content Protection) encrypted signal input, enabling direct playback of protected content from Blu-ray players, streaming devices, and professional broadcast decks without additional decryption hardware. This feature is essential for:

• Cinema and theater LED screens playing commercial film content
• Corporate events displaying copyrighted presentation materials
• Broadcast studios receiving encrypted satellite or cable feeds
• Retail advertising networks displaying licensed promotional videos

12-Bit / 10-Bit / 8-Bit Grayscale — Cinematic Color Depth

The MCTRL600 LED display control box supports 12-bit, 10-bit, and 8-bit grayscale processing, delivering exceptional color depth and smooth gradient reproduction for professional applications. At 12-bit mode, the controller processes 4096 levels per color channel, eliminating banding artifacts in sky gradients, skin tones, and subtle shadow details — critical for broadcast-quality output and fine pitch LED displays where viewers are positioned close to the screen.

The MCTRL660 LED display control box elevates this further with 18-bit grayscale processing, expanding the color depth to 262,144 levels per channel for virtually imperceptible color transitions. Combined with NovaStar’s G4 engine, the MCTRL660 LED display control box eliminates flickering and scanning lines entirely, producing images with exceptional depth, fine detail, and cinematic quality that satisfy the most discerning broadcast and live production standards.

True Hot Backup (MCTRL660) — Zero-Interruption Failover

The MCTRL660 LED display control box features true hot backup architecture that ensures continuous display operation even in the event of primary signal path failure. Unlike standard redundancy systems that may cause momentary flickering or brief blackouts during switchover, the MCTRL660’s advanced failover mechanism maintains seamless image output with no flickering and no blackout. This is achieved through parallel signal processing paths that are constantly synchronized, allowing instantaneous cutover without perceptible interruption.

This capability is indispensable for:

• Live concert and stage productions where any visual interruption damages the audience experience
• Security command centers where continuous situational awareness is mission-critical
• Television broadcast studios where signal integrity directly impacts on-air quality
• Sports arena scoreboards and replay screens where downtime during critical moments is unacceptable

Smart Screen Configuration (MCTRL660) — 30-Second Setup

The MCTRL660 LED display control box introduces an innovative smart configuration architecture that revolutionizes LED wall setup time. Using NovaStar’s proprietary algorithms, the MCTRL660 LED display control box can automatically detect connected receiving cards, determine cabinet topology, and configure screen parameters — all without requiring a connected computer. This one-button configuration process reduces typical setup time from 15-30 minutes to under 30 seconds, dramatically improving operational efficiency for:

• Rental LED display companies with tight load-in schedules at concert venues and trade shows
• Touring productions that relocate LED walls daily between cities
• Corporate event teams requiring rapid same-day setup and teardown
• Broadcast studios with limited technical rehearsal windows

UART Cascading — Unified Multi-Controller Management

Both LED display control box models feature UART IN and UART OUT ports for cascading multiple controllers under unified management. This enables technicians to control complex LED video wall arrays from a single computer, with each cascaded MCTRL600 or MCTRL660 individually addressable for zone-specific configuration. The cascading architecture supports synchronized playback across dozens of display cabinets, making it ideal for:

• Large-scale outdoor LED billboards spanning building facades
• Exhibition halls with multi-zone content requirements
• Shopping mall atriums with panoramic video walls

Pixel-Level Calibration — Broadcast-Grade Color Uniformity

Both controllers support NovaStar’s next-generation calibration technology, working with NovaLCT and NovaCLB software to deliver fast, efficient pixel-level brightness and chroma correction. This process measures each LED pixel’s output across the entire display and generates correction coefficients that eliminate brightness variations and color shifts between adjacent modules — essential for fine pitch LED displays and GOB LED screens where uniformity directly impacts perceived image quality.

MCTRL600/660 vs MCTRL300 LED display control box — Performance Comparison

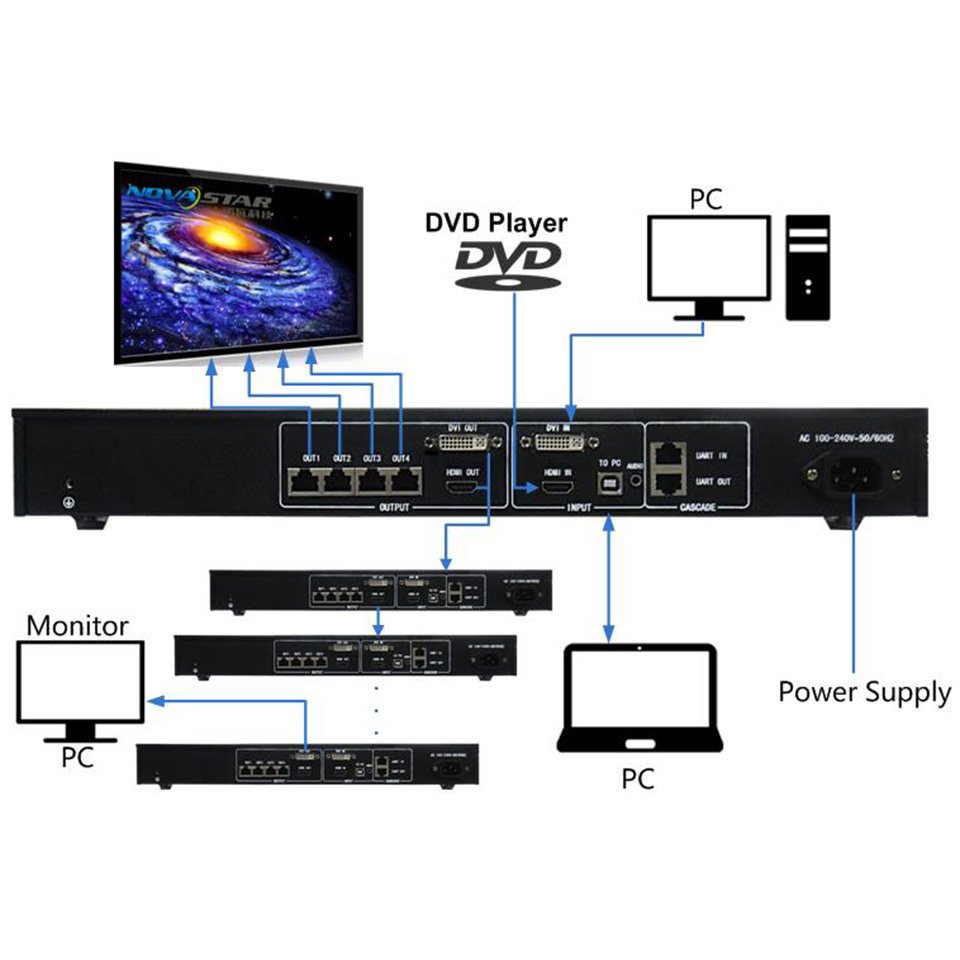

Complete Interface Configuration

Supported Resolutions & Custom Configurations

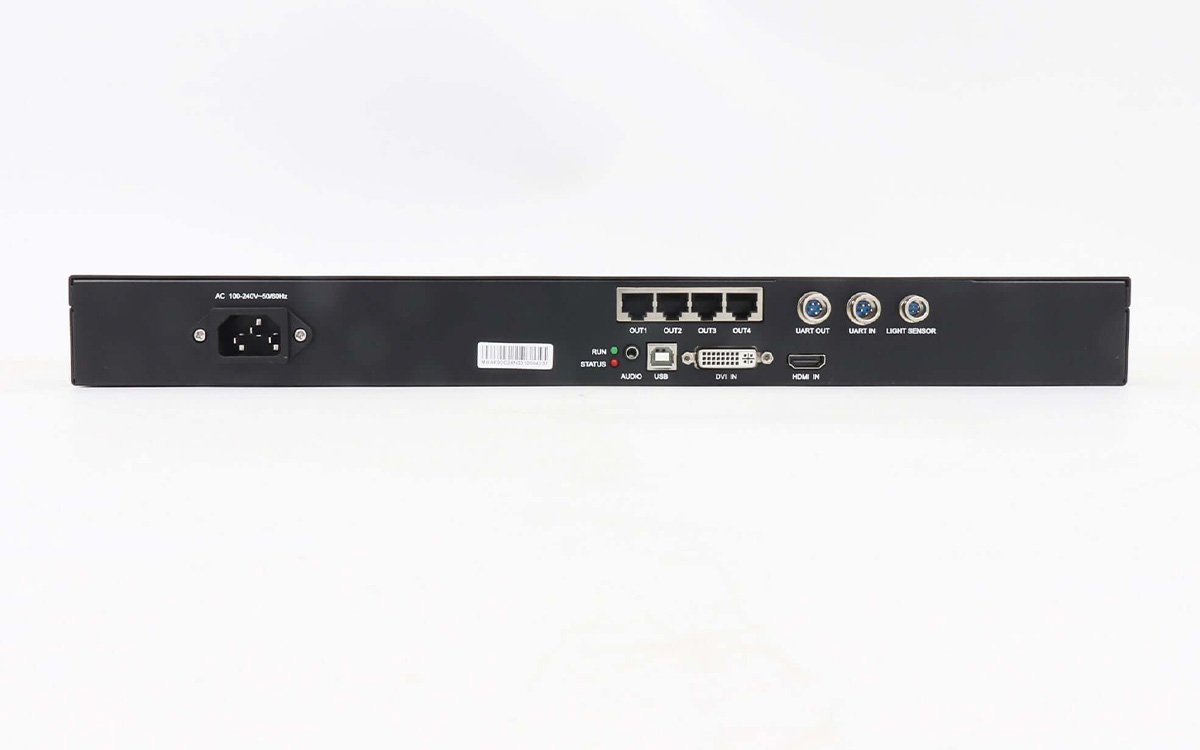

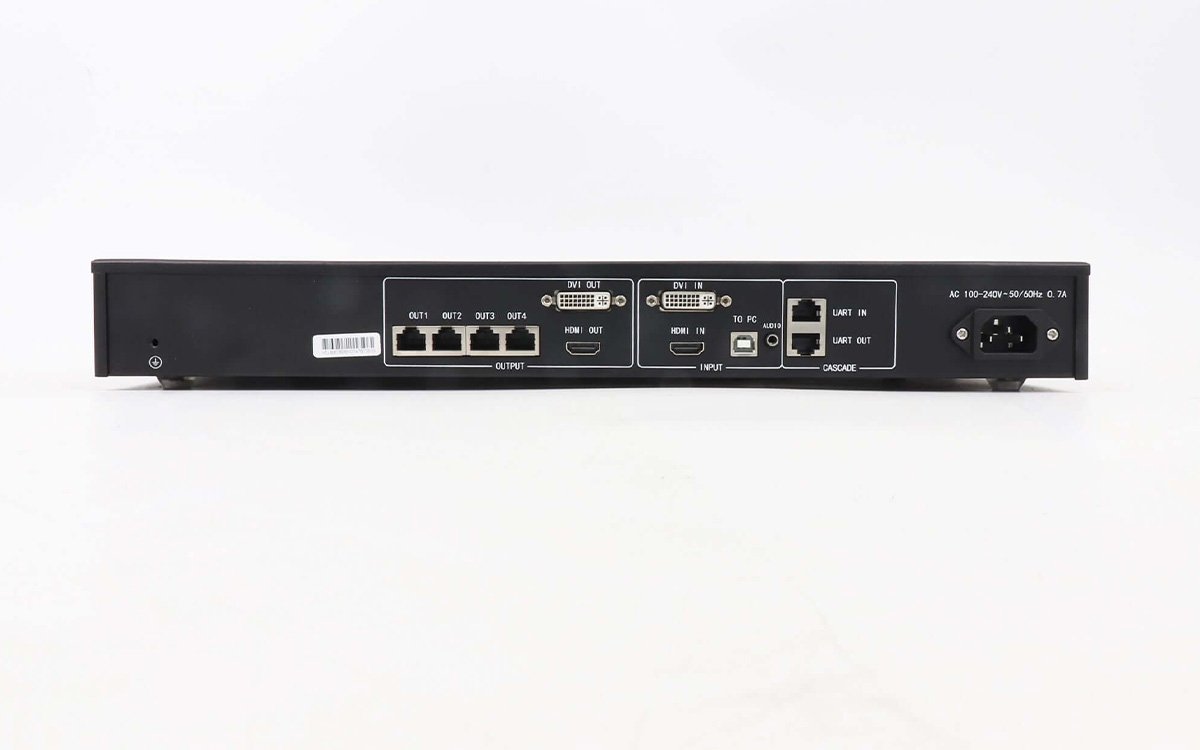

*MCTRL600 LED display control box – Back View

*MCTRL660 LED display control box – Back View

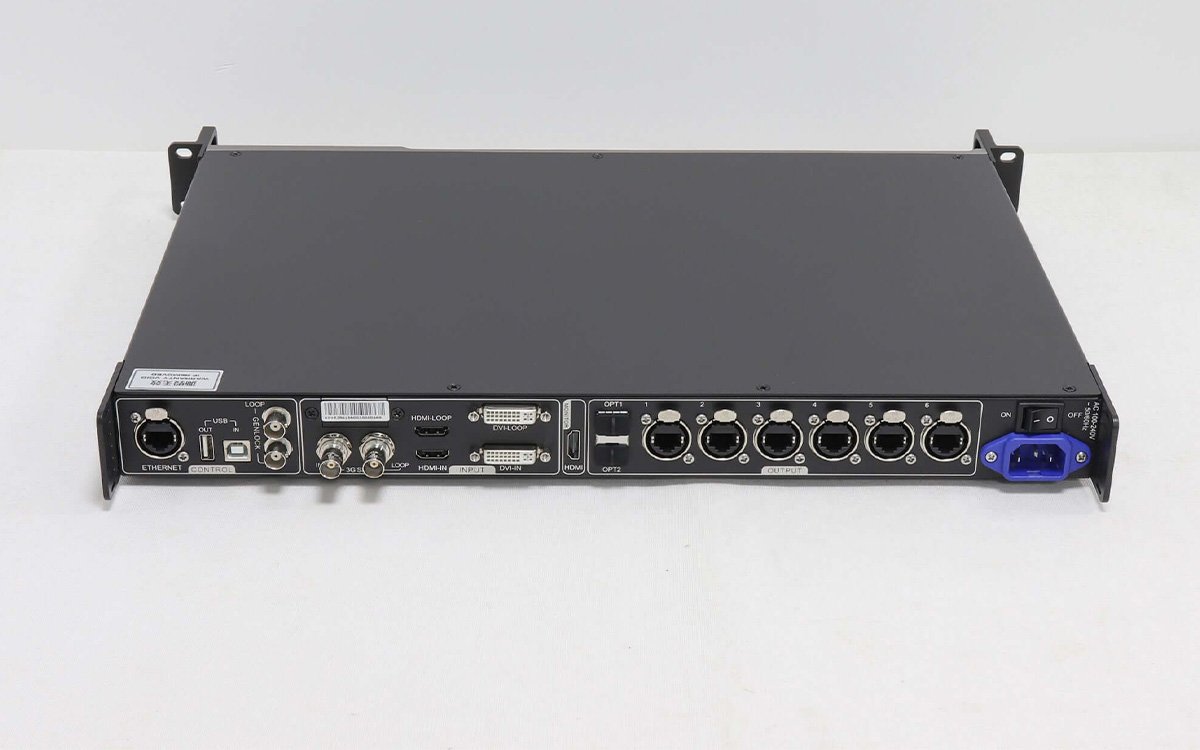

*MCTRL660 pro LED display control box – Back View

Application Scenarios — Where MCTRL600/660 Controllers Excel

• Live Concert & Stage Productions — MCTRL660’s true hot backup and 30-second setup are essential for touring shows with tight schedules; 4 Ethernet outputs drive large stage backdrops and IMAG screens
• Broadcast Studios & TV Stations — HDMI/DVI dual input with loop output enables source monitoring; 12-bit/18-bit grayscale ensures flicker-free camera capture; HDCP handles encrypted broadcast feeds

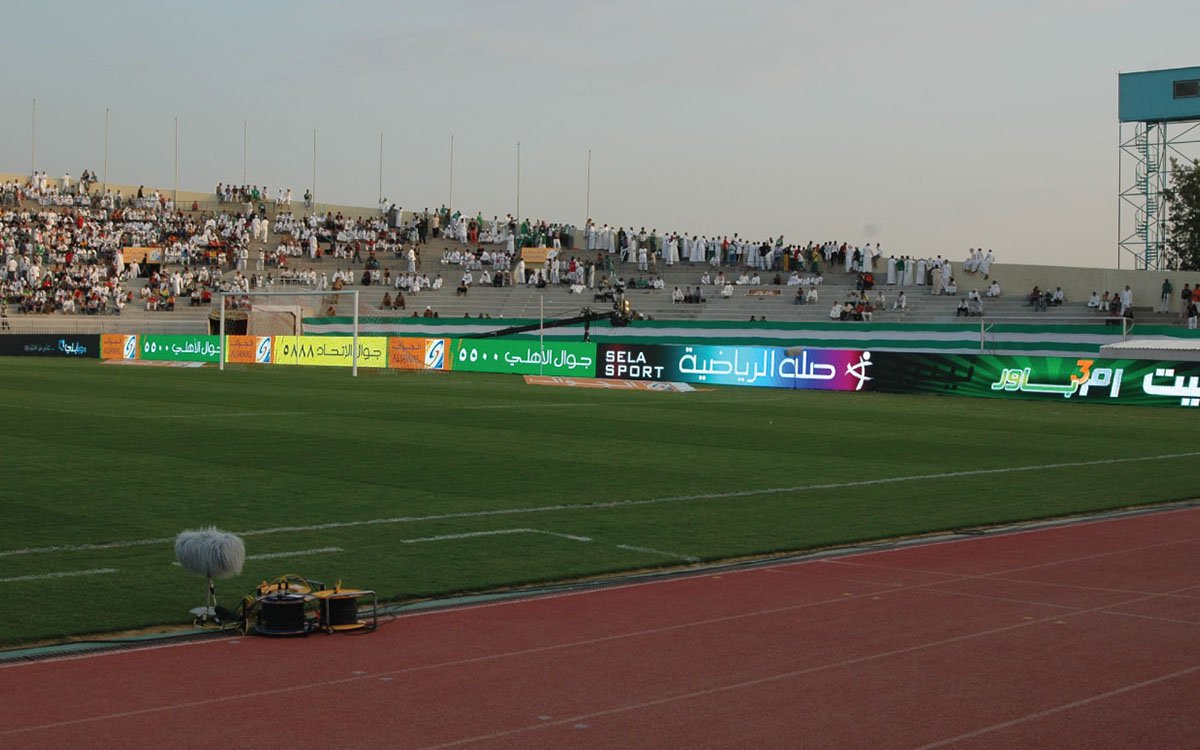

• Sports Arenas & Stadiums — 2.3M pixel capacity drives massive scoreboards and perimeter displays; wide temperature tolerance handles outdoor exposure; light sensor integration auto-adjusts for day/night games
• Security Monitoring Centers — 24/7 reliability with hot backup failover; 4 Ethernet outputs support multi-zone surveillance walls; pixel calibration ensures color accuracy for video analysis
• Corporate Conference Centers — HDMI input compatible with modern presentation systems; dual-input switching between laptop and video conferencing hardware; cascading supports expandable meeting room video walls
• Exhibition & Trade Show Booths — MCTRL660’s smart configuration enables rapid booth setup; 4-port architecture supports complex multi-screen booth designs

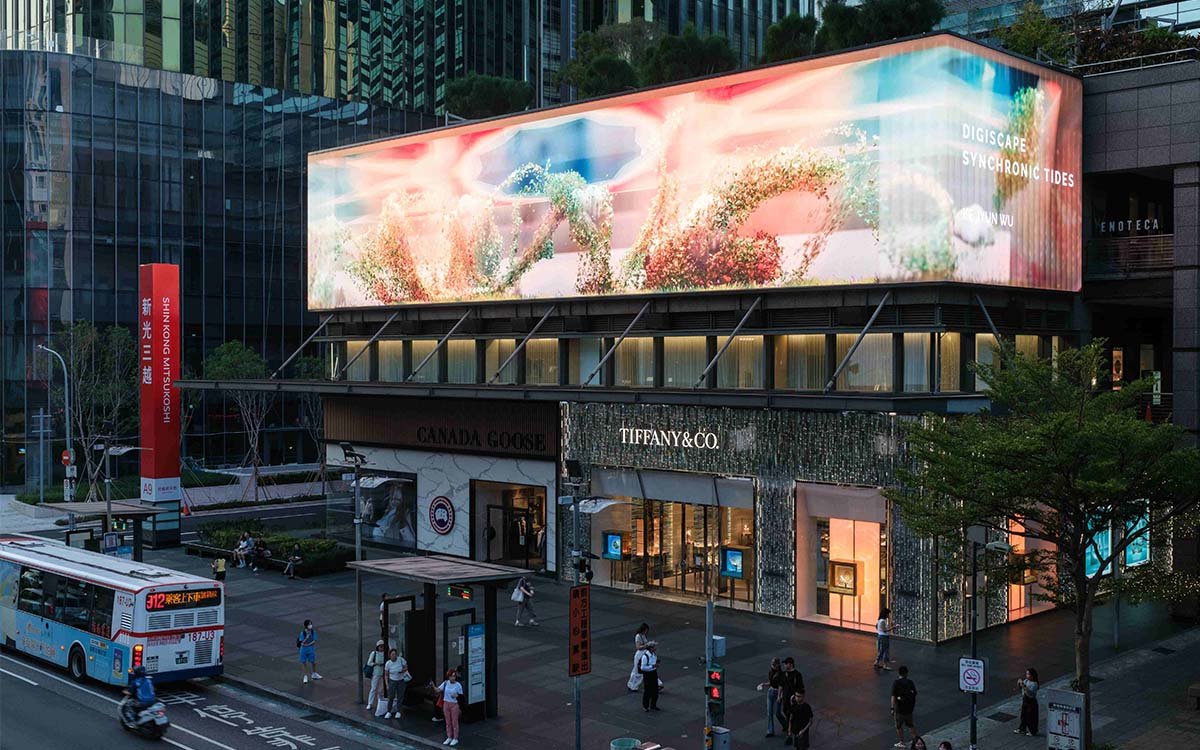

• Retail & Shopping Mall Atriums — HDCP support enables licensed commercial content playback; 2.3M pixels drive panoramic advertising walls; YCrCb format support ensures accurate color reproduction for brand content
• Cinema & Theater LED Screens — HDCP Blu-ray direct input eliminates decryption hardware; 18-bit grayscale (MCTRL660) delivers cinematic color depth for film content

Why Choose GOB LED Display NovaStar MCTRL600 / MCTRL660 LED display control box

1. Two Tiers, One Professional Standard — MCTRL600 for standard professional needs; MCTRL660 for mission-critical deployments with enhanced backup and setup features
2. 2.3 Million Pixel Power — 77% more capacity than M3 series, enabling larger and more complex LED video walls
3. Dual HDMI/DVI Inputs — Universal source compatibility without adapters; MCTRL660 adds loop output for monitoring
4. HDCP Blu-ray Direct Input — Play protected commercial content without additional decryption hardware
5. 4 Gigabit Ethernet Outputs — Flexible distribution strategies: expanded coverage, redundant backup, or multi-zone control
6. True Hot Backup (MCTRL660) — Zero-interruption failover with no flickering or blackout during switchover
7. 18-Bit Grayscale (MCTRL660) — 262,144 color levels per channel for imperceptible gradients and cinematic quality
8. 30-Second Smart Configuration (MCTRL660) — One-button setup without computer, reducing stage preparation time by 95%
9. NovaStar G4 Engine (MCTRL660) — Eliminates flickering and scanning lines for perfect image quality
10. 12-Bit/10-Bit/8-Bit Grayscale (Both) — Exceptional color depth for broadcast and fine pitch applications
11. Multiple Video Formats — RGB, YCrCb4:2:2, YCrCb4:4:4 support ensures accurate color space handling
12. Full International Certification — CE, RoHS, FCC, EAC, IC, and UL (MCTRL660) compliant for global deployment
13. Rackmount Ready — Standard 1U form factor integrates seamlessly into professional AV racks
14. Competitive Value — MCTRL600 at $800 and MCTRL660 at $880 deliver professional 4-output performance at accessible price points

Compatible Products — Build Your Complete NovaStar LED Control System

The MCTRL600 and MCTRL660 work seamlessly with the following GOB LED Display control system components:

• MRV Series Receiving Cards — MRV328, MRV412, MRV336, MRV208 with mapping, 3D support, and color calibration
• MSD300 Sending Card — Entry-level 1.3M pixel sending card for smaller displays
• MCTRL300 LED display control box — Budget-friendly standalone controller for small to medium LED walls
• MCTRL 4K Processor — Ultra-HD controller for 4K LED video walls and demanding broadcast applications
• NovaLCT Software — Professional LED display configuration, calibration, and monitoring platform

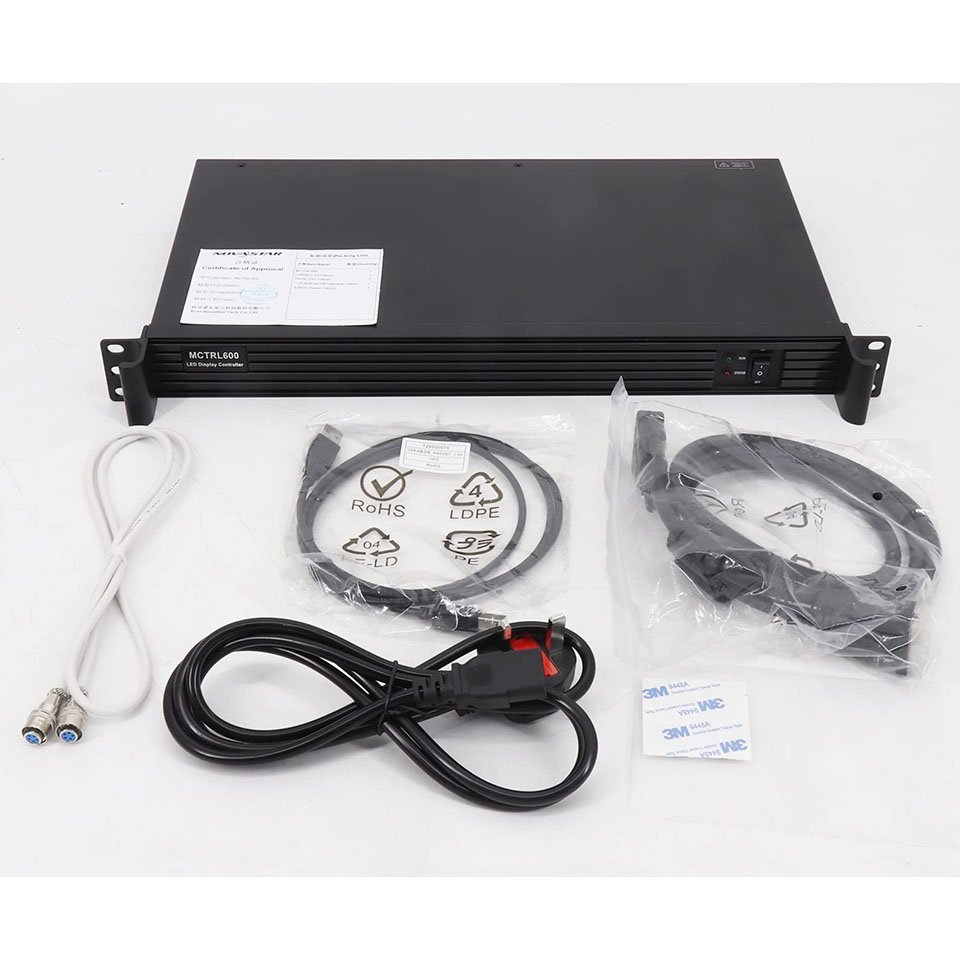

Packaging & Shipping

Warranty & Guarantee

• No-Risk Money Back Guarantee — 30-day return policy for unused products in original packaging
• Hassle-Free Refund Policy — Full refund within warranty period for manufacturing defects
• Secure Payment Processing — SSL-encrypted transactions via major credit cards, PayPal, and wire transfer
• 2-Year Standard Warranty — Covers controller hardware, firmware, Ethernet ports, and power supply
• Lifetime Technical Support — Remote diagnostics, firmware updates, and email support from certified NovaStar engineers
• Free Configuration Assistance — Our technical team provides remote setup guidance for first-time installations
