P1.25–P2.5mm GOB LED Lectern Display GL-S Series — Interactive Digital Podium for Presentations & Events
The SoarLume GL-S Series GOB LED Lectern Display is a next-generation interactive digital podium that seamlessly integrates a high-resolution LED display surface into a professional-grade lectern chassis. Featuring Glue-on-Board (GOB) soft magnetic LED modules, NovaStar TB20-PLUS control architecture, and a scratch-resistant semi-gloss steel cabinet, this all-in-one presentation platform transforms conventional speaking engagements into immersive visual experiences for conferences, corporate events, houses of worship, educational institutions, and hospitality venues.
Available in four pixel pitch configurations — P1.25mm, P1.5mm, P1.86mm, and P2.5mm — the GOB LED Lectern Display Series offers the precision to match your viewing distance, content complexity, and investment parameters, all built on the same robust steel-frame platform and professional control ecosystem.
Integrated LED Lectern Architecture — Where Furniture Meets Display Technology
The GOB LED Lectern Display Series redefines the traditional lectern by embedding a full-face LED display screen into the frontal surface of a purpose-built podium chassis. Unlike conventional podiums with static signage or attached monitors, this integrated design delivers:

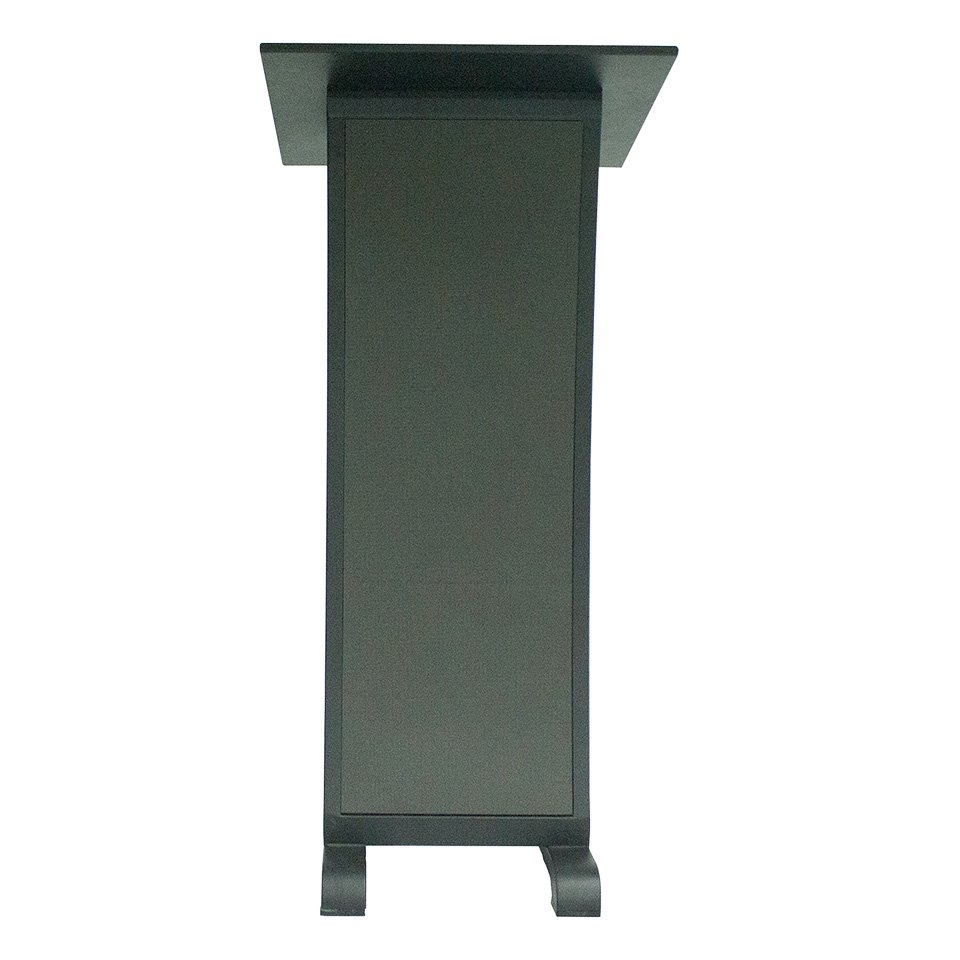

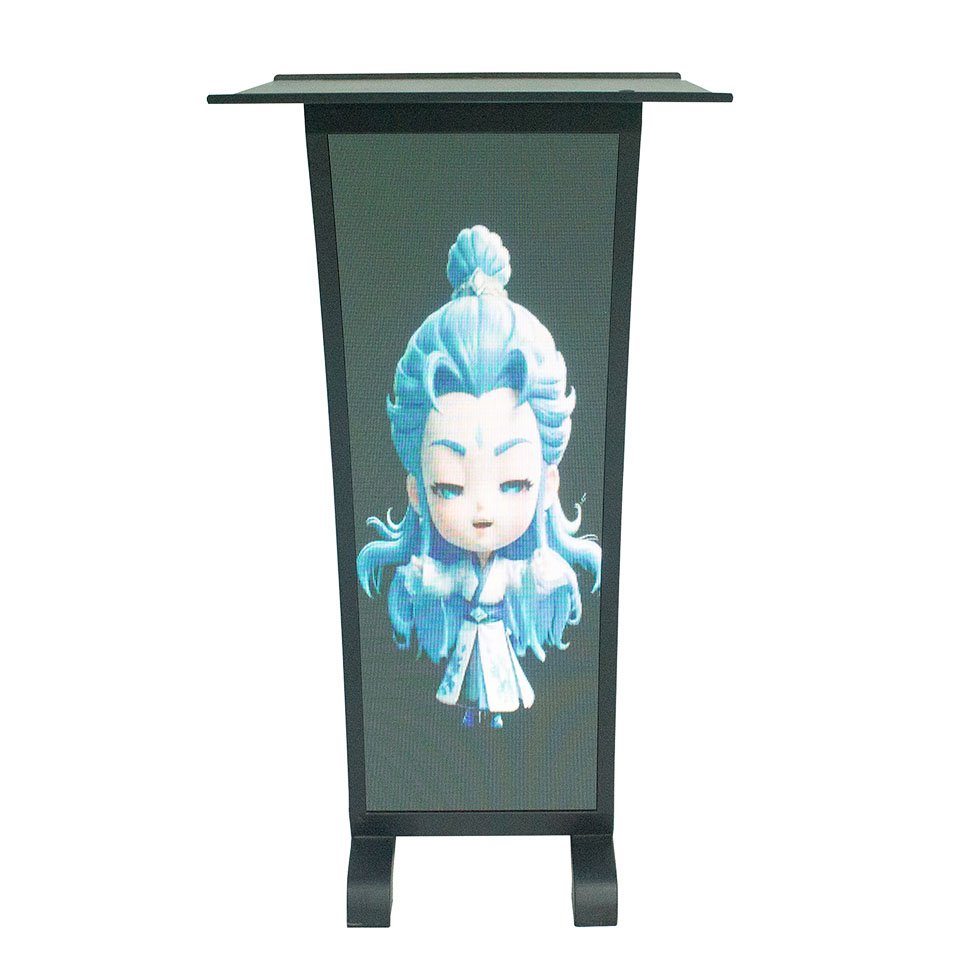

- Front-facing LED canvas: The primary display face (320 × 960mm active area) occupies the entire frontal lectern surface, ensuring maximum visibility for institutional logos, speaker identification, session titles, and dynamic visual content
- Ergonomic presenter workspace: The podium top surface provides ample space for notes, laptops, and presentation controllers while maintaining clean sightlines between speaker and audience

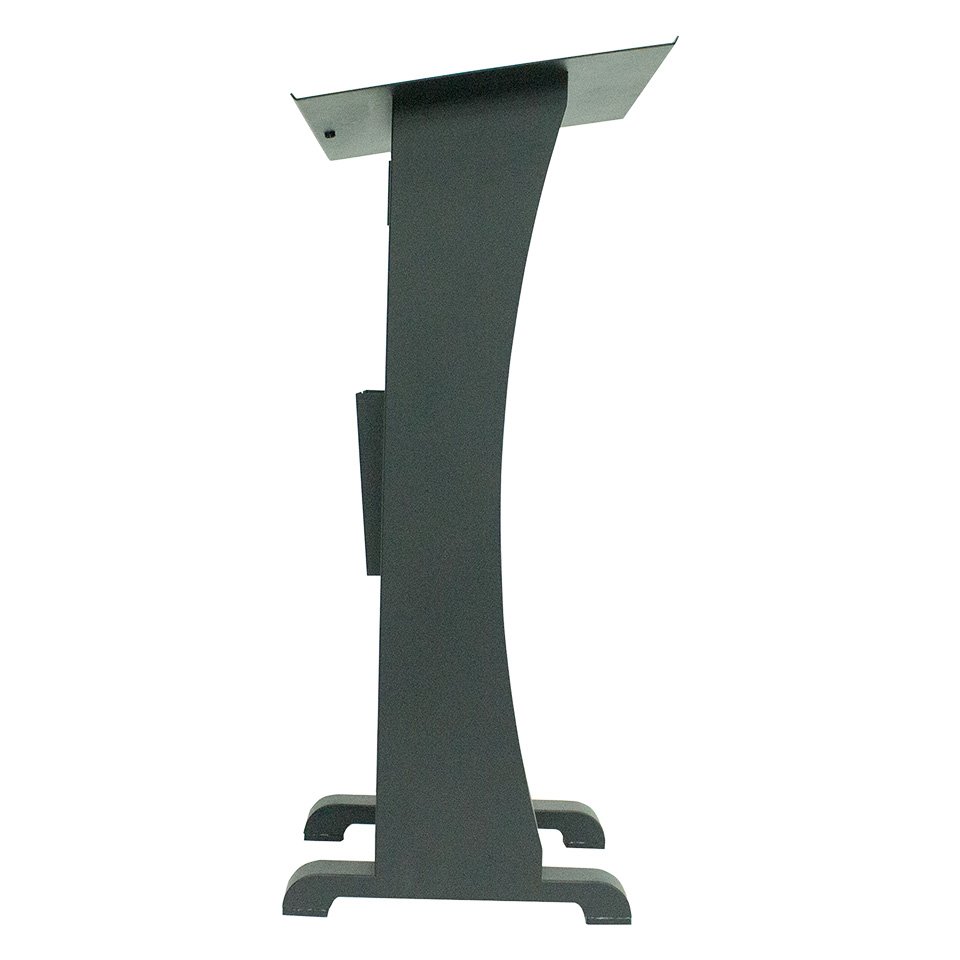

- Professional semi-gloss finish: Scratch-resistant black steel cabinet with customizable color options communicates institutional quality and withstands rigorous touring and rental use

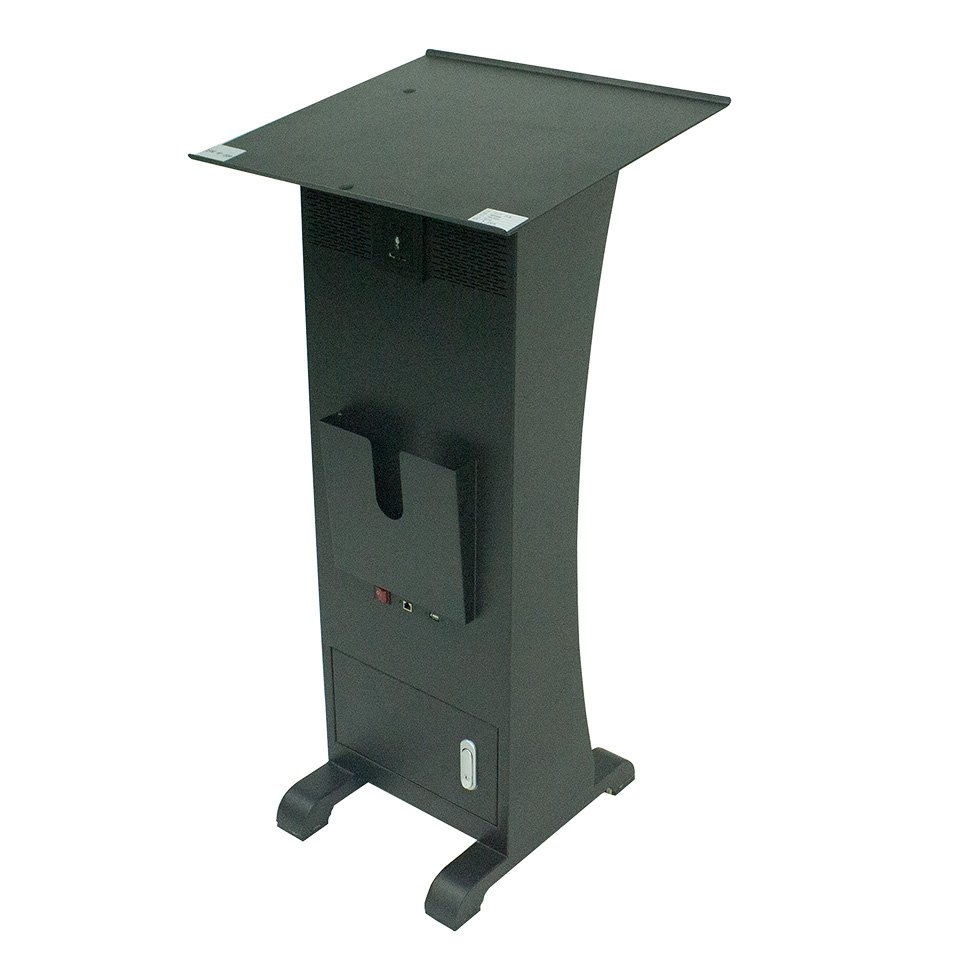

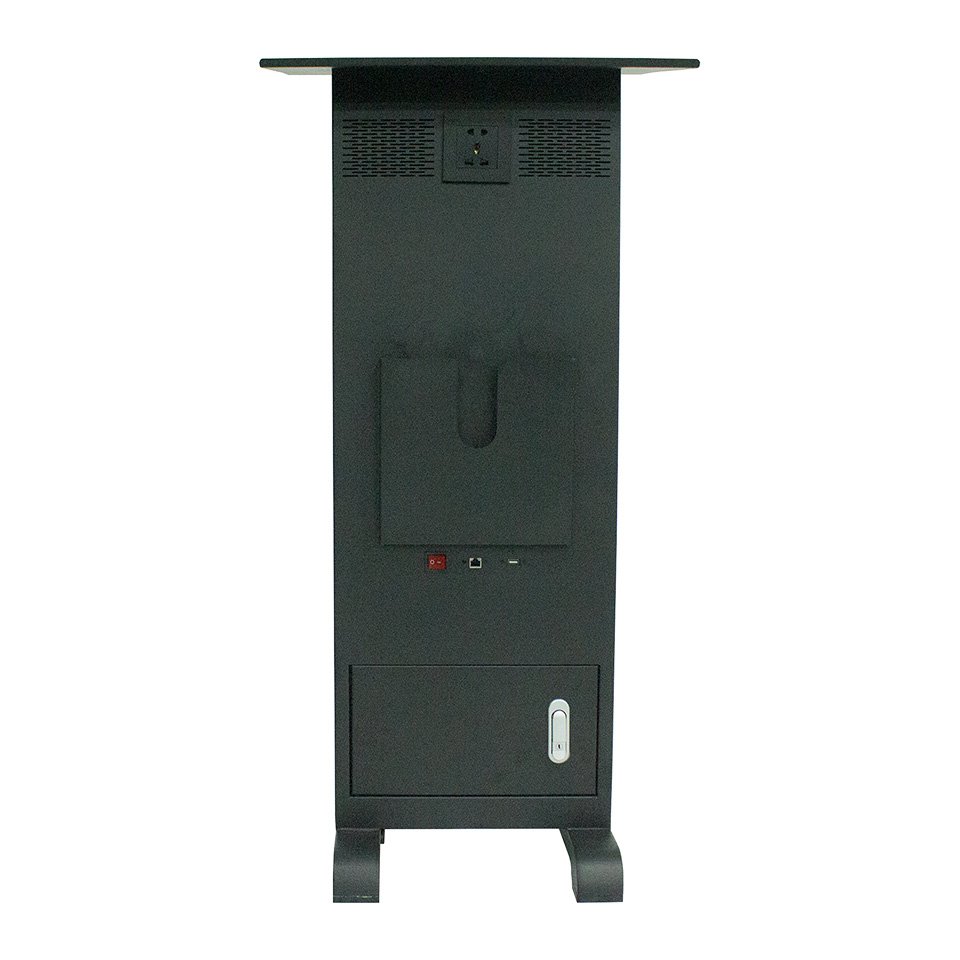

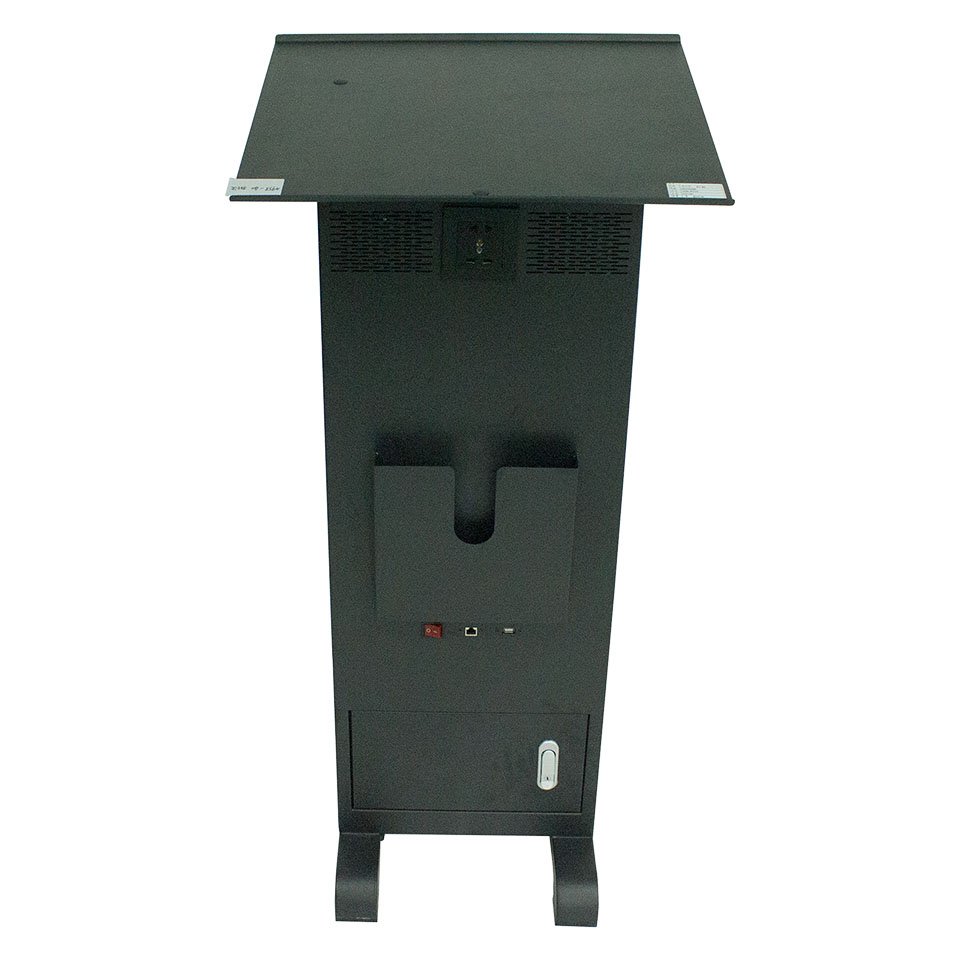

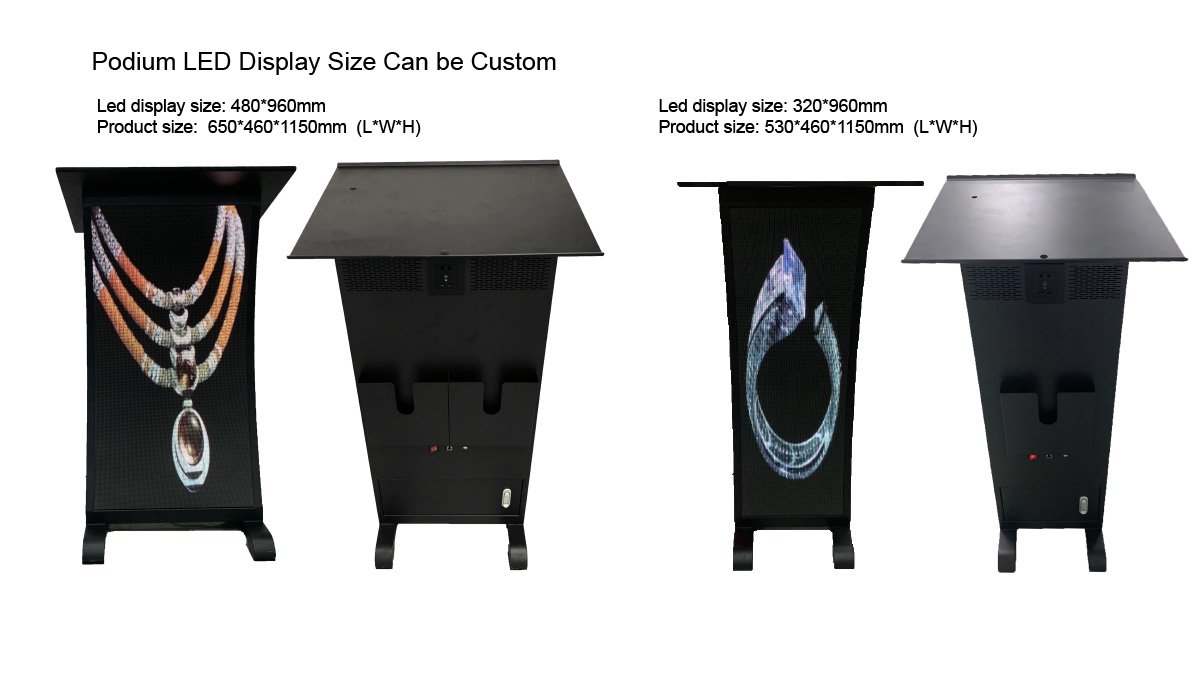

- Compact footprint: At L530 × W460 × H1150mm and 50kg per unit, the GOB LED Lectern Display Series fits standard stage configurations, conference rooms, and event spaces without requiring structural modifications
GOB Soft Magnetic LED Modules — Durability Meets Serviceability

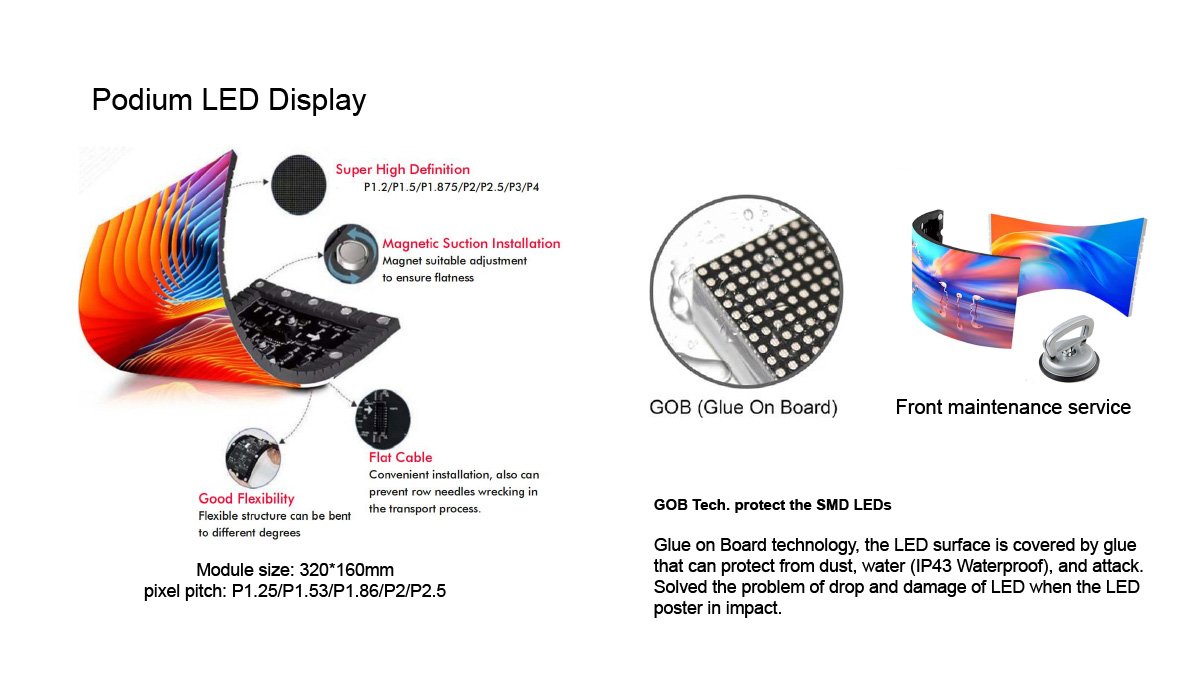

The GOB LED Lectern Display Series employs Glue-on-Board (GOB) encapsulated soft magnetic LED modules — an advanced module technology that combines surface protection with front-service convenience:
- GOB protective encapsulation: Transparent epoxy resin layer applied over the LED array creates a smooth, flat surface that resists scratches, impacts, and moisture — critical for podium applications where the display face is exposed to presenter contact, equipment placement, and frequent cleaning
- Soft magnetic module architecture: Flexible PCB substrate with integrated magnetic attachment points enables tool-free front maintenance. Technicians can remove and replace individual modules in seconds using a standard suction tool, eliminating downtime and reducing service costs
- Superior surface flatness: The GOB coating eliminates exposed lamp beads and solder joints, creating a seamless visual surface that enhances content presentation and presenter professionalism
- Consistent color performance: Tight binning tolerances across all pixel pitch options ensure uniform brightness and chromaticity from edge to edge
NovaStar TB20-PLUS Control System — Broadcast-Grade Content Processing
The GOB LED Lectern Display Series integrates the NovaStar TB20-PLUS main controller paired with MRV412-N receiving cards, delivering professional-grade content management and signal distribution:
- 3840Hz high refresh rate: Broadcast-standard flicker-free output eliminates on-camera banding and ensures pristine image capture for live streaming, recording, and broadcast transmission
- 14–16 bit gray scale processing: Exceptional color depth with smooth gradient rendering for photographic-quality imagery and video playback
- Dual-mode operation: Supports both synchronous (HDMI/LAN) playback for live presentations and asynchronous (USB/Wi-Fi) operation for standalone content loops
- Wi-Fi wireless connectivity: Content updates, scheduling changes, and real-time messaging via computer software and mobile applications — no physical network connection required at the podium location
Plug & Play Presentation Platform
The GOB LED Lectern Display Series is engineered as a true turnkey presentation solution requiring zero on-site assembly or technical configuration:
- Factory-calibrated alignment: LED modules are pre-aligned, color-matched, and brightness-calibrated at the factory, ensuring consistent visual performance immediately upon power-on
- Integrated power and control: Built-in LP.2000W1.711-NS switching power supply (UL/CE certified) and NovaStar control hardware eliminate external component dependencies
- Universal voltage input: AC 110–220V auto-switching power supply (150W max) for global deployment compatibility
- Instant content publishing: Simply position the lectern, power on, and publish content via Wi-Fi — no specialized AV technician required for operation
Professional Mobility & Transport
Each GOB LED Lectern Display unit ships in a durable flight case or reinforced wooden crate with 1-in-1 packaging configuration, ensuring:
- Touring-grade protection: Impact-resistant, waterproof, and insulated construction safeguards the LED display and steel cabinet during repeated transport cycles
- Rapid deployment: Pre-assembled design requires no on-site module installation or calibration, reducing setup time to minutes
- Rental fleet efficiency: Robust packaging and modular maintenance architecture make the GOB LED Lectern Display Series exceptionally suitable for event rental companies and touring production houses
Pixel Pitch Options — Match Your Visual Requirements
| Specification | GL-S P1.25 | GL-S P1.5 | GL-S P1.8 | GL-S P2.5 |
|---|---|---|---|---|
| Pixel Pitch | 1.25 mm | 1.5 mm | 1.86 mm | 2.5 mm |
| Resolution | 256 × 768 | 208 × 624 | 172 × 516 | 128 × 384 |
| Optimal Viewing Distance | 1.0–5.0 m | 1.5–7.5 m | 1.8–9.0 m | 2.5–12.5 m |
| Pixel Density | 640,000 dots/m² | 444,444 dots/m² | 288,265 dots/m² | 160,000 dots/m² |
| Content Detail | Ultra-fine text & graphics | High-definition imagery | Standard HD content | Bold graphics & video |
| Price Point | Premium ($1,799) | High-End ($1,699) | Professional ($1,599) | Value ($1,559) |
| Stock | 50 units | 45 units | 45 units | 45 units |
All four models share identical cabinet dimensions (L530 × W460 × H1150mm), display area (320 × 960mm), weight (50kg), refresh rate (3840Hz), brightness (600nits), control system (NovaStar TB20-PLUS + MRV412-N), power supply (LP.2000W1.711-NS), input voltage (AC 110–220V), GOB protection, soft magnetic module architecture, and Wi-Fi connectivity. The only differences are pixel density, resolution, and optimal viewing distance.

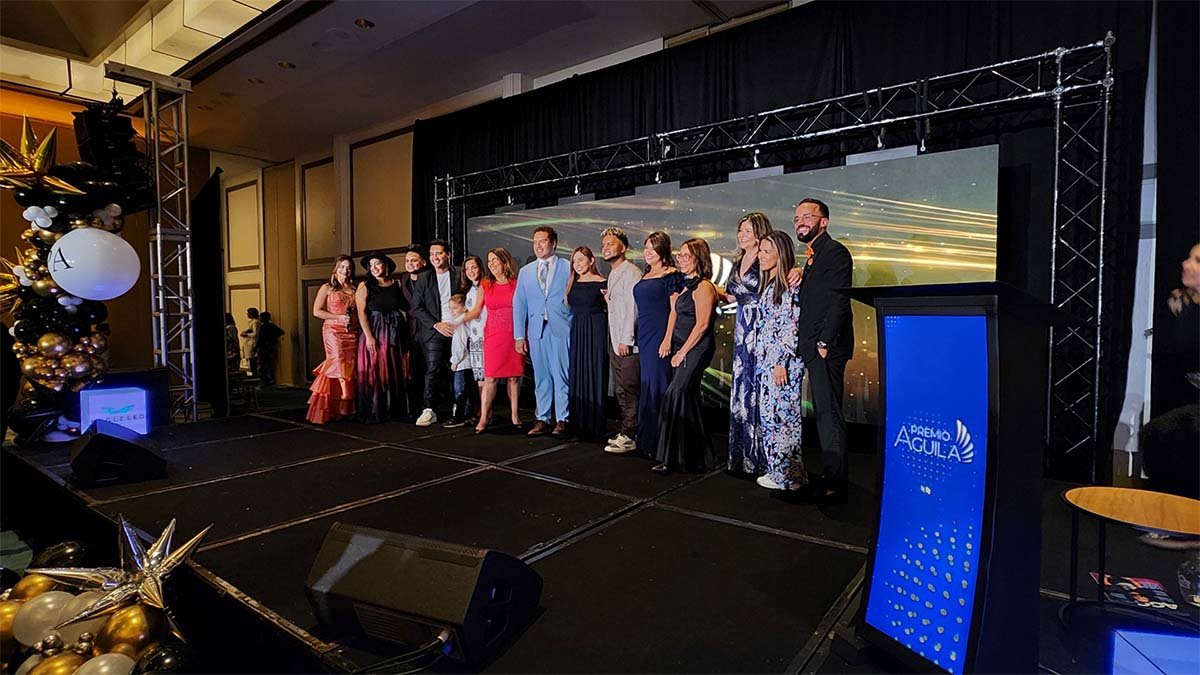

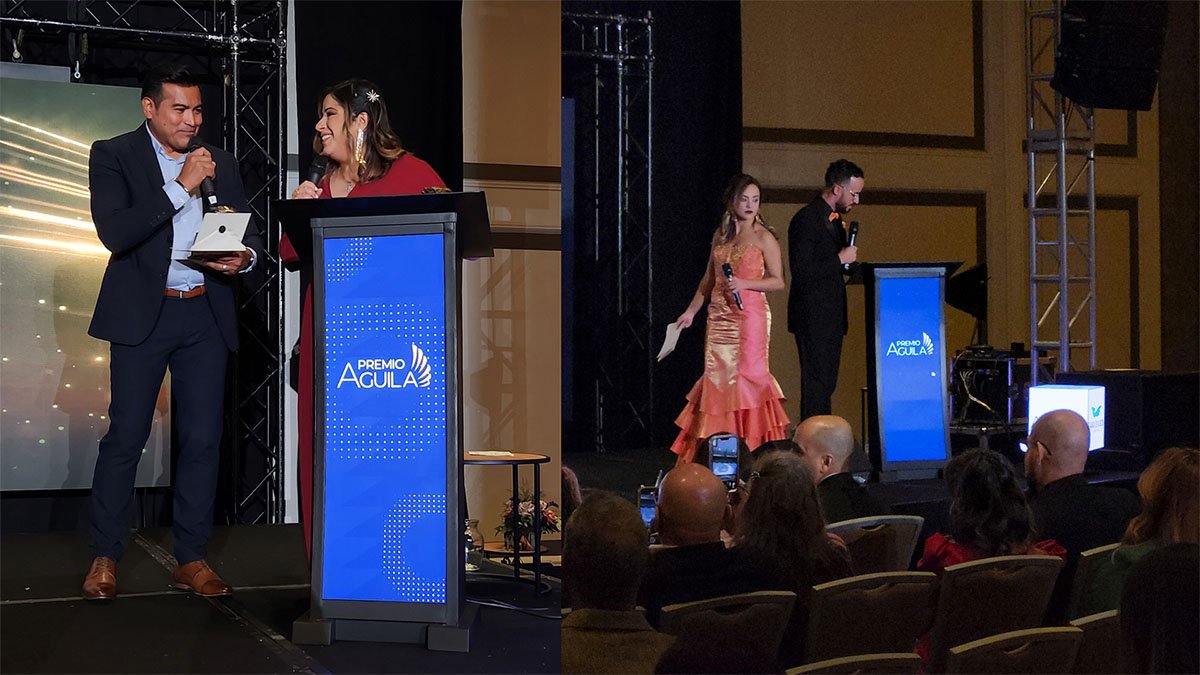

Application Scenarios
- Corporate Conferences & Keynote Addresses — Dynamic speaker identification, institutional branding, real-time agenda updates, and live data visualization (recommended: P1.25 or P1.5 for close-proximity broadcast capture)
- Educational Institutions & Lecture Halls — Course title displays, instructor identification, institutional messaging, and interactive content for academic presentations (all pixel pitches suitable depending on venue size)
- Houses of Worship & Religious Services — Scripture references, hymn lyrics, sermon titles, and live worship lyrics with elegant, distraction-free presentation (recommended: P1.5 or P1.8 for mid-size sanctuaries)
- Hotels & Convention Centers — Event branding, speaker introductions, sponsor recognition, and directional messaging for multi-session conferences (recommended: P1.8 or P2.5 for large ballrooms)
- Trade Shows & Exhibition Booths — Product demonstrations, company branding, and interactive presentations that draw foot traffic and communicate technical sophistication (recommended: P1.25 for premium booth presence)
- Government & Civic Ceremonies — Official insignia, speaker credentials, protocol information, and ceremonial content with institutional gravitas (all pixel pitches suitable)
- Nightclubs, Bars & Entertainment Venues — DJ identification, event promotion, sponsor messaging, and atmospheric visual content (recommended: P2.5 for cost-effective high-impact deployment)
Explore Related Solutions: Multimedia Desk | Visual Podium | Exhibition Cabinet | Stadium Venues | Irregular LED Display
Why Choose GOB LED Lectern Display Series LED Lectern Display
- Integrated LED Lectern Design — Full-face LED display embedded in professional-grade steel podium chassis, eliminating external monitor dependencies
- Four Pixel Pitch Options — P1.25 to P2.5 configurations to match viewing distance, broadcast requirements, and budget parameters
- GOB Soft Magnetic Module Technology — Scratch-resistant encapsulation combined with tool-free front maintenance for maximum uptime
- 3840Hz High Refresh Rate — Broadcast-standard, camera-friendly output with zero on-screen banding for live streaming and recording
- NovaStar TB20-PLUS Professional Control — Industry-leading content processing with Wi-Fi wireless management
- True Plug & Play — Factory-calibrated, pre-assembled, zero on-site configuration required
- Wi-Fi Wireless Connectivity — Remote content updates and real-time messaging without physical network cabling
- Scratch-Resistant Semi-Gloss Finish — Professional black steel cabinet with customizable color options for institutional branding
- Universal Voltage — AC 110–220V auto-switching for global deployment compatibility
- Touring-Grade Transport Packaging — Flight case or wooden crate with 1-in-1 configuration for safe international freight and rental fleet operations

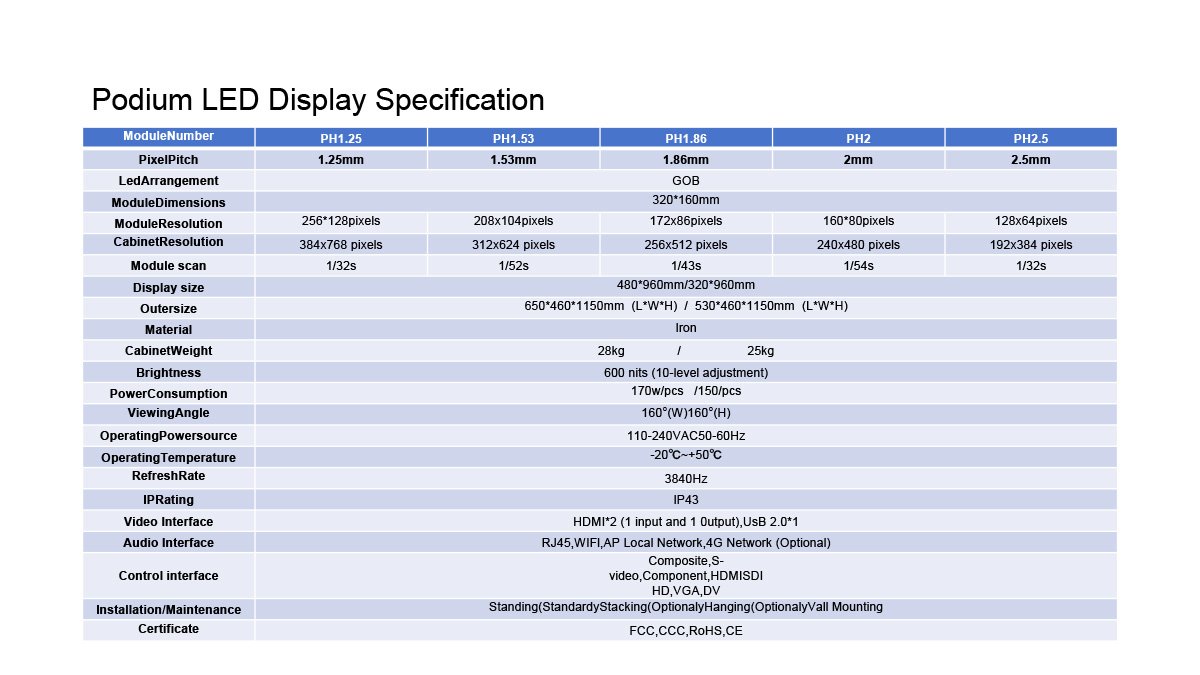

Technical Specifications
Packaging & Shipping
| Shipping Terms | CFR by Sea / FOB by Air |
| Packaging | Custom flight case or reinforced wooden crate |
| Packaging Configuration | 1-in-1 (one lectern per case) |
| Lead Time | In stock (backorders accepted) |
Warranty & Guarantee
- No-Risk Money Back Guarantee
- Hassle-Free Refund Policy
- Secure Payment Processing
- 2-Year Standard Warranty on LED modules, control system, and power supply
- Lifetime Technical Support via email and remote diagnostics
