Command Center
Flat
LED Video Wall
A high-resolution command center flat LED video wall display engineered for mission-critical command & control rooms, and security operations. Features ultra-fine pixel pitch for sharp data visualization, >3840Hz refresh rate, 24/7 industrial-grade reliability, and ultra-slim cabinet design for space-saving installation.
Control Room Integration & Deployment
Watch the Command Center Flat LED Display in action — from ultra-slim cabinet mounting to 24/7 continuous operation in mission-critical environments.
Have questions? Contact our engineering team for a site visit.
Downloads & Technical Resources
Engineering specifications, structural drawings, and technical documentation.
Get In Touch
Have questions? Reach out to our engineering team directly.
We respond to all inquiries within 24 hours.
Ultra-Fine Pitch Command Center Flat LED Video Wall — Seamless Splicing
Our GOB LED display series is designed for 24/7 continuous operation in mission-critical environments such as command centers, security monitoring rooms, and traffic control hubs. The command center flat LED video wall delivers ultra-fine pixel pitch, zero-bezel seamless splicing, 3840Hz high refresh rate, and anti-glare front surface for precise data readability from any angle. With robust industrial-grade components, it guarantees unwavering performance when it matters most.
Ultra-Fine Pixel Pitch
Available in P0.9 to P1.8 ultra-fine pixel pitches, delivering razor-sharp data visualization and crisp, detailed imagery essential for high-resolution monitoring applications.

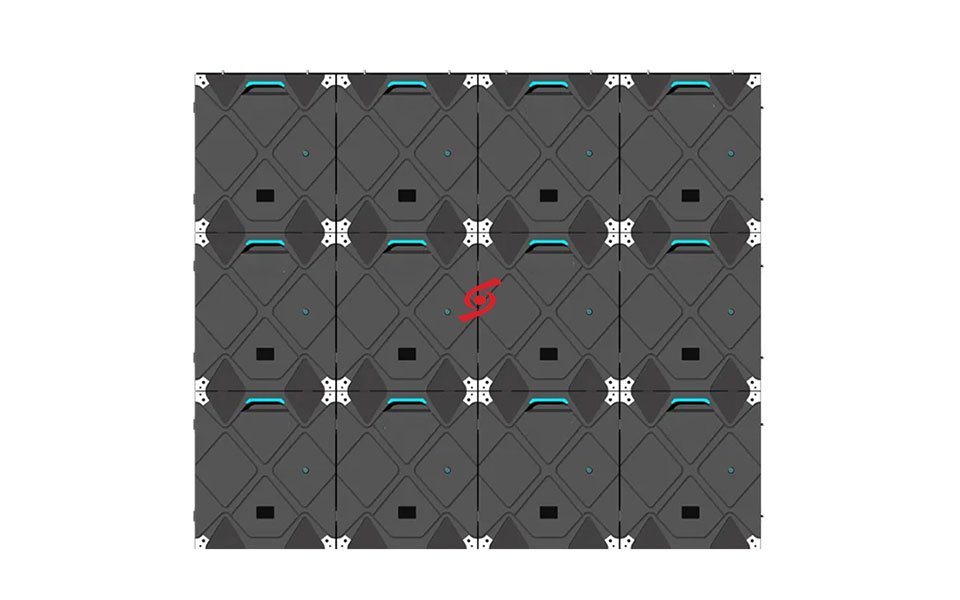

Seamless Splicing
Precision-engineered zero-bezel cabinet edges ensure flawless alignment and eliminate visible gaps, delivering a continuous, panoramic display ideal for situational awareness.

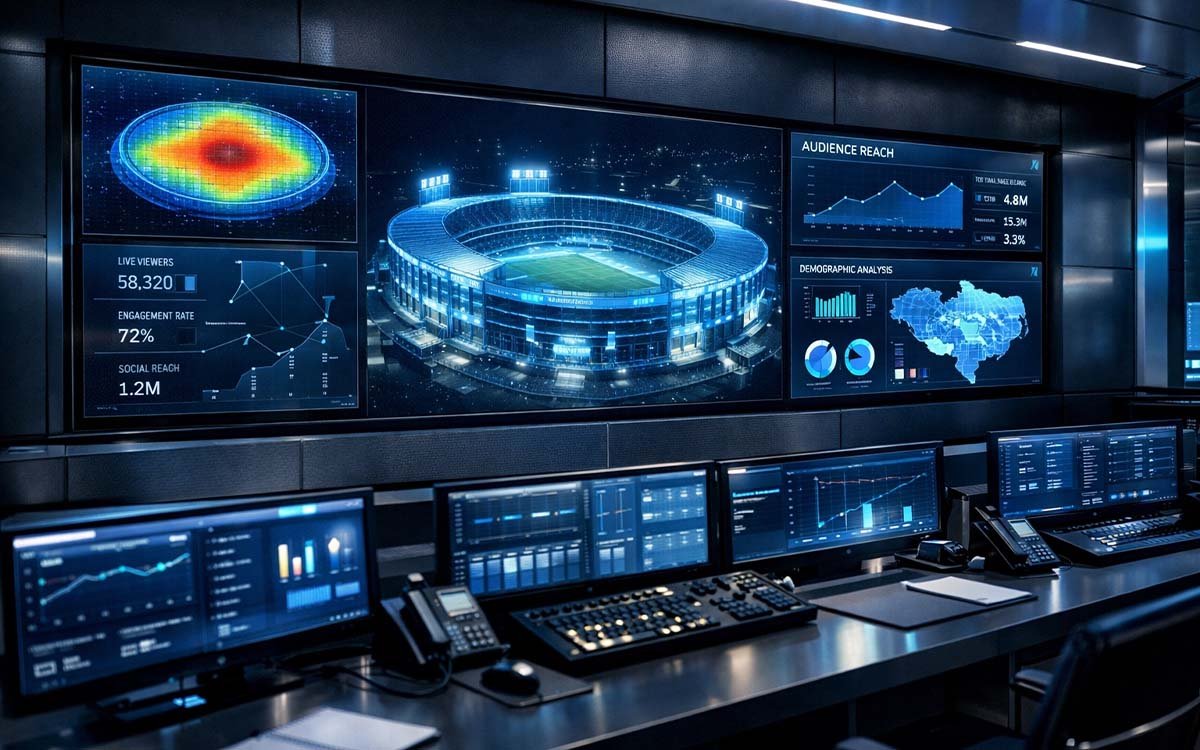

24/7 Continuous Operation
Engineered with industrial-grade power units and heat dissipation systems for reliable, uninterrupted operation in critical environments around the clock.

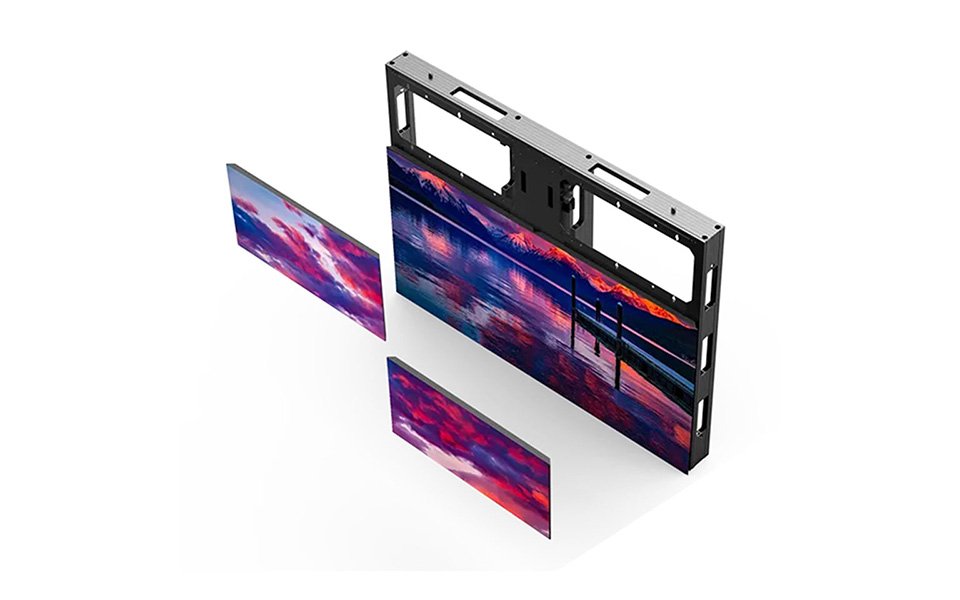

Ultra-Thin Slim Design
Ultra-slim lightweight cabinets (≤ 45mm) reduce structural load and save valuable backroom space in control rooms, making installation simple and flexible.

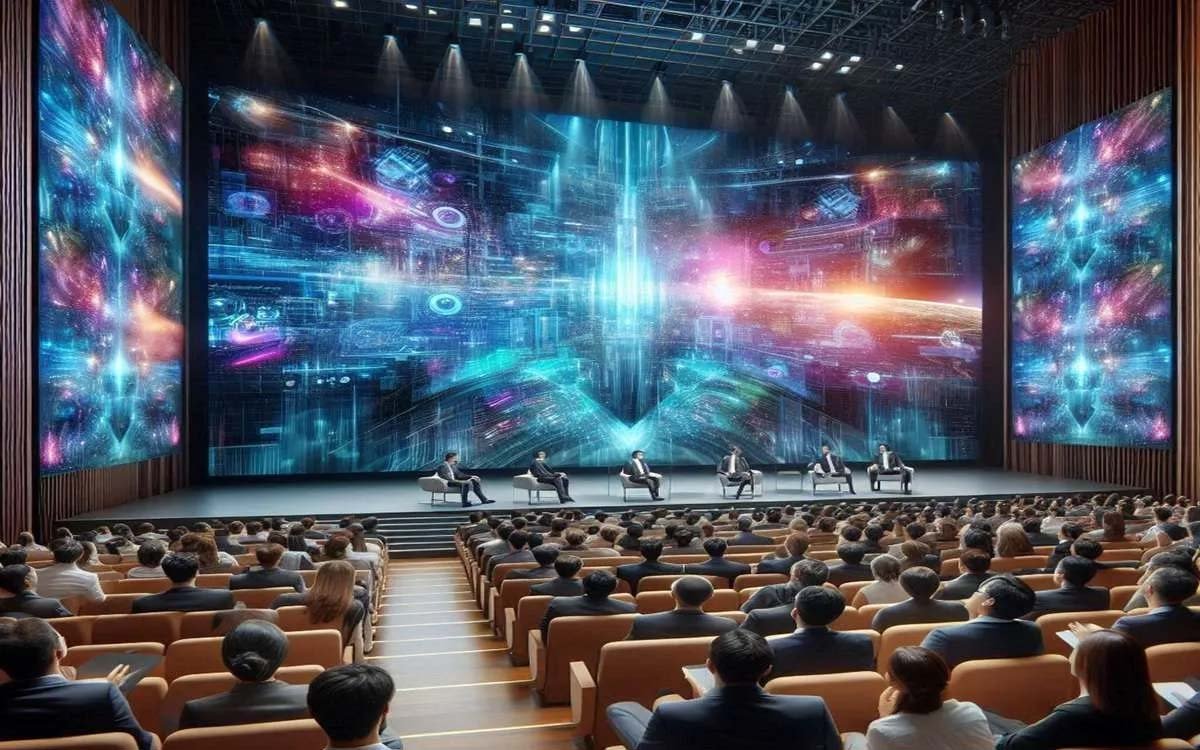

Complete Command Center Broadcast Video Wall Solution
Our Command Center Flat LED Video Wall Display integrates seamlessly into complex control room architectures, providing operators with a comprehensive situational awareness platform:
- Signal Management: Seamless integration with multi-screen controllers, video matrix switchers, and KVM systems for real-time data feeds and signal routing.
- Redundant Design: Dual power supply and data backup options guarantee zero downtime, ensuring absolute continuity for critical operations.
- Service & Support: On-site engineering training, maintenance programs, and 24/7 emergency technical support for mission-critical command center installations.
Ultra-fine Pixel Pitch Video Wall Display — Technical Specifications
Available in ultra-fine pixel pitches from P0.9 to P1.8 to match your command center viewing distances. Zero-bezel design, 3840Hz refresh rate, and industrial-grade reliability ensure superior situational awareness. Fully customizable dimensions and control system integrations available upon request.
| Parameter | LW-IF Series | LW-IF Series | LW-IF Series | LW-OF Series | LW-OF Series |
|---|---|---|---|---|---|
| Pixel Pitch | 0.83 mm | 1.04 mm | 1.25 mm | 2.6 mm | 2.97 mm |
| Module Size | 200×225 mm | 200×225 mm | 200×225 mm | 250×250 mm | 250×250 mm |
| Module Resolution | 240*270 dots | 192*216 dots | 160*180 dots | 96*96 dots | 84*84 dots |
| Cabinet Size | 400×450 mm | 400×450 mm | 400×450 mm | 500×500 mm | 500×500 mm |
| Cabinet Resolution | 480*540 dots | 480*540 dots | 480*540 dots | 192*192 dots | 168*168 dots |
| Brightness | 500-800 nits | 500-800 nits | 500-800 nits | 4,500-5,500 nits | 4,500-5,500 nits |
| Refresh Rates | 3840Hz/7680Hz* | 3840Hz/7680Hz* | 3840Hz/7680Hz* | 3840Hz/7680Hz* | 3840Hz/7680Hz* |
| Viewing Angle | H170° / V165° | H170° / V165° | H170° / V165° | H170° / V165° | H170° / V165° |
| Max. Power Consumption | 480 W/m² | 480 W/m² | 480 W/m² | 600 W/m² | 600 W/m² |
| Avg. Power Consumption | 160 W/m² | 160 W/m² | 160 W/m² | 180 W/m² | 180 W/m² |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
| Certification | CE, RoHS, FCC, ETL, EMC | CE, RoHS, FCC, ETL, EMC | CE, RoHS, FCC, ETL, EMC | CE, RoHS, FCC, ETL, EMC |
What is a command center flat LED video wall display?
A command center flat LED display is an ultra-fine pitch video wall designed for mission-critical monitoring and security operations. It features seamless splicing, 3840Hz refresh rate, and 24/7 industrial-grade reliability for uninterrupted data visualization.
Why is high pixel pitch important for command & control rooms?
Ultra-fine pixel pitch (P0.7 – P1.25) command center flat LED video wall panel provides razor-sharp clarity for data visualization. This is essential for operators to easily read live feeds, map details, and surveillance data without visual fatigue in high-stakes environments.
How does it handle 24/7 continuous operation?
Engineered with industrial-grade components, advanced heat dissipation, and redundant power supply options. Our command center flat LED video wall display panel is specifically designed to maintain stable, round-the-clock performance critical to security and emergency response operations.

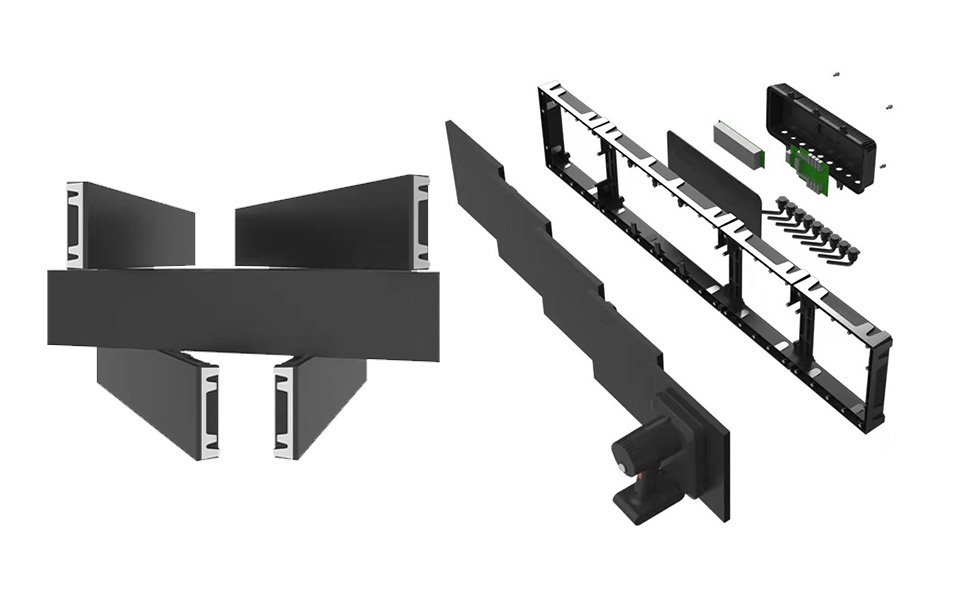

What is the typical installation method?
The installation method of the command center flat LED video wall display depends on the material and structure of the wall. Generally, the installation and seamless splicing of ultra-thin cabinets require the installation of supporting structures first, followed by the installation of modular LED cabinets, or the direct installation of modular accessories such as power supplies, control cards, LED modules, etc. Finally, program settings, color calibration, and testing are carried out.
Ready to build your intelligent command center with our LED display solutions?
Get a custom quote in 24 hours — including pixel pitch recommendation, size options, and shipping timeline.
