Command Center
Curved
LED Video Wall
An immersive command center curved LED video wall display solution engineered for command & contrl centers, sports event monitorings, and executive briefing centers. Featuring customizable curvature radius for panoramic situational awareness, smaller pixel pitches, lightweight die-casting aluminum LED panels, seamless splicing, and 24/7 industrial-grade reliability to meet the demands of critical mission operations.
Immersive Control Room Integration
Watch the Command Center Curved LED Display in action — from custom curvature mounting to seamless panoramic data visualization in mission-critical environments.
Have questions? Contact our engineering team for a site visit.
Downloads & Technical Resources
Engineering specifications, structural drawings, and technical documentation.
Get In Touch
Have questions? Reach out to our engineering team directly.
We respond to all inquiries within 24 hours.

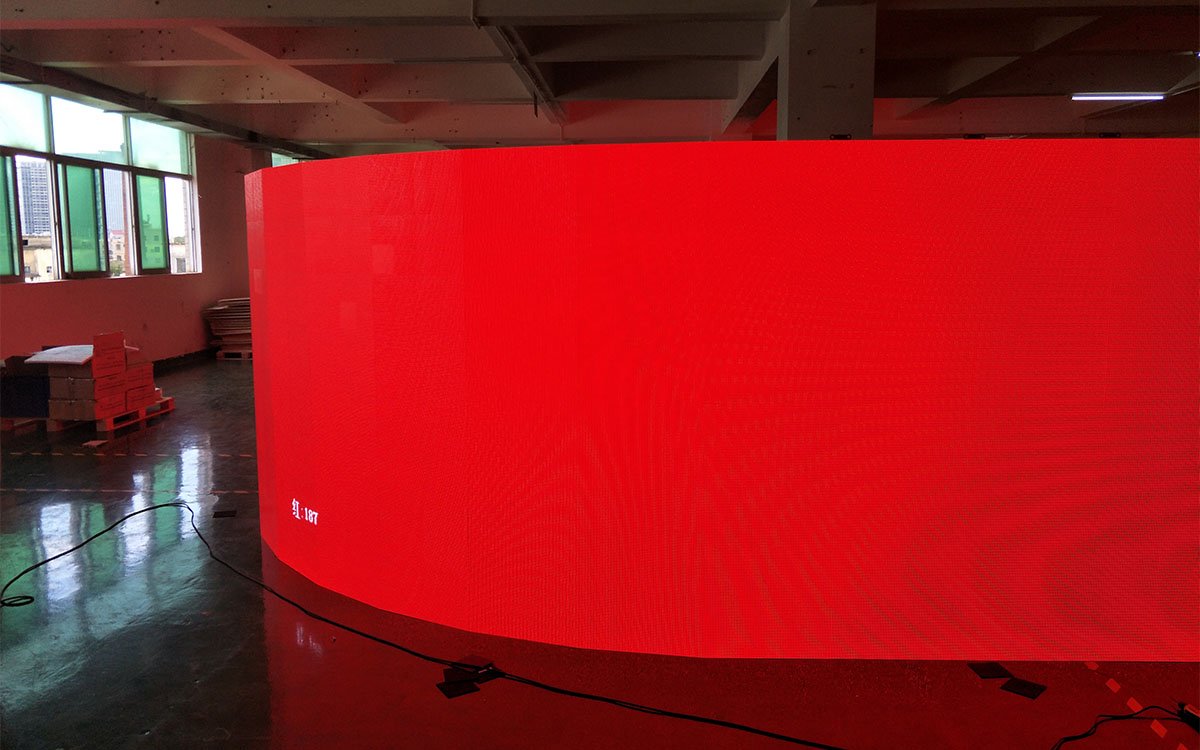

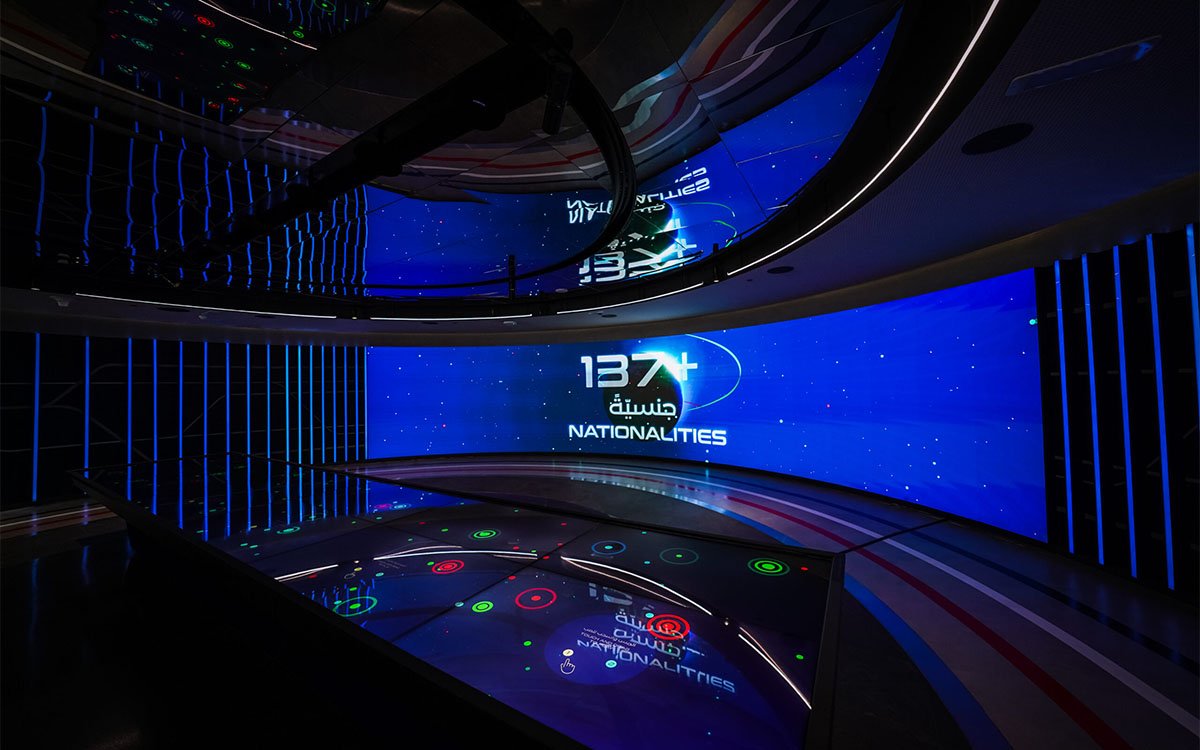

Command Center Curved LED Video Wall — Custom Radius
Designed for panoramic situational awareness in mission-critical environments such as command centers and security monitoring rooms. Our LED video wall offers customizable curvature radius, ultra-fine pixel pitch, zero-bezel seamless splicing, and 3840Hz high refresh rate. With industrial-grade components supporting 24/7 operation, it guarantees unwavering performance while providing operators with a fatigue-reducing, immersive visual experience.
Custom Curved Radius
Engineered with customizable curvature radius to perfectly fit your control room layout. Delivers a wrap-around panoramic viewing experience that reduces eye strain and enhances situational awareness.

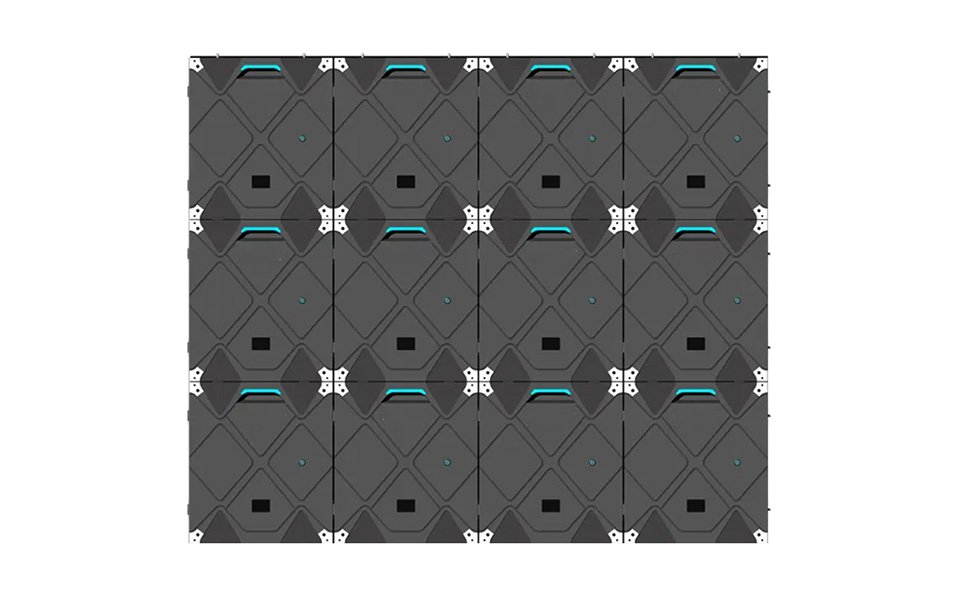

Seamless Splicing

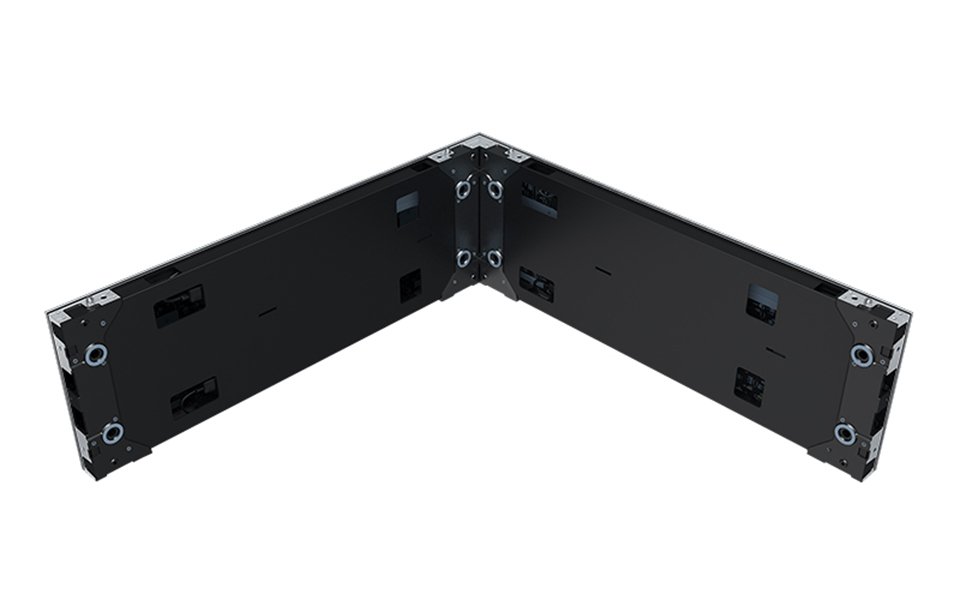

Precision-engineered zero-bezel curved cabinets ensure flawless alignment along the entire arc. Eliminates visible gaps for a continuous, uninterrupted panoramic data display.

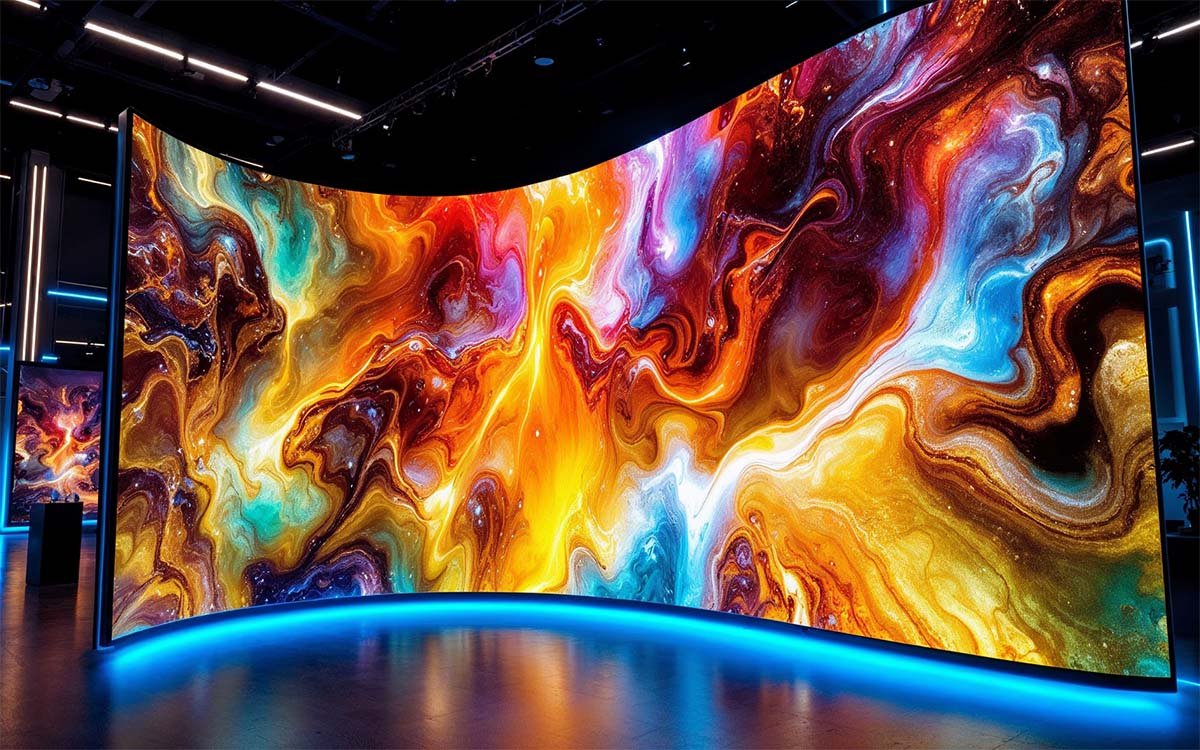

3,840Hz Refresh Rate
Ultra-high refresh rate curved large video wall ensures flicker-free data visualization and camera capture, providing crystal-clear, stable imagery essential for high-stakes monitoring tasks.

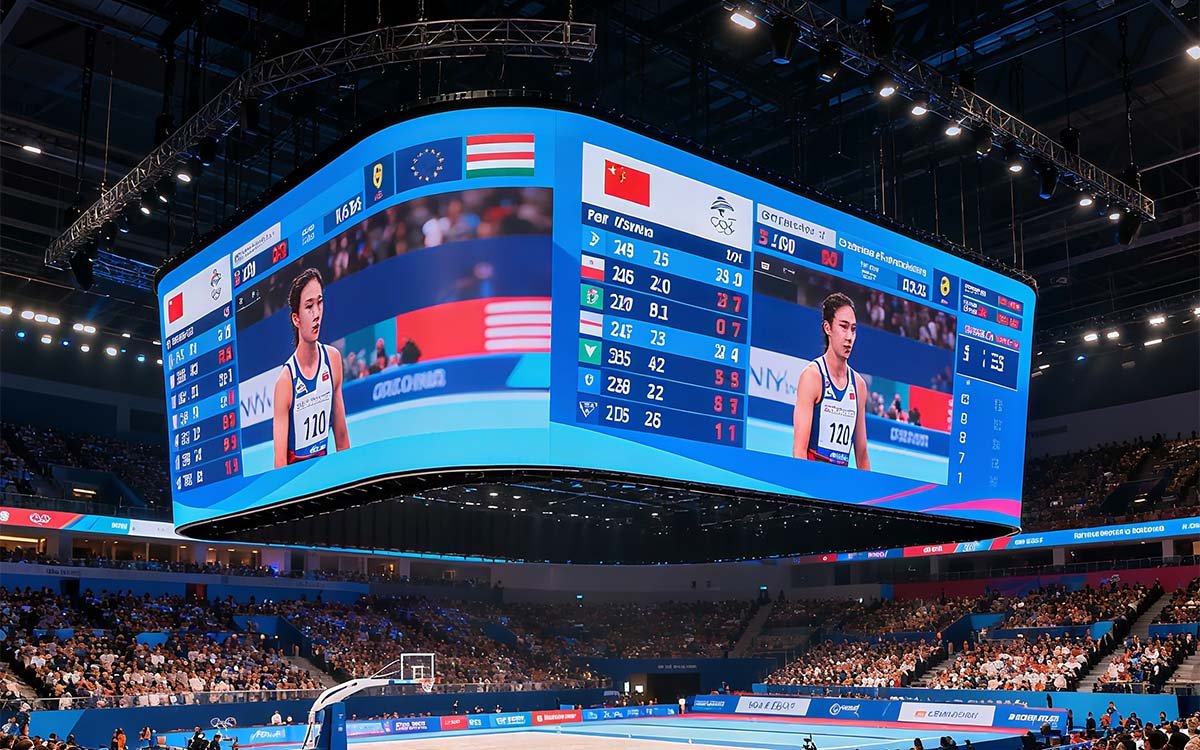

24/7 Continuous Operation
Built with industrial-grade power units, redundant design options, and advanced heat dissipation for uninterrupted, reliable round-the-clock performance in critical operations.

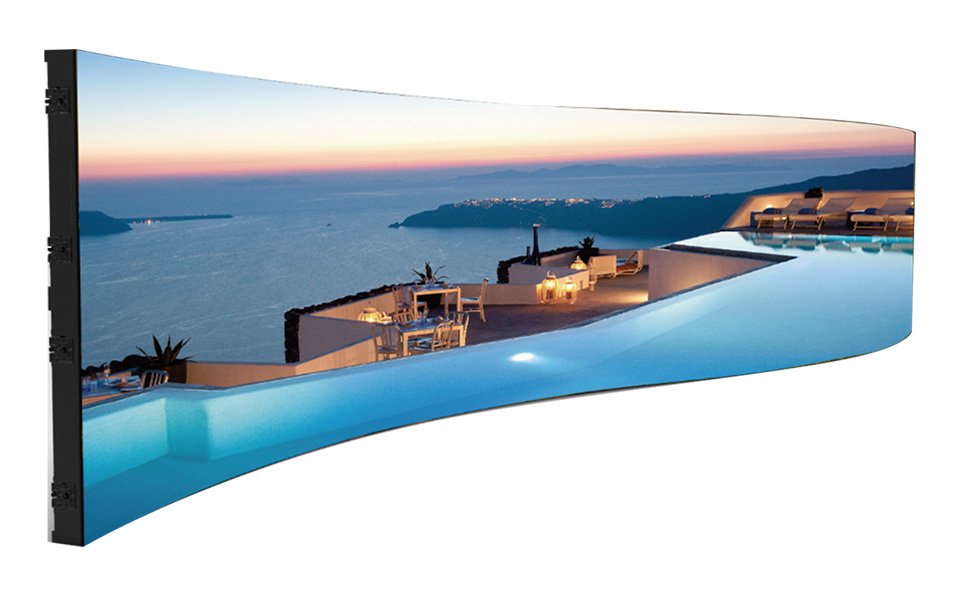

Complete Command Center Curved LED Video Wall
Our flexible lightweight LED panel integrates seamlessly into complex control room architectures, providing operators with a comprehensive panoramic situational awareness platform:
- Signal Management: Seamless integration with multi-screen controllers, video matrix switchers, and KVM systems for real-time data feeds and signal routing across the curved wall.
- Ergonomic Design: Custom tailored curvature radius matches the operator’s line of sight, delivering a fatigue-free, immersive viewing environment that boosts operational efficiency.
- Service & Support: On-site engineering training, maintenance programs, and 24/7 emergency technical support for mission-critical command center installations.
Curved Splicing LED Video Wall Cabinet — Technical Specifications
For both indoor & outdoor command center curved LED video wall apllications, available in ultra-fine pixel pitches from P0.8mm to P2.97mm and customizable curvature radius to match your command center layout. Zero-bezel design, more than 3840Hz refresh rate, and industrial-grade reliability ensure superior panoramic situational awareness. Fully customizable dimensions and control system integrations available upon request.
| Parameter | LW-IF Series | LW-IF Series | LW-IF Series | LW-OF Series | LW-OF Series |
|---|---|---|---|---|---|
| Pixel Pitch | 0.83 mm | 1.04 mm | 1.25 mm | 2.6 mm | 2.97 mm |
| Module Size | 200×225 mm | 200×225 mm | 200×225 mm | 250×250 mm | 250×250 mm |
| Module Resolution | 240*270 dots | 192*216 dots | 160*180 dots | 96*96 dots | 84*84 dots |
| Cabinet Size | 400×450 mm | 400×450 mm | 400×450 mm | 500×500 mm | 500×500 mm |
| Cabinet Resolution | 480*540 dots | 480*540 dots | 480*540 dots | 192*192 dots | 168*168 dots |
| Brightness | 500-800 nits | 500-800 nits | 500-800 nits | 4,500-5,500 nits | 4,500-5,500 nits |
| Refresh Rates | 3840Hz/7680Hz* | 3840Hz/7680Hz* | 3840Hz/7680Hz* | 3840Hz/7680Hz* | 3840Hz/7680Hz* |
| Viewing Angle | H170° / V165° | H170° / V165° | H170° / V165° | H170° / V165° | H170° / V165° |
| Max. Power Consumption | 480 W/m² | 480 W/m² | 480 W/m² | 600 W/m² | 600 W/m² |
| Avg. Power Consumption | 160 W/m² | 160 W/m² | 160 W/m² | 180 W/m² | 180 W/m² |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
| Certification | CE, RoHS, FCC, ETL, EMC | CE, RoHS, FCC, ETL, EMC | CE, RoHS, FCC, ETL, EMC | CE, RoHS, FCC, ETL, EMC | CE, RoHS, FCC, ETL, EMC |
What is a command center curved LED video wall display?
A command center curved LED video wall display is a specially designed smaller pitch LED display with COB technology featuring a customizable curvature radius. It is designed for panoramic situational awareness in control rooms and offers 24/7 industrial-grade reliability.
What are the benefits of a curved display in control rooms?
A curved display offers a panoramic, wrap-around viewing experience that matches the operator’s natural field of view. This reduces eye fatigue, improves data visualization efficiency, and provides a more immersive monitoring environment.
How does it handle 24/7 continuous operation?
Engineered with industrial-grade components, advanced heat dissipation, and optional redundant power supply designs. This command center curved LED video wall display is specifically built to maintain stable, round-the-clock performance critical to security and emergency response operations.
What is the typical installation timeline?
Installation timelines for curved command center displays depend on the curvature radius and control system integration. Typically, custom curved cabinet fabrication and mounting take 3–4 weeks, followed by 1–2 weeks of signal calibration and testing.
Ready to build your curved command center with our LED display solutions?
Get a custom quote in 24 hours — including pixel pitch recommendation, curvature radius options, and shipping timeline.
