LED Display Calculator

An LED display calculator is a free online planning tool that helps you determine the optimal screen size, resolution, pixel pitch, and power requirements for your specific installation.

By inputting your viewing distance, available wall space, and application type, the calculator instantly provides:

• Recommended pixel pitch — based on minimum and maximum viewing distances
• Optimal screen dimensions — width × height that fits your space
• Total pixel count — for content resolution planning
• Cabinet quantity — how many display cabinets you need
• Estimated weight — for structural load assessment
• Approximate power consumption — for electrical planning

This eliminates guesswork in the early planning stages and ensures your LED wall meets both technical requirements and budget expectations.

Using an LED display calculator is straightforward. Follow these steps:

1. Enter your viewing distance — the calculator uses the formula: viewing distance (meters) ÷ 1,000 = recommended pixel pitch (mm). For example, a 10-meter viewing distance suggests P10 or smaller.
2. Input your available space — the maximum width and height of your installation area
3. Select your application — indoor, outdoor, retail, stadium, control room, etc.
4. Choose your content type — video, text, images, or mixed content

The calculator then generates a complete specification sheet including module quantities, total resolution, aspect ratio, approximate weight, and estimated power consumption.

When planning your LED display with a calculator, focus on these key specifications:

• Pixel pitch — determines resolution and optimal viewing distance
• Brightness — measured in nits; outdoor needs 5,000-10,000 nits
• Refresh rate — 3840Hz+ for flicker-free video playback
• Cabinet size — affects installation flexibility and maintenance access
• Power consumption — impacts electrical infrastructure requirements

Our LED display calculator automatically factors these specifications based on your application type, giving you a complete technical overview before you proceed with your order.

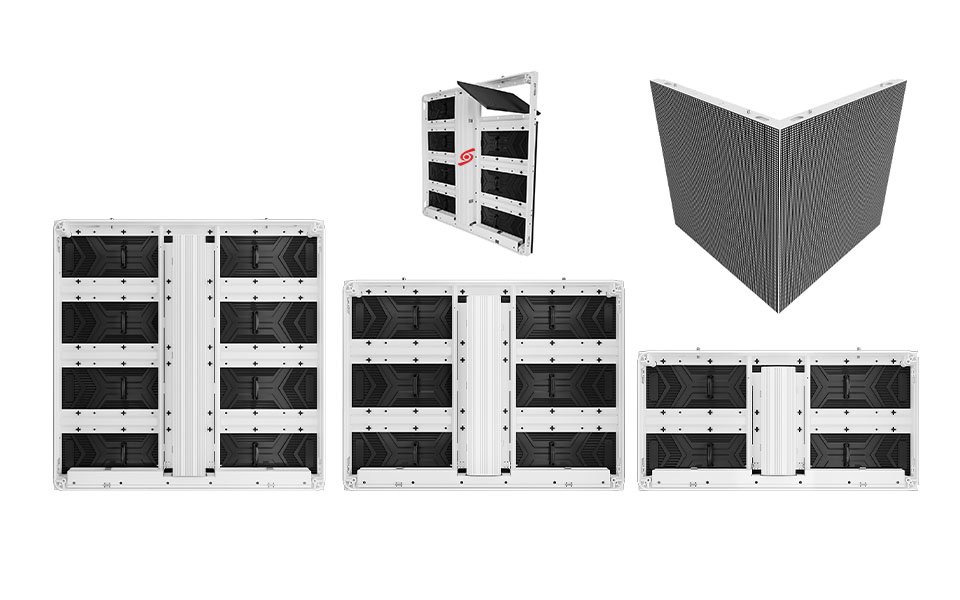

The primary differences between indoor and outdoor LED displays lie in brightness, weatherproofing, and pixel density. Outdoor displays require 5,000–10,000 nits brightness to remain visible in direct sunlight, plus IP65-rated cabinets to withstand rain, dust, and temperature extremes from -20°C to +50°C.

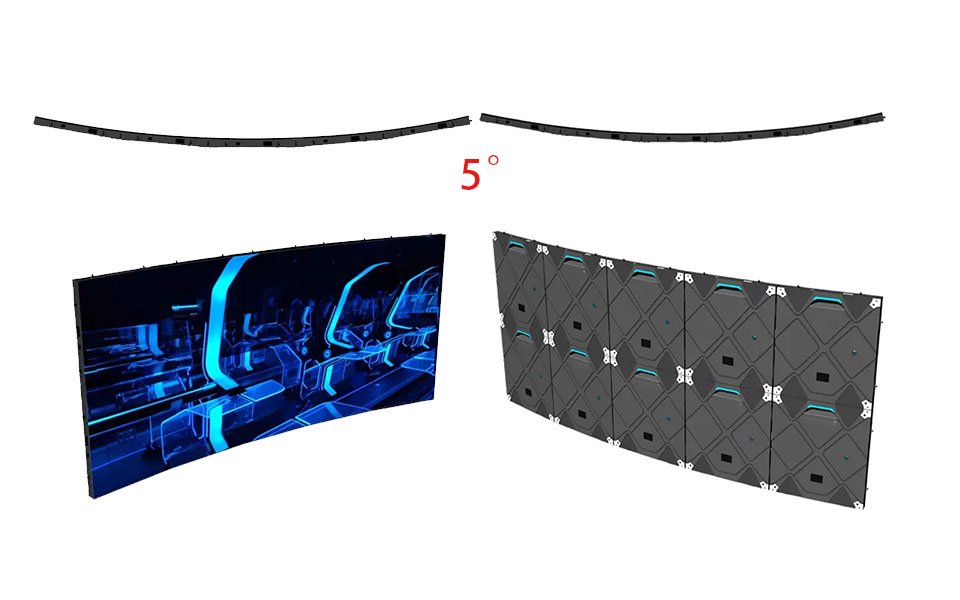

Indoor displays operate at 800–1,500 nits with finer pixel pitches for close viewing. Outdoor models also feature advanced cooling systems, UV-resistant coatings, and reinforced structural frames to handle wind loads. Both types use the same core LED technology but are engineered for completely different environmental demands.

Pixel pitch selection depends on viewing distance and content resolution. For close-viewing applications like control rooms and reception desks, choose P1.0–P2.0 mm for crisp detail. For conference rooms and retail displays, P2.5–P3.0 mm offers an excellent balance.

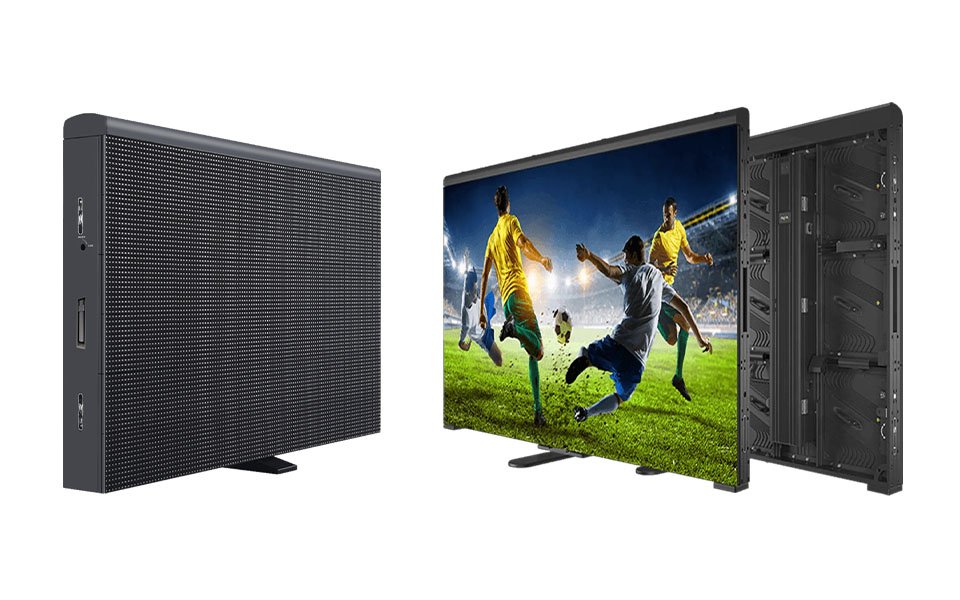

Outdoor billboards and stadium screens typically use P4.0–P10.0 mm since viewers stand farther away. A general rule: the optimal viewing distance in meters equals the pixel pitch multiplied by 1,000. Our LED display calculator can help you determine the ideal pixel pitch for your specific installation.

GOB (Glue-On-Board) is an advanced encapsulation technology that protects LED modules from moisture, dust, and physical impact. A transparent epoxy resin is applied over the LED surface, creating a durable protective layer that significantly extends the display lifespan.

Key benefits of GOB technology include: superior waterproofing (IP65 rated), enhanced impact resistance (ideal for rental and stadium applications), improved color uniformity, and reduced maintenance costs. GOB-protected modules typically last 40% longer than conventional SMD displays.

All GOB LED display products come with a standard 2-year warranty covering manufacturing defects, module failures, and power supply issues. For large-scale projects, we offer extended warranty options up to 5 years.

Warranty coverage includes free replacement of defective parts and remote technical support. For warranty claims, please contact our support team with your order number and a description of the issue. We typically respond within 24 business hours and provide RMA instructions for rapid resolution.

You can request a custom LED display solution through multiple channels:

• Fill out the project inquiry form on our website
• Email our sales team at led@soarapex.com
• Call us directly at +86-755-2324-3136

Please provide your project requirements including screen dimensions, installation environment (indoor/outdoor), viewing distance, and budget range. Our engineering team will prepare a tailored proposal with CAD drawings and technical specifications within 2-3 business days.

Yes, we offer comprehensive installation training programs for our partners and clients. Training options include:

• Remote training via video conference — covering basic installation, software configuration, and troubleshooting
• On-site training — our engineers visit your location for hands-on guidance (available for orders over $50,000)
• Training documentation — detailed manuals, video tutorials, and wiring diagrams provided with every shipment

All training materials are available in English, Spanish, and Chinese. Our technical support team is available 24/7 for emergency assistance and remote diagnostics via TeamViewer or AnyDesk.
