Wall Mounted
LED Poster Display
A slim, high-resolution wall mounted LED poster display designed for permanent wall installation. Mount it on any wall, plug in power — your campaign starts in seconds. No tools. No technicians. Built for retail, corporate lobbies, and hospitality environments that demand premium visual impact with GOB LED technology.
Product Video
Watch the Wall Mounted LED Poster Display in action — installation, setup, and real-world applications.
Have questions? Contact our team for a live demo.
Downloads & Resources
Spec sheets, brochures, and technical documentation for the Wall Mounted LED Poster Display.
Get In Touch
Have questions about the Wall Mounted LED Poster Display? Reach out to our team directly.
We respond to all inquiries within 24 hours.
Wall Mounted LED Poster Display — Key Features
What sets the Wall Mounted LED Poster Display apart from conventional digital signage — slim profile, seamless splicing, and plug-and-play installation. Engineered for permanent wall installation and real-world durability with GOB LED technology at its core.

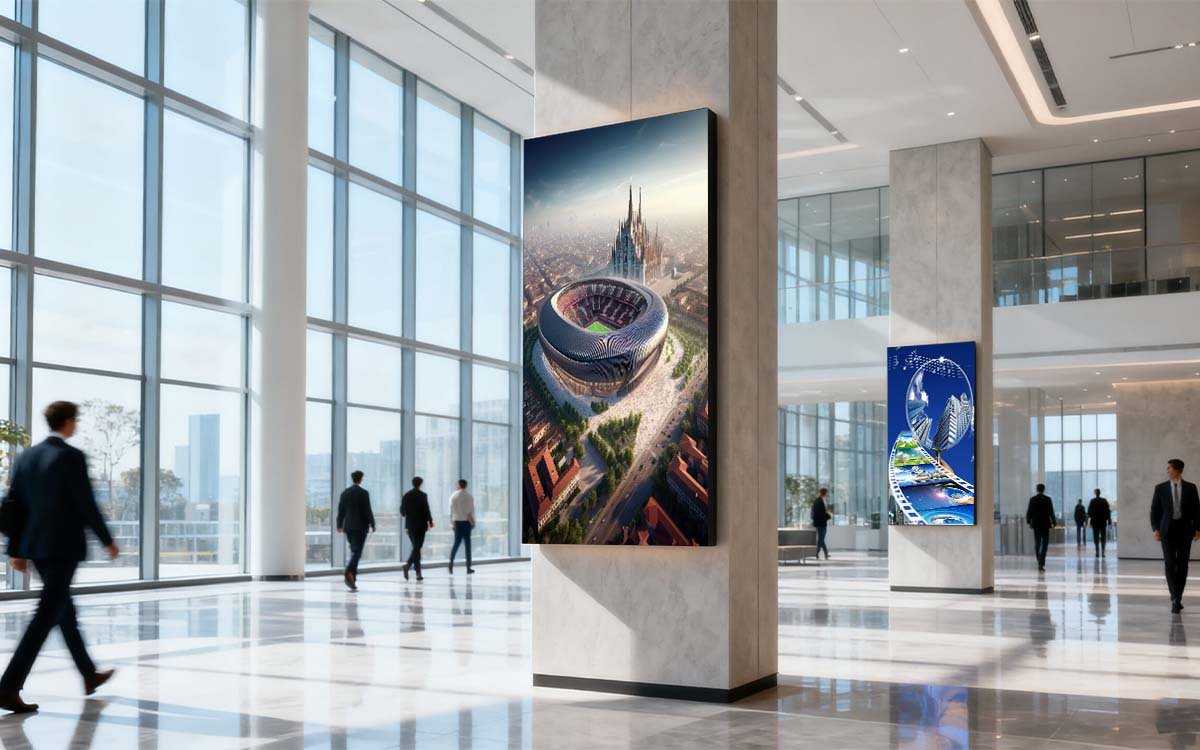

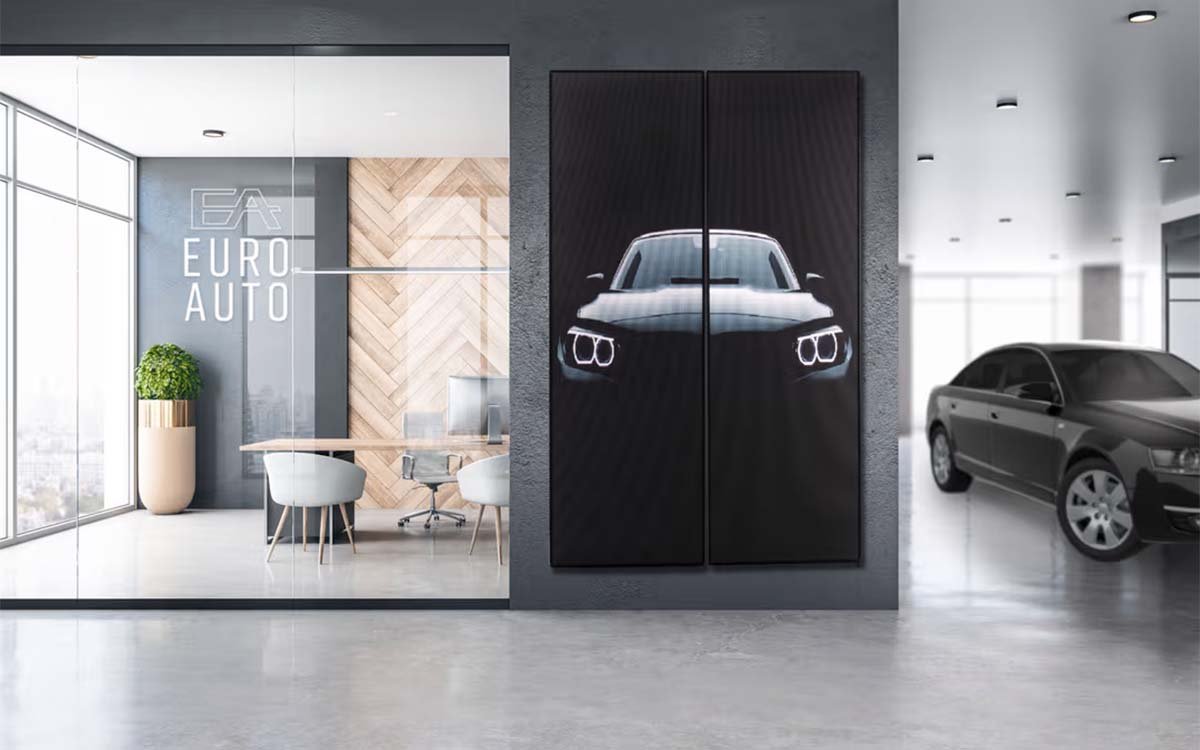

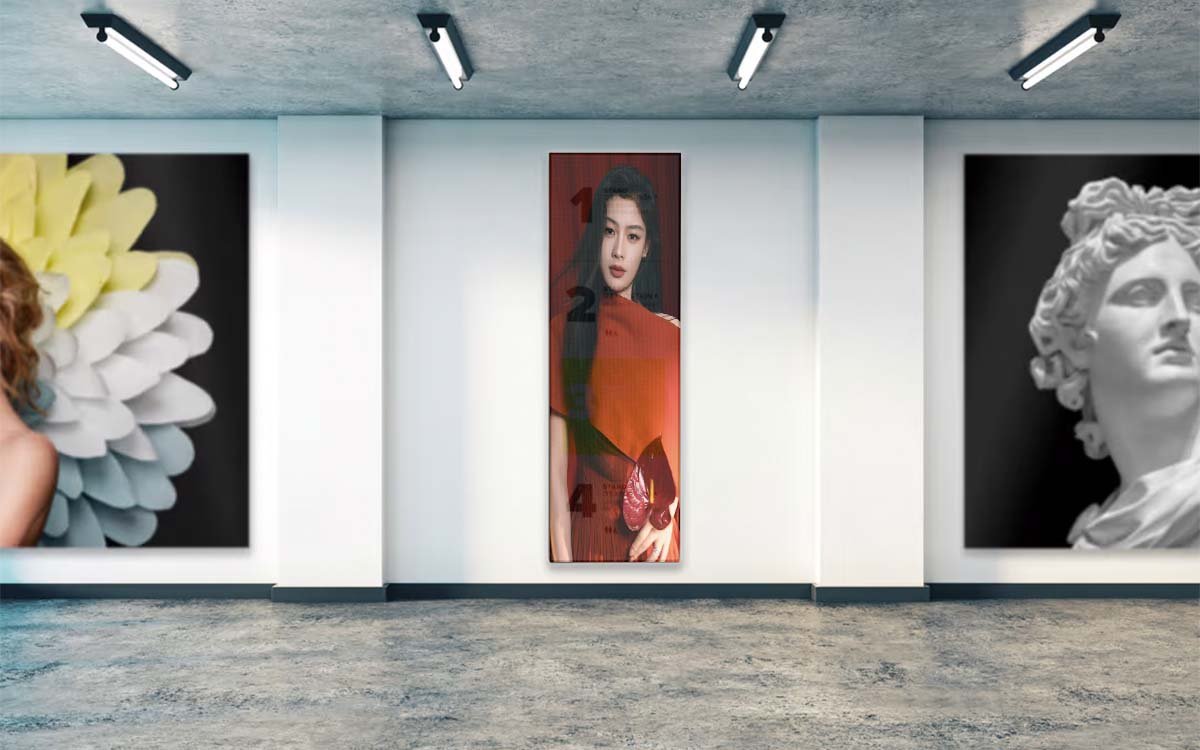

Where the Wall Mounted LED Poster Screen Excels
Suggested deployments across industries — not hypothetical scenarios. See how digital signage transforms retail, corporate, and hospitality environments. The wall mounted LED poster display is recommended to specify the installation environment (indoor/outdoor), viewing distance (determining pixel pitch P value), screen ratio (vertical/horizontal/strip), and brightness requirements to ensure compatibility with the actual scene.
Complete Technical Specifications
Wall mounted LED poster display is a commercial display terminal that adopts small Pixel pitch LED direct display technology, designed for vertical or long composition, achieving space saving and high brightness visibility through wall mounted installation. Its core features include high brightness self-luminous, ultra-thin wall fitting, modular seamless splicing, and intelligent environment adaptation.
| Parameter | AIO-PM-M P1.8 | AIO-PM-M P1.9 | AIO-PF-L P1.5 | AIO-PF-L P1.9 |
|---|---|---|---|---|
| Pixel Pitch | 1.86 mm | 1.95 mm | 1.56 mm | 1.95 mm |
| Screen Resolution | 688 × 800 dots | 640 × 640 dots | 640 × 1,440 dots | 512 × 1,152 dots |
| Display Size | 1,280 × 1,600 mm (H×L) | 1,280 × 1,600 mm (H×L) | 1,000 × 2,250 mm (H×L) | 1,000 × 2,250 mm (H×L) |
| LED Poster Dimension | L1,300 × W390 × H1,930 mm | L1,300 × W390 × H1,930 mm | L1,000 × W390 × H2,750 mm | L1,000 × W390 × H2,750 mm |
| Brightness | 600 – 1,200 nits | |||
| Refresh Rate | 3,840 Hz (flicker-free for camera) | |||
| IP Rating (Front) | IP54 — GOB sealed | |||
| Input Voltage | AC 110-220V, 50/60Hz | |||
| Max Power | 500 W | |||
| Total Weight | 46 kg (including stand base) | 58 kg (including stand base) | 52 kg (including stand base) | 68 kg (including stand base) |
| Setup Time | Under 1 minute — single person | |||
| Connectivity | Wi-Fi / 4G / HDMI / USB / SD card | |||
| Control System | (AD20)+412-N | |||
| Frame Color | Black / Customized | |||
| Certification | CE, FCC, RoHs, EMC | |||
What is a wall mounted LED poster display?
A wall mounted LED poster display is a slim, high-resolution digital signage unit featuring GOB-protected LED modules designed for permanent wall installation. Mount it on any wall, plug in power — your campaign starts in seconds. No tools or technicians required. Built for retail, corporate lobbies, and hospitality environments.
How does GOB+inkjet protection benefit the LED poster?
GOB (Glue on Board) combined with inkjet protection applies a transparent protective layer over the LED modules, improving PCB appearance color while providing dust, scratch, and moisture-proof protection. Lamp bead anti-collision technology ensures durability in high-traffic environments while maintaining excellent color accuracy and brightness at 600–1,200 nits.
How quickly can I install and update content?
Physical installation is straightforward — mount the unit on any wall and plug in power. Front maintenance is tool-free via air sucker for easy access to the main control board. Content updates are fast via asynchronous control with Wi-Fi, 4G, HDMI, and USB. The built-in cloud CMS lets you push new campaigns from any device with real-time information publishing capability.
Ready to Install Your LED Poster?
Get a custom quote in 24 hours — pixel pitch recommendation, mounting options, and shipping timeline included.
